C Form Tube AFO Casting Marlo Ortiz, CPO

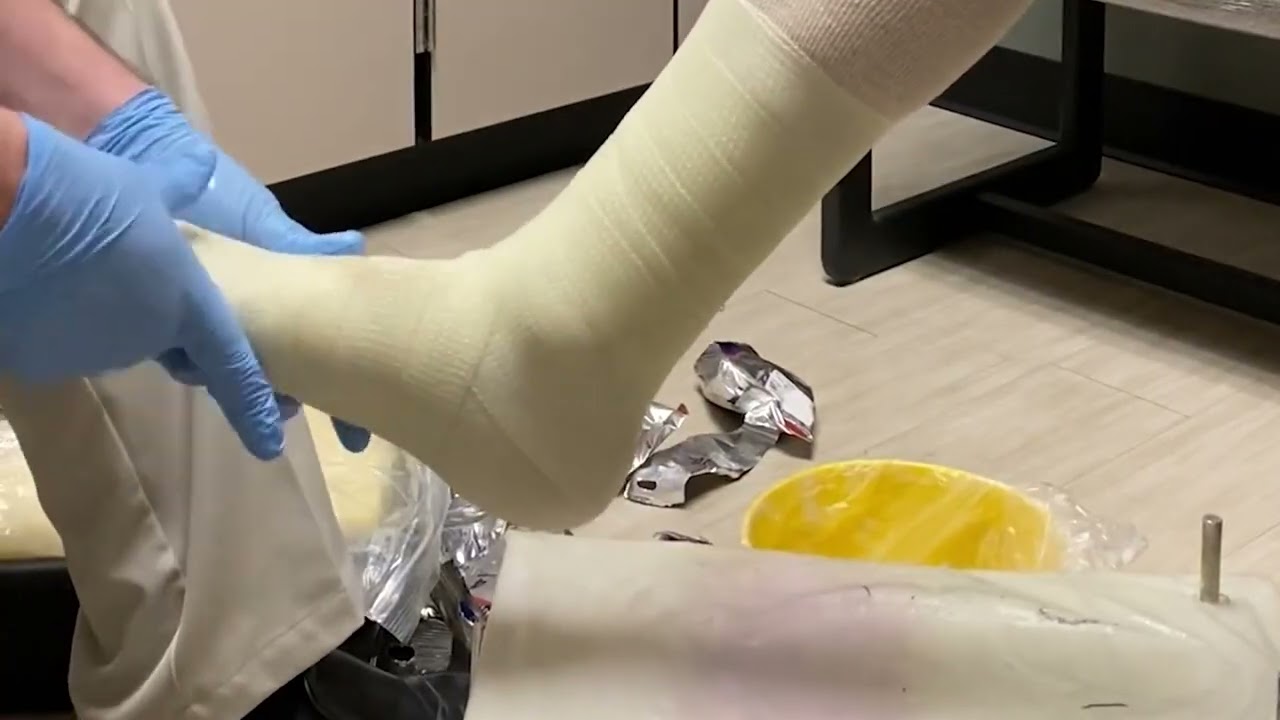

C-FORM Tube Features: Finished cast is excellent for digitizing Radiolucent – superb to see through by X-ray Available in white only Comes in 2, 3, 4, 5 inch widths, in 20” (50cm) and 28” (70cm) lengths 50cm PN: 4022-2.20 / 4022-3.20 / 4022-4.20 / 4022-5.20 70cm PN: 4022-2.28 / 4022-3.28 / 4022-4.28 / 4022-5.28 C-Form Tube Usage Instructions: Needed items: Container of water. EZ Cutter, or scissors Plastic wrap (will not stick to C-Form Tube for easier removal) Gloves Towel Cutting strip or cutting channel for orthotic casting, or unusual shapes Optional – Doff-N-Donner (Helps to conform more intimately around ankle/foot Casting Instructions: Wear gloves and have container of water ready. Apply something to cover the floor to contain the dripping water. Plastic wrap is optimal to use on the patient and put cutting strip under the plastic wrap. Unrolled tube out of the package and submerge in water. Saturate thoroughly. Lightly squeeze roll while in the water to help water penetrate – Do not to aggressively squeeze, as this will bring resin to the surface which would result in an overly tacky surface and bubbling while handling. Remove from water and lightly squeeze, or it very wet. The key is to keep the roll wet, which helps in handling the tube. Wet gloves and apply to the surface frequently, this will reduce bubbling and provide a smoother surface. Use more water than you think you would need. Taking care to not excessively stretch out the roll, apply roll onto the area you wish to capture the shape of by pulling lengthwise and twisting where the anatomy narrows down. Be sure to pinch off the distal end to correctly capture the shape, or you can use a clip, rubber band, etc. After C-Form tube is applied, a Donn N Doffer (Above) assists in contouring efficiently to ankle shape When removing, THE EZ CUTTER works best if you lay the blade to the side at a 45 degree angle. Scanning / Modeling Tips: Remove 3mm globally to compensate for the C-Form Tube material thickness. Make all necessary adjustments on the cast for optimum accuracy and minimum modification on the scanned model. More Tips: Tip #1: Frequently shape the cast to fit the patient with wet gloves for best results. Tip #2: Doff-N-Donner greatly improves ability to capture more detail around the ankle / hind foot Tip #3: C-Form tube should fully cure prior to cutting off to reduce collapsing. Tip #4: Use THE EZ CUTTER or a sharp pair of scissors when removing the cast and cut in the channel that was wrapped into the plastic. Tip #5: Use more water then you think you need to reduce bubbling and tackiness Environment: Storage Temperature Range: between temperatures of -10˚C to 50˚C [14˚F and 122˚F] Do not store in wet or very hot environment.
