How to Replace the Headlight Switch on a BMW 3 Series E90, E91, E92, E93

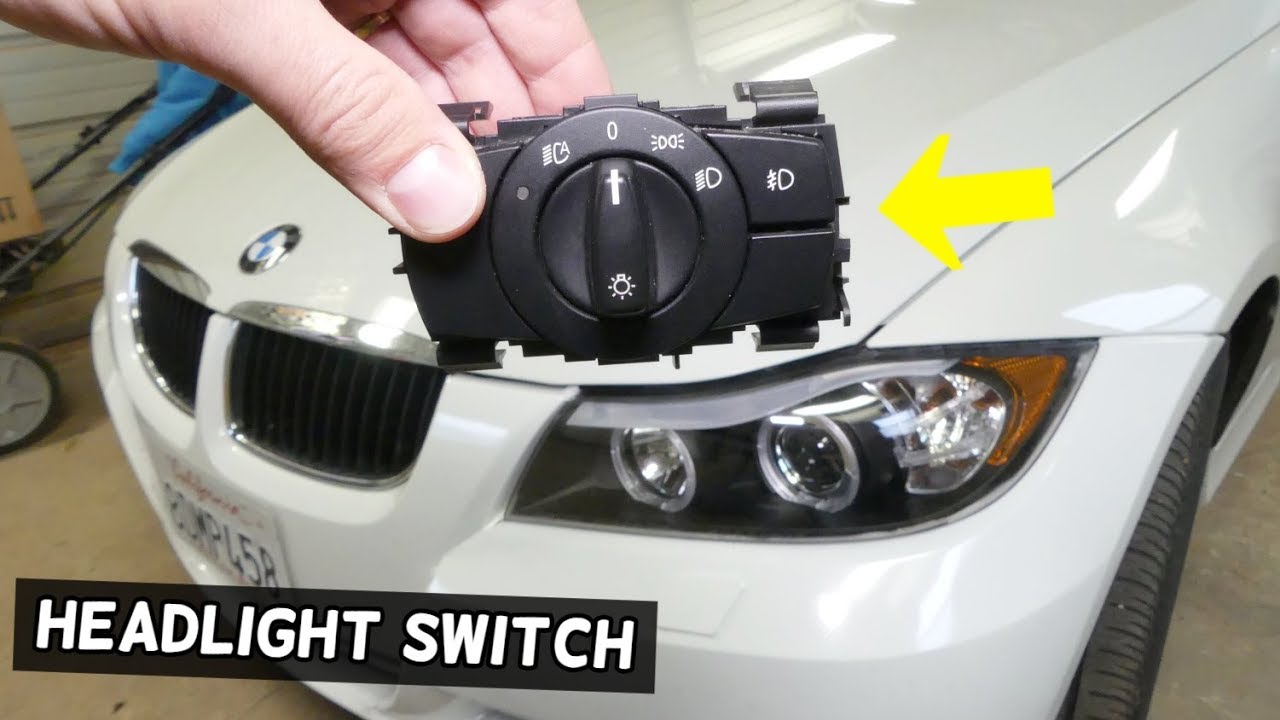

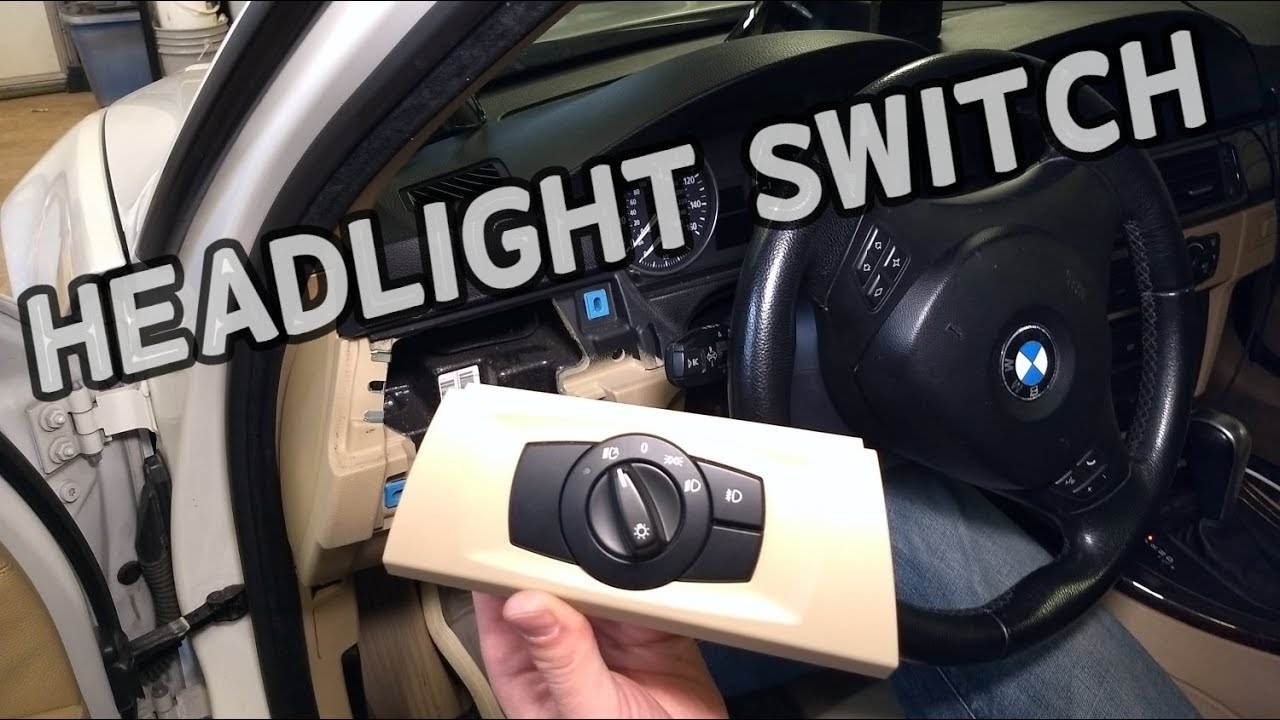

How to remove and replace your headlight switch in a BMW E90 with the European version that has the rear fog light option. Which headlight switch replacement is required for your car will depend on what trim you have, they come with both the silver and black trim on the knob. It also depends if your car has Xenon and adaptive headlights. #bmw3series #bmw335d #bmw Website: http://4diyers.com Patreon:   / 4diyers   Facebook:   / 4diyers   Twitter:   / 4diyers   Instagram:   / 4diyers   Tumblr:   / 4diyers   Pintrest:   / 4diyers   Tools/Supplies Needed: -nylon trim tool -new headlight switch Chapters: 00:00 Intro 00:25 Removal 01:36 Electrical Connector Removal Close-up 02:14 New Headlight Switch Installation 02:58 Testing the Rear Fog Lights Procedure: First start by prying out the vent trim just above the switch. There are three clips in behind, I will show you those in a moment. Take your time, don’t force it as you may risk breaking something. Once out, here you can see behind that trim panel. As you can see there are two clips on the gauge cluster side, one going into the vinyl and another one going into the blue clip. On the door side, there is only one clip that goes into a metal retainer. Now for the switch panel, this too uses the same clips. Gently pull out the panel, and use the assistance of the nylon trim tool. Once out, here you can see the retaining clips. There will be two on the gauge cluster side and one on the door side. As for removing the wire, this is very straightforward. Push down the plastic tab, then rotate the gray lever down and this will remove the electrical connector. Here is a close-up of that. Push down that tab, this will pop over the gray lever. Rotate that gray lever towards the rear of the switch panel and the connector can finally be removed. As for removing the switch from the bezel, there are four clips. Two at the bottom and two at the top. You may be able to use your fingers to push it down, however, if that does not work then use the nylon trim tool. Push each of the clips down into the switch and you will hear a click when it’s disconnected. Finally the switch can be removed. Install the new switch, and make sure it is in the correct orientation. Pushing it into place may not fully lock in these clips. While pushing the bezel and headlight switch together, use the nylon trim tool to gently pry up each of the clips. You should hear a click once it’s locked into place. As for the electrical connector, make sure the gray lever is perpendicular to the connector. Now push the connector into place, rotate that lever up, and push it past the lock-in tab. Push the switch panel into place. Now finish up installing the vent trim. The new switch can be tested. oddly enough there are no other modifications required such as coding or even installing lightbulbs, these cars are ready to go after the switch has been installed. Here is a test during the day, the rear fog lights are under the reverse lights. Rear fog lights are intended for driving in bad weather such as foggy or snowy conditions. This will improve your safety, allowing motorists to spot you quickly. Now test at night, as you can see these are quite bright. These are equipped with a small halogen bulb from the factory. I may try to upgrade these to LED in the future. On the gauge cluster, you can also see there is now a light to indicate when your rear fog lights are on. This will be shown by an orange lamp indicator. The green lamp indicator is for the front fog lights. Thank you to all those who watch my videos and support my content. Don't forget to subscribe to my channel for future tutorial videos and like my video if you found it helpful. New videos are always being uploaded every week! © 4DIYers 2013 All Rights Reserved No part of this video or any of its contents may be reproduced, copied, modified or adapted, without the prior written consent of the author.
