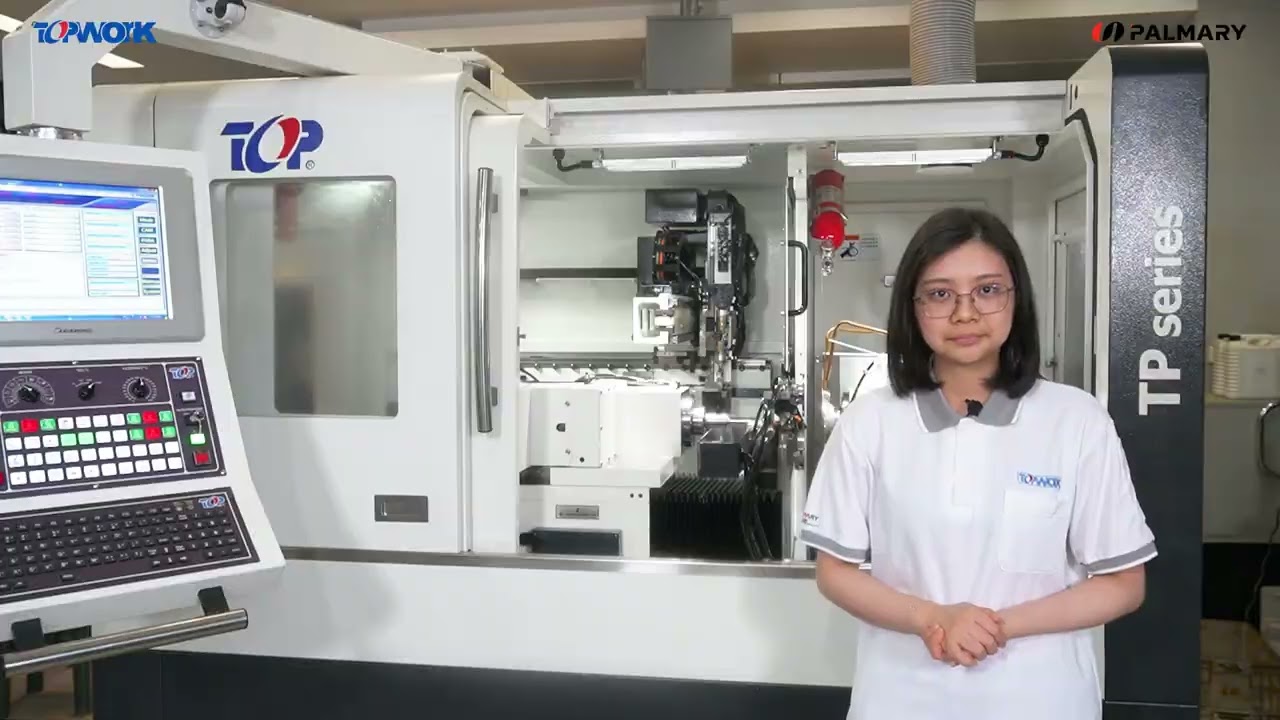

TOPWORK｜TP-4 CNC PEEL GRINDER 精密外圓段差磨床

TP-4 為 CNC 四軸精密外圓段差磨床，具有粗加工和精加工軸，適用於研磨刀具的圓柱形材料和成型沖頭，是無心研磨和五軸刀具研磨之間的研磨生產設備，適用於高精度刀具產業、模具業、電子零件及醫療零件的研磨加工。 研磨時工件借助 V 型支撐塊和壓輪支撐，連續生產的尺寸精度可控制在 4 µm，同心度小於 3 µm，最大研磨長度 330 mm，研磨直徑 0.1 – 20 mm，最大長徑比 350 倍。 雙砂輪主軸設計，粗磨與精磨加工一次完成 TP-4 CNC 四軸精密外圓段差磨床，使用夾持剝離技術研磨，具有粗加工主軸及精加工主軸，能夠同步進行研磨，在最短時間內進行大量除料並提供優良的表面光潔度。 TP-4 is a CNC four-axis precision cylindrical step grinder with roughing and finishing axes. It is suitable for grinding cylindrical materials and forming punches of tools. It is a grinding production equipment between centerless grinding and five-axis tool grinding. It is suitable for In the grinding and processing of high-precision tool industry, mold industry, electronic parts and medical parts. During grinding, the workpiece is supported by the V-shaped support block and the pressure wheel. The dimensional accuracy of continuous production can be controlled to 4 µm, the concentricity is less than 3 µm, the maximum grinding length is 330 mm, the grinding diameter is 0.1 – 20 mm, and the maximum aspect ratio is 350 times. Double grinding wheel spindle design, rough grinding and fine grinding can be completed at one time TP-4 CNC four-axis precision cylindrical step grinder uses clamping and peeling technology for grinding. It has a roughing spindle and a finishing spindle, which can grind simultaneously, remove a large amount of material in the shortest time and provide excellent surface finish. ◾ TOP-WORK INDUSTRY CO., LTD. ◽ TEL　　　 +886-4-2358-1558 ◽ Email　　　info@topworktw.com ◽ Website 　 https://www.topworktw.com ◽ Facebook　   / topworktw   ◽ Linkedin　 https://lnkd.in/gZn4YhBC ◽ Twitter 　   / topworktw   #TOPWORK #鼎維工業 #TOOLGRINDER #刀具磨床 #CylindricalGrinder #PINCH #PEEL #外圓磨床 #段差磨床 #ROBOTLOADER #FANUC #AutomaticLoadingUnloadingSystem #LoadingSystem #UnloadingSystem #PalmaryGroup
