Federal Signal "Smart" Jetsonic Lightbar Project, continued

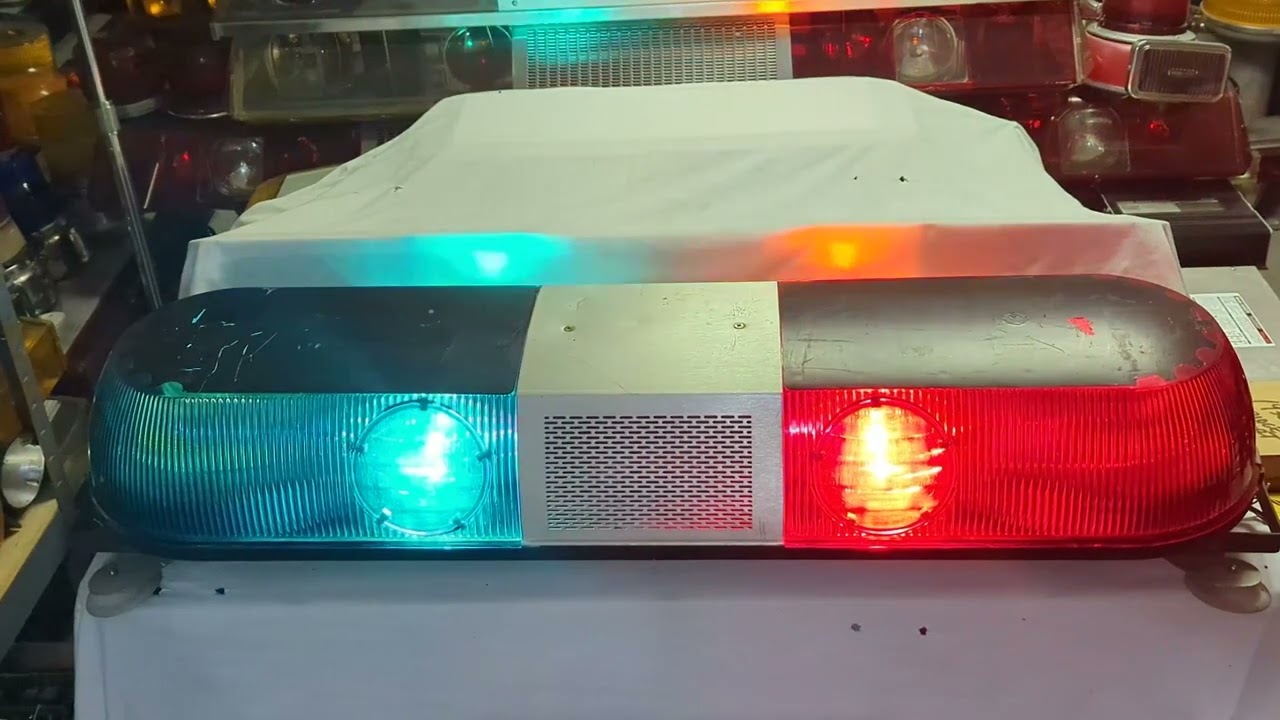

This project began with me receiving a multiplexed controller-specific version of the multifunction chain drive jetsonic. The internal electronics were bad so I set out to replicate the functions of the bar using 12vdc switching by building off the 12vdc portions with relays. The result is a bar that behaves nearly identically to the multiplexed version. This final version is a California Law Enforcement setup in red and blue with a steady burn front red and flashing rear amber. I have replaced the flashers with a simple wig wag style instead of the multipattern ones that I had on hand previously.
