DIY Synth VCO | Part 2: Designing the PCB

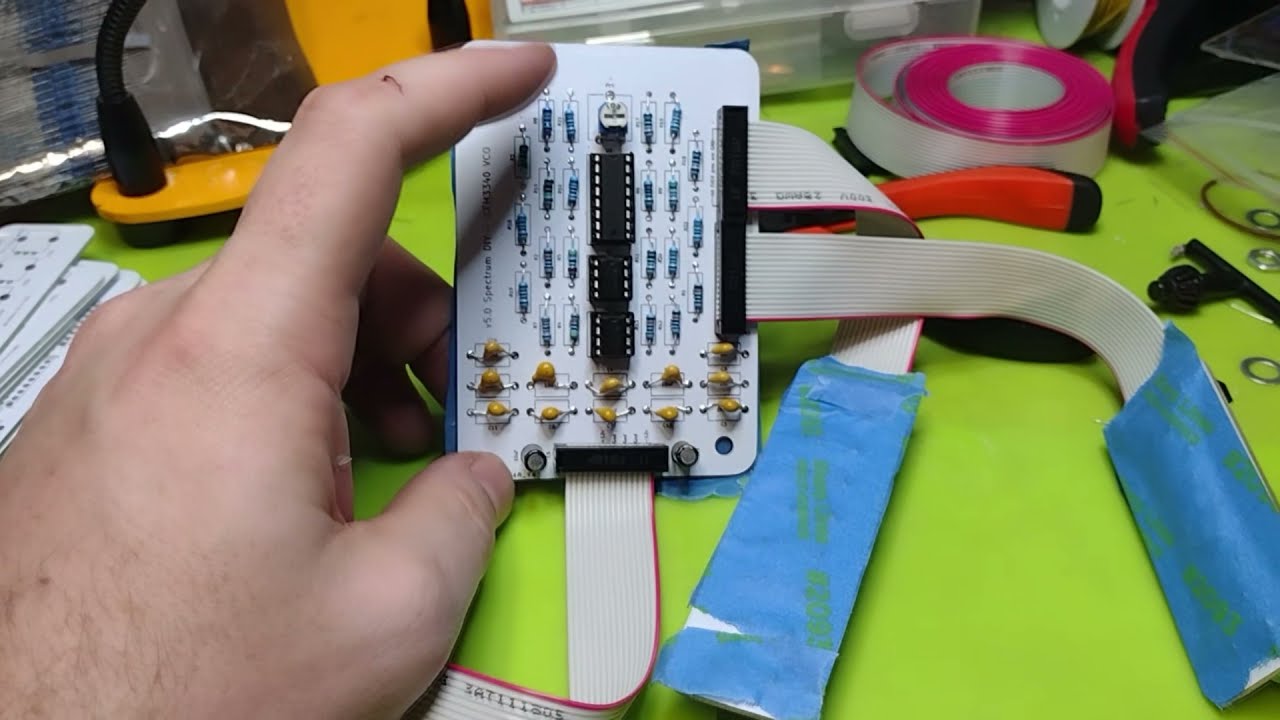

So far in the DIY VCO I've managed to lay out the ground planes front and back, route the traces and condense the board, it's been proto-typed and on the way so we'll see how it turns out! Here I'm showing the progress of the PCB design I'm working on, it was converted from the original CEM3340 stripboard design on Sam's website, further modified with advice from the members of the LMNC discourse and of course Caustic who helped quite a bit and so yeah... you should check em out! Links below, hashtags all that good stuff! My contributions are only to convert this to schematic file from stripboard picture form, I designed the PCB, I've added a eurorack power header, added 1k output resistors, power filtering and decoupling and put it into PCB form, I've also included mounting holes to make it easier to mount (no need for driilling) The original location of the CEM3340 stripboard layout that this was copied from can be found here: https://www.lookmumnocomputer.com/pro... The added Hard/Soft Sync, FM and Square wave filtering was added by Caustic, and can be found here: https://lookmumnocomputer.discourse.g... EDIT: If you want to follow the ongoing progress you can follow that here: https://lookmumnocomputer.discourse.g... I will test the board, and verify my findings once it gets here, so if you'd rather wait on the next part, that's okay too! #CEM3340 #VCO #PCBdesign #DIY #Audio #Electronics Various keywords and such Potentiometer pots pot slider fader knob knobs electrical test resistance cost cheap pro professional nice varying range 4k video verses digikey experiment testing comparison field view in action show tell tolerances unexpected results multi-meter eBay special sliders Japanese Chinese doesn't matter electronics electronic oscilloscope probe music synth vco vcf cv control voltage diy tinker workbench hd breadboard prototype how-to etching pcb drill drilling through hole solder lead tin 60/40 testing experimental experiments silkscreen toner transfer flat iron clothes iron no steam hotplate top press audio mixer lfo sync patch cables transparency paper laser jet printer kicad design super simple SpectrumDIY Spectrum DIY ham radio LED LEDs oscillator oscilloscope breadboard breadboarding keyboard arcade button teardown
