Vu-Meter 20 LEDs LM3915 - PCB TUTORIAL

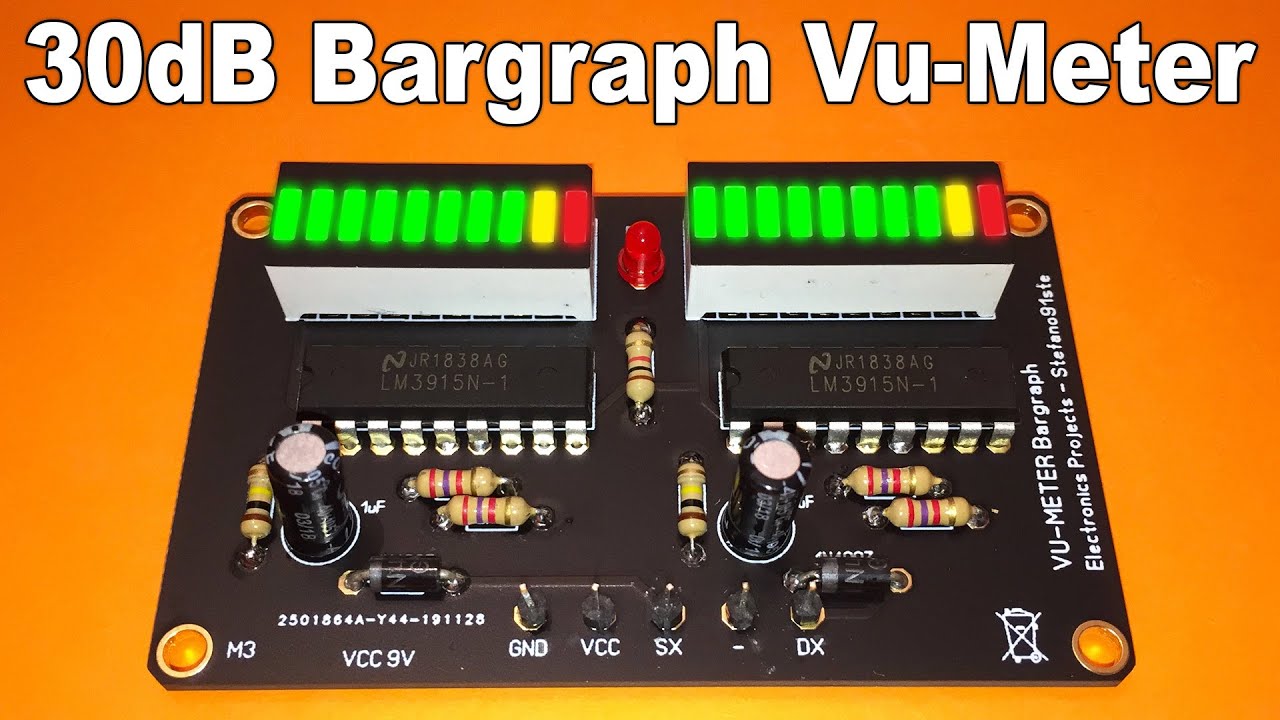

■ JLCPCB Prototype for $2(Any Color): https://jlcpcb.com This is a Vu-Meter with 20 LEDs, driven by two LM3915, the circuit has been professionally realized on a PCB (Printed Circuit Board) by the JLCPCB service. In this video I will go to assemble this Vu-Meter step by step. Assembly begins at 3:40 in the video and at 6:25 you can see the Vu-Meter test with a song. After trying the excellent service offered by JLCPCB I recommend it, the quality of the circuits is high, customer service is always available and professional, the time of realization is short and the delivery of PCBs is by express courier. JLCPCB is a great place to get hight quality custom circuit boards at an extremely low price, you can buy 10 PCB Boards for 2 Dollars. JLCPCB is the largest PCB prototype enterprise and a High-Tech manufacturer specializing in quick PCB prototype and small batch PCB production. With over 12 years of experience in PCB manufacturing, has more than 400,000 customers, with over 10,000 online orders of PCB a day. Customer service is one of the best in the world, so feel free to upload your Gerber files for file review before completely submitting your order. More About JLCPCB: https://support.jlcpcb.com/collection... Components: 20x LEDs 5mm 1x LED 3mm (PWR Led) 2x LM3915 2x DIP 18 Pin 1x 1KΩ Resistor 5x 2.7KΩ Resistors 1x 100KΩ Resistor* 1x 1uF @ 25V Electrolytic Capacitor 1x 100uF @ 25V Electrolytic Capacitor 1x 1N4007 Diode 4x Pins (+VCC GND Signal) *N.B: In the event that Led1 should remain on permanently, replace the 100K resistor with a 10K one. This circuit must be powered between 9V and 12V DC, below I leave the references to view: the electronic circuit diagram, the PCB and the Gerber file to be uploaded directly on the JLCPCB website. PCB (Printed Circuit Board): 9:12 Circuit Diagram: 9:20 Gerber Files (Ready for jlcpcb.com): https://goo.gl/Lo55tb *Don't use my PCB for profit or sponsored videos. *You can see the complete procedure to upload the Gerber file on jlcpcb.com in the video from 00:57 **JLCPCB have a Technical Support for exporting Gerber files from many software at this link: https://support.jlcpcb.com/category/2... For any other questions you can ask me for explanations in the video comments:) ■ 10 LED Model:    • How to Make a PCB Vu-Meter with LM3915   ■ 20 LED Stereo Model:    • Vu-Meter Stereo 20 LED with LM3915 PCB TUT...   ► Subscribe to my Channel:    / stefano91ste   WARNING: This video is only for demonstration. I don't take any responsibility for damage to things, people and animals. Music: Intro JLCPCB: Iron Man theme Music test: Soldiers by "Vexento" #JLCPCB #PCB #LM3915
