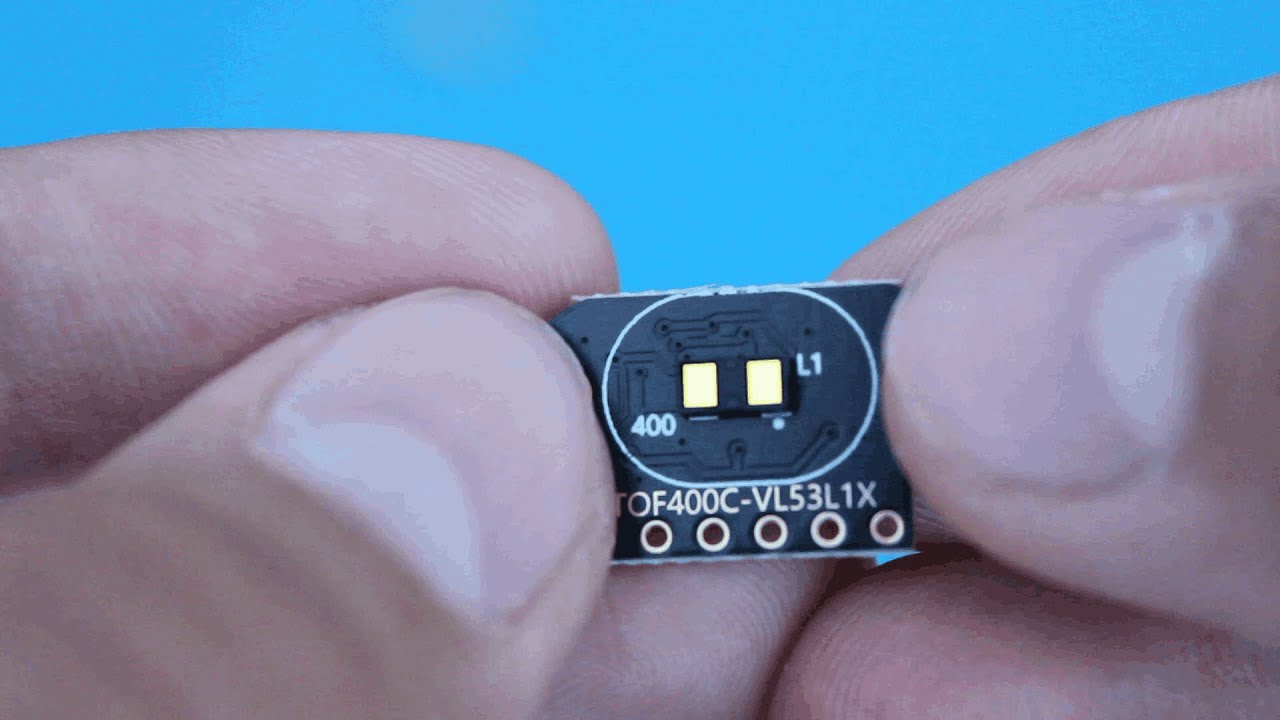

[Output Modules | Sensor Modules ]VL53L1X Time of Flight Ranging Module BML36M001

📌VL53L1X Time of Flight Ranging Module BML36M001 💻More Information: https://www.bestmodulescorp.com/BML36... 00:00 00:23 Demo Operation 00:24 00:30 VL53L1X Time of Flight Ranging Module BML36M001 00:31 00:55 Product Features 00:56 01:01 Pin Description 01:02 01:06 Hardware Overview 01:07 01:33 Getting Started 01:34 02:42 Open the Arduino IDE 02:43 03:15 Demo Operation 03:16 03:19 www.BestModulesCorp.com ✒Description The Best Modules BML36M001 is a laser ranging module, which integrates a laser ranging sensor, the VL53L1X. The module based on Time-of-Flight (ToF) technology for distance measurement, which has a measurement distance of up to 4m, it can directly output ranging data. The module can realize the functions of setting measurement mode and obtaining measurement distance by using I2C communication method through BMCOM interface. The module is suitable for use in smart shelves, drones and other products. ✒Features ◆Operating voltage: 3.1V~5.5V ◆Operating current: 19mA @ 5V ◆Standby current: 8.5μA @ 5V ◆Laser ranging sensor: VL53L1X ◆Measurement range: →Long-distance measurement mode: 40mm~4000mm →Short-distance measurement mode: 40mm~1300mm ◆Resolution: 1mm ◆Sensing field of view (Fov): 15°~27° ◆Direct output ranging data, unit: mm ◆Offset calibration function ◆Communication interface: →BMCOM×1 (INT, SCL, SDA, VCC, GND) →Communication method: I2C (address: 0x29) ◆Provide Arduino Library support 🏢 Best modules corp. 🔗NO. 3, Creation Rd. II, Science Park, Hsinchu 30077, Taiwan 🤝service@bestmodulescorp.com #LaserRangingModule #LaserRangingShield #RangingModules #Modules #BMduino-Shield #OutputModule #sensor #OutputSensor #RangingDriver #Shield #Arduino #BMduino
