FLEXIBLE Laser Cutting Machine LINECUT 3015 3Kw for Feeder Coils and Sheets Laser Cutter

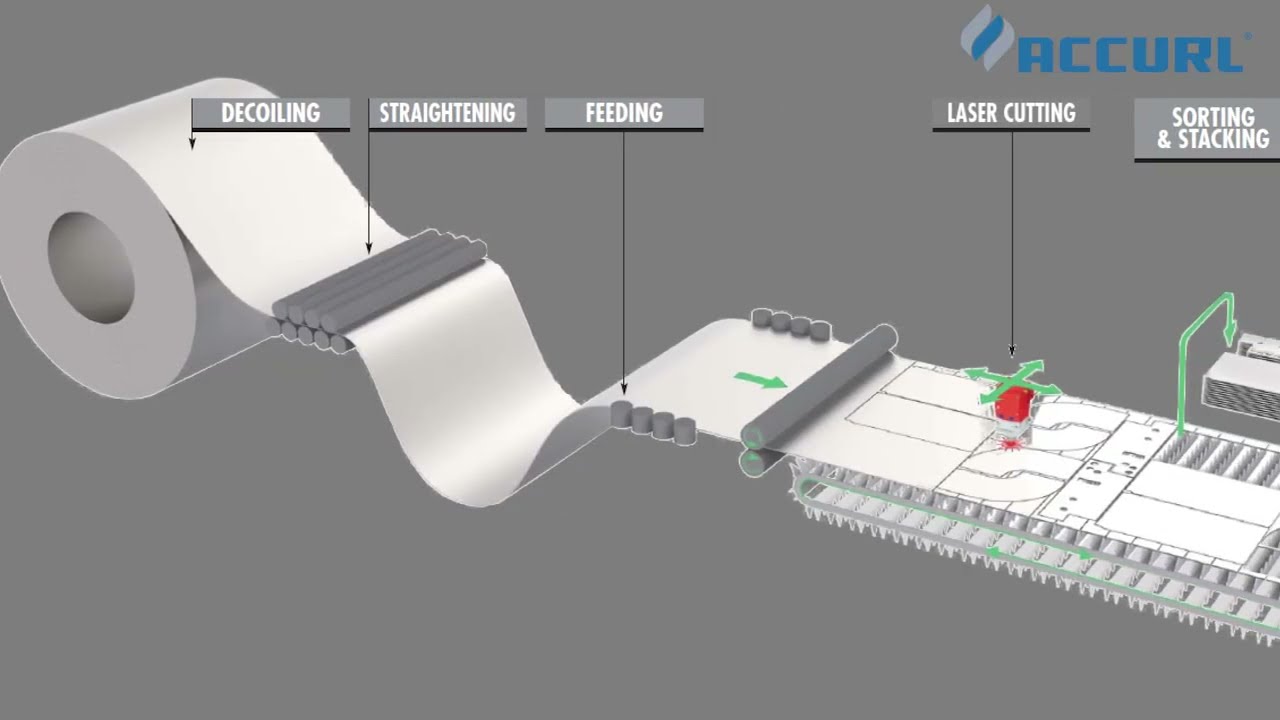

PRODUCTION BRIEF: •The automatic laser cutting system from coils and sheets model LINECUT 3015 has the most versatile setup.It processes with the maximum simplicity strips up to 1550mm in width, and sheets up to 14 meters in length with a very compact layout. •ACCURL® LINECUT Series fully automated process minimizing operator requirement and allowing continuous and unattented production. Features of the Laser System: •Working area 1500x3000mm •Machinable material: from 0.5 to 2mm gauge, up to 800 ~1500mm in width •Source by IPG Photonics Elements making up the system are: •15000kg decoiler •ACCURL feeder with Coil Car •LINECUT-3015 fiber optic laser cutting system •Fiber optic laser source from 1000W up to 4000W •Chiller cooling system •Coil lines are customized to match specific material requirements. •CypCut CAM programming/nesting software for processing coils of the same width as the product (100% material used).
