Mazak Integrex 100 IVST Mill Turn with GL50F Automation

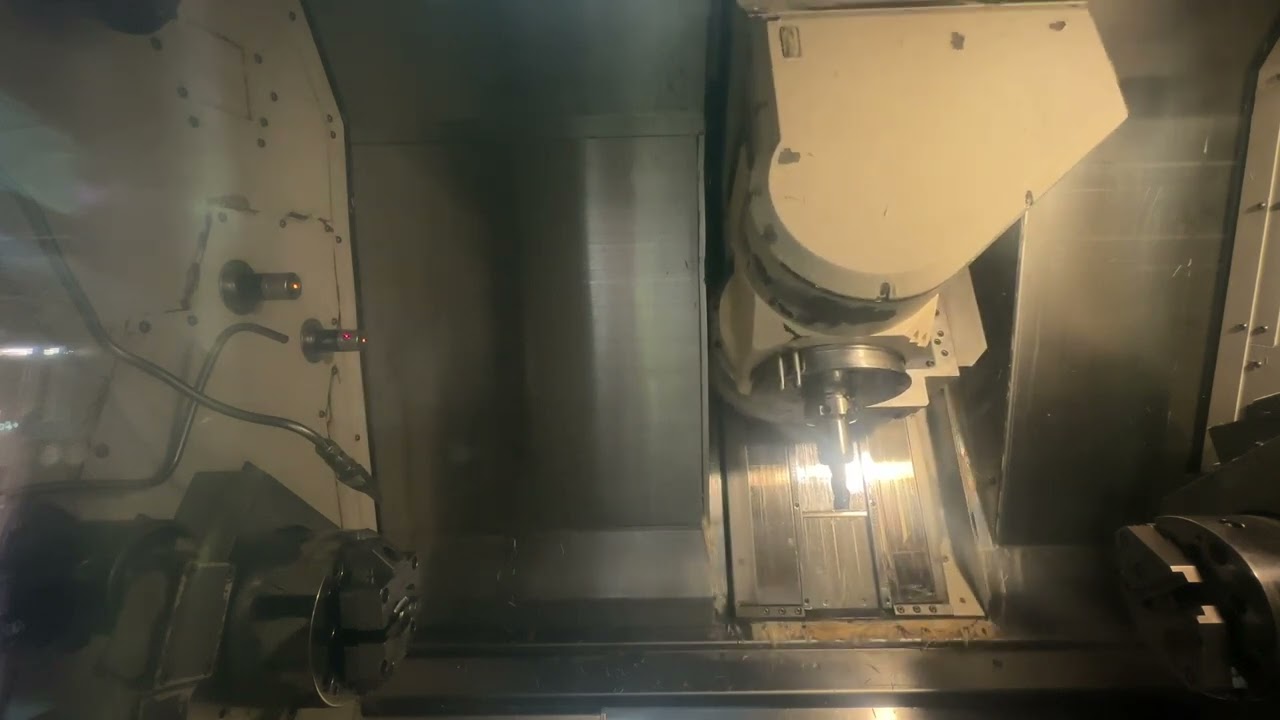

Mazak Integrex 100-IVST CNC Mill/Turn Lathe Machine Type: CNC Mill-Turn Lathe with Automation Year: 2006 Control: Mazatrol Matrix Production Hours: 43464hrs Condition: Excellent (New Sub Spindle Fitted in 2025) Includes GL50F Gantry Loader Automatic Door Selection of Tool Holders Cromar Swarf Conveyor MMS 1000 Filter System Cromar Coolant Filtration Sump Pump Fire Suppression 70 Bar High Pressure Coolant Technical Specifications Max Turning Diameter: 545mm Max Turning Length: 753mm Bar Passage: 52mm Main Spindle Drive: 11kW Main Spindle Speed: 6000rpm Spindle Nose: A2-5 Sub Spindle Drive: 11kW Sub Spindle Speed: 6000rpm Counter Spindle C Axis: 0.001° indexing Milling Spindle Drive: 5.5kW Milling Spindle Speed: 12000rpm B Axis: 225° Spindle Taper: Capto C6 X1-Axis Travel: 410 mm Y1-Axis Travel: 140 mm Z1-Axis Travel: 805 mm X2-Axis Travel: 220 mm Z2-Axis Travel: 780 mm W-Axis Travel: 790 mm ATC Stations: 40 Max Tool Length: 200mm Max Tool Diameter: 90mm Max Tool Weight: 39.2N Lower Turret: 9 Stations Coolant: 70 Bar High Pressure Coolant Machine Dimensions(excluding GL50F): 3100 x 2340 x 2140mm Machine Weight: 8,200kg GL50F Gantry Loader Specifications Cylinder Diameter: 56mm Cylinder Stroke: 33mm Max Pressure: 0.99MPa Max Loading Capacity: 49N x 2(5kgf) Loading/Offloading Conveyor Front & Rear Entry
