SMG F610 Pneumatic Flange Facing Machine - Full Installation & Setup Guide

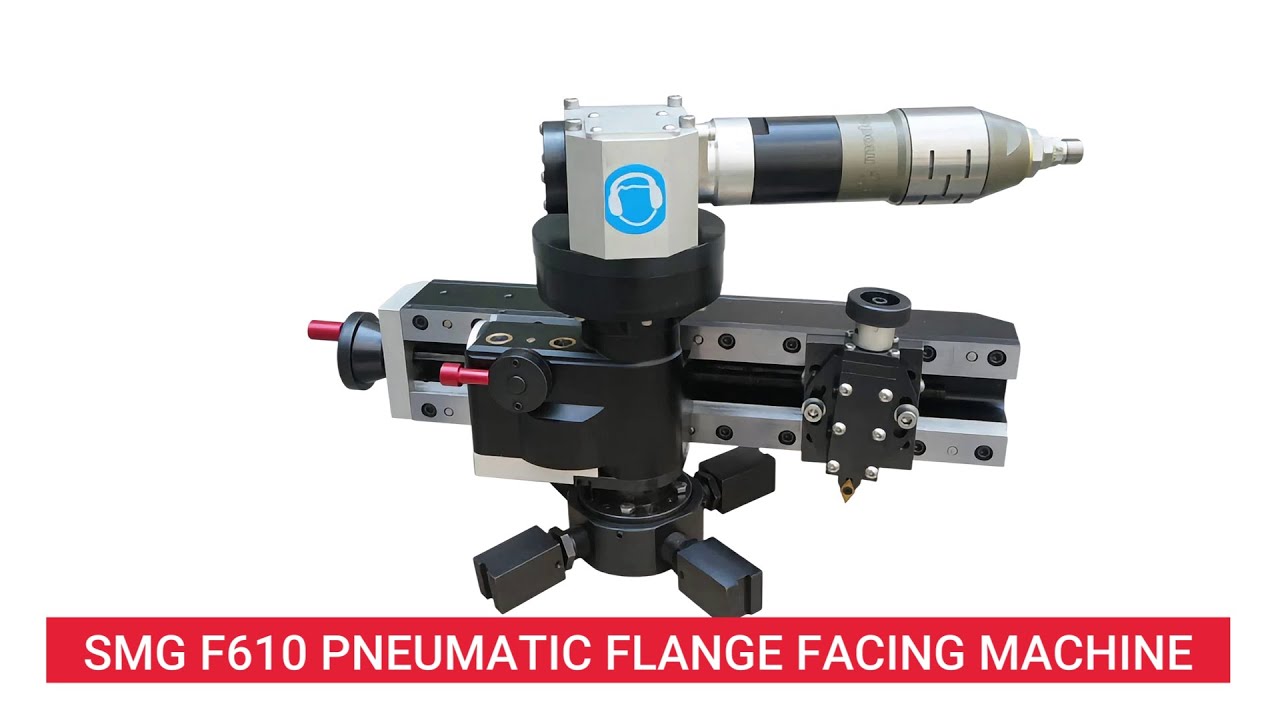

SMG F610 Pneumatic Flange Facing Machine: Portable Precision from 2" to 24" See the powerful SMG F610 Pneumatic Flange Facing Machine in action! This versatile and portable machine is engineered for on-site pipe, valve, and pump flange maintenance, ensuring your plant runs efficiently, safely, and is more environmentally friendly. Key Features & Highlights: Massive Facing Range: Capable of facing, beveling, and turning flanges from 2” (50mm) up to 24” (610mm) in diameter. Machine Shop Accuracy, On-Site Portability: Achieve high-precision results combined with the ease of handling a compact, lightweight unit. Lightweight Design: The main body weighs only 99 lbs (45 kg), making setup and transportation quick and easy. Flexible Mounting: Designed to operate horizontally, vertically, or even overhead. Powerful Drive System: Pneumatic drive @ 90 P.S.I (6 bar) delivers maximum torque at the cutting tool thanks to direct-engaging spur gears, minimizing power loss. Efficient Operation: Features a stationary feed rate selector and simplified controls for safe and quiet use. Exhaust air is routed through the machine body for increased muffling. Versatile Machining: Equipped with a compound tool head and downfeed for cutting angles, chamfers, and precise grooves (including RTJ grooving). Detailed Specifications: Max Facing Diameter: 24.0 inches (609.6 mm) Min Facing Diameter: 2.0 inches (50 mm) Min I.D. Mount: 2.0 inches (50 mm) Max I.D. Mount: 22 inches (558 mm) Tool Feed Stroke: 2.0 inches (50 mm) R.P.M: Min: 0, Max: 42 Pneumatic Motor: 1.2 HP (0.89 KW) Air Consumption: 42 S.C.F.M (1.2 m³/min) Operational Weight: 99 lbs (45 kg) Applications: The SMG F610 is an essential tool for on-site maintenance across various industries, including Oil, Gas and Chemical, Power Generation, Heavy Equipment, and Shipbuilding & Repair. Typical Applications Include: Piping system flanges Valve and bonnet flanges Heat exchanger and vessel flanges Pump housing flanges Weld preps and tube sheet bundles Manufacturing of mining equipment (e.g., bull gear faces, slew rings) What's Included: The machine is supplied complete with a full toolkit (including various cutters and inserts), air filter lubricator and hose connection, all required mounting bases and extensions, a comprehensive manual, and a storage/shipping box. #FlangeFacingMachine #OnSiteMachining #PneumaticTools #SMGF610 #PipeMaintenance #IndustrialTools #FlangeRepair
