Ergodox Build

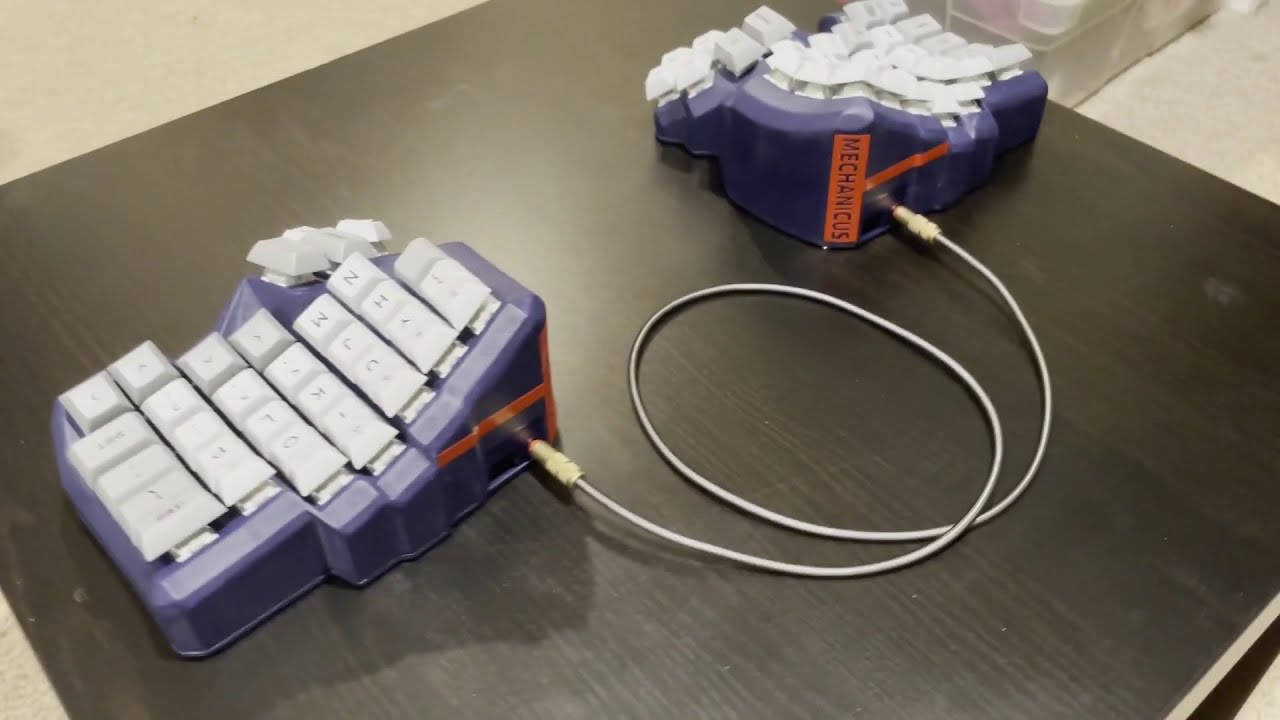

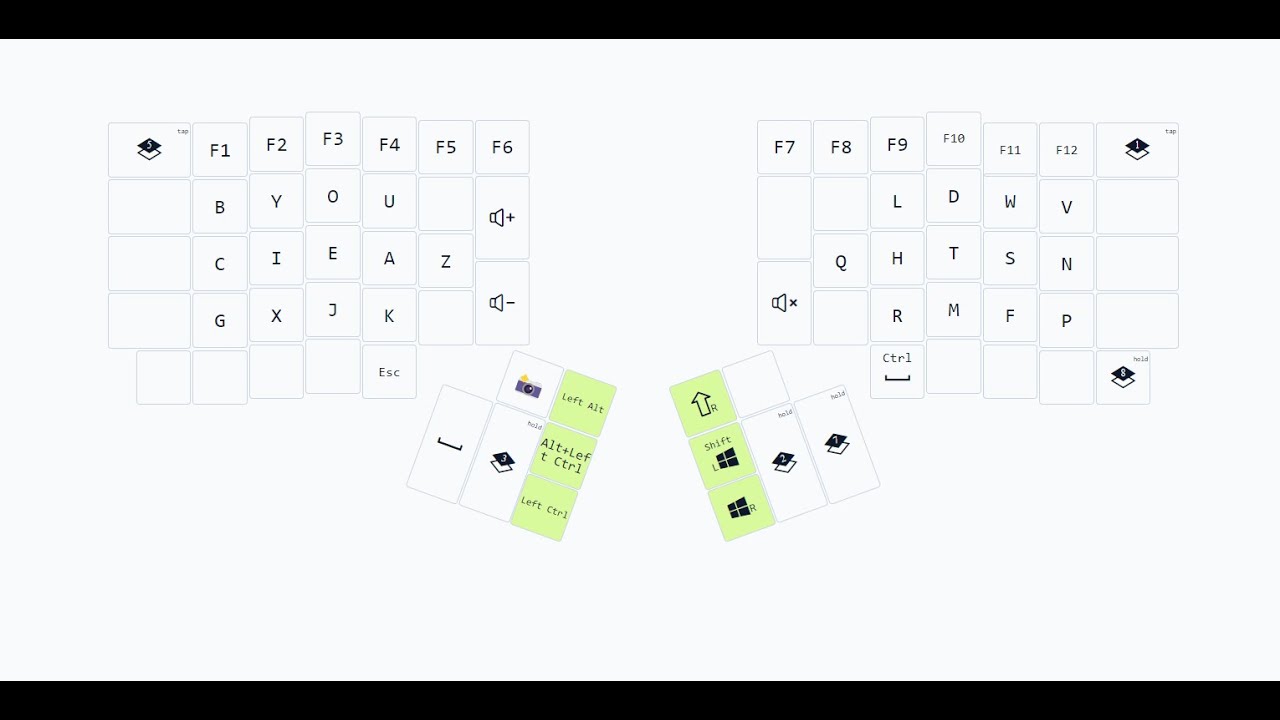

I build an ergodox keyboard using a 3D printed frame. Parts list: 1x Pair of pcbs (one for each hand) 1x Teensy USB Board, Version 2.0 24x Teensy header pins, male (unless pre-installed) 1x MCP23018-E/SP I/O expander 76-80x Cherry MX switches, (depending on your layout) 76-80x 1N4148 diodes, SOD-123 package (Surface mount) or DO-35,(0.3” pitch) (through hole) (again, the amount needed will depend on your layout) 2x 2.2k Ω resistors (red, red, red) 3x 3mm T1 LEDs 3x 220 Ω resistors, or match to LED. (red, red, brown) 5x Short jumpers (You can also use the clipped off legs from your resistors) 1x 0.1 µF ceramic capacitor (marked “104” for 10*104 picofarad). Not strictly necessary but suggested 1x USB mini B connector WM17115 1x USB mini B plug with short cable (such as H2955) 1x USB cable male A to male mini B 2x 3.5 mm TRRS sockets, CP-43514. FC68129 will also work if its extra pins are snipped off 1x Cable with two 3.5 mm TRRS plugs 76-80x MX Keycaps All parts found on: https://kono.store/ (MX Switches) https://www.amazon.com/ (PCB and Teensy 2.0) https://www.digikey.com/en/resources/... (all other parts) Watch these other channels I like:    / mandaloregaming      / @mymechanics      / reppesis
