Tube Winding - Evaporator Wrapping Machine for Deep Freezer

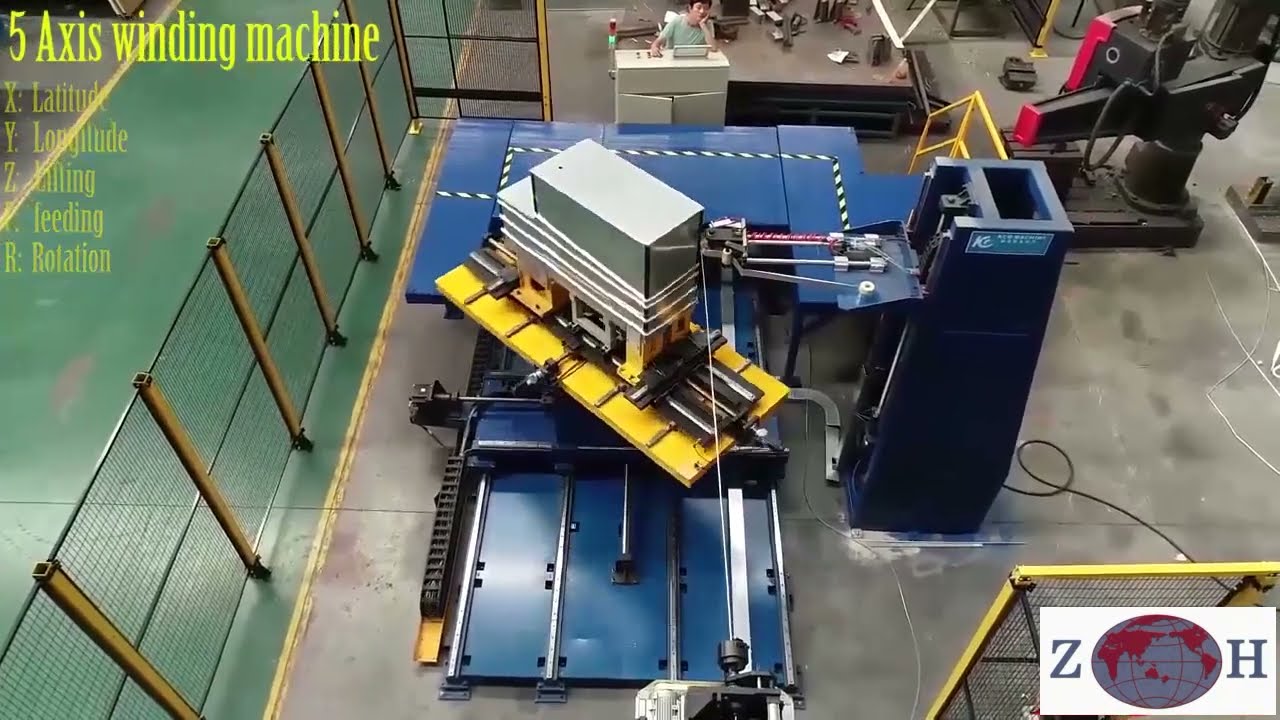

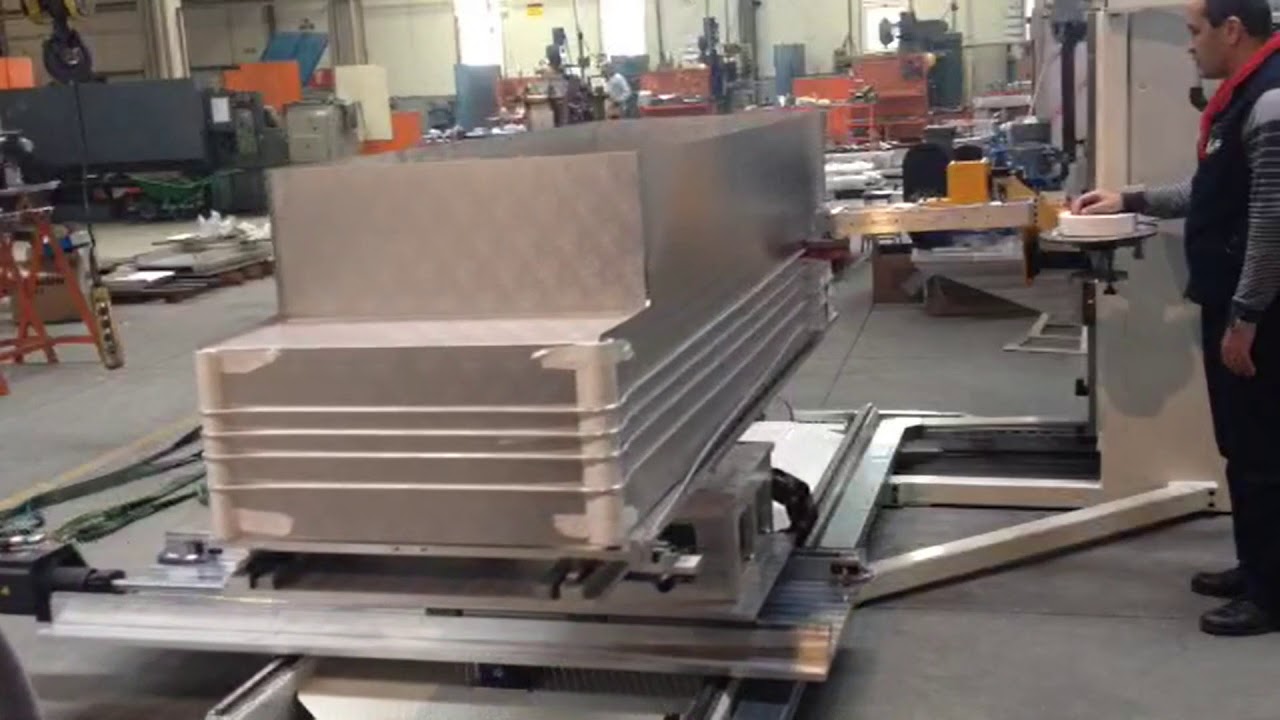

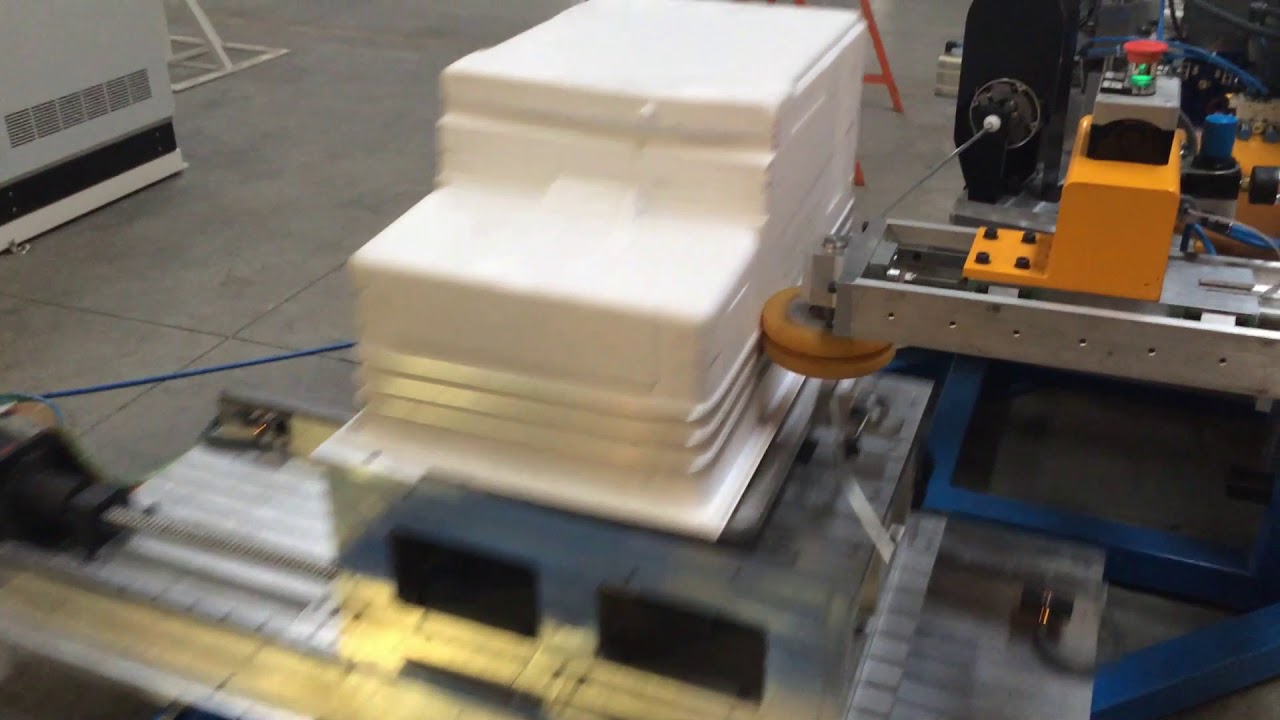

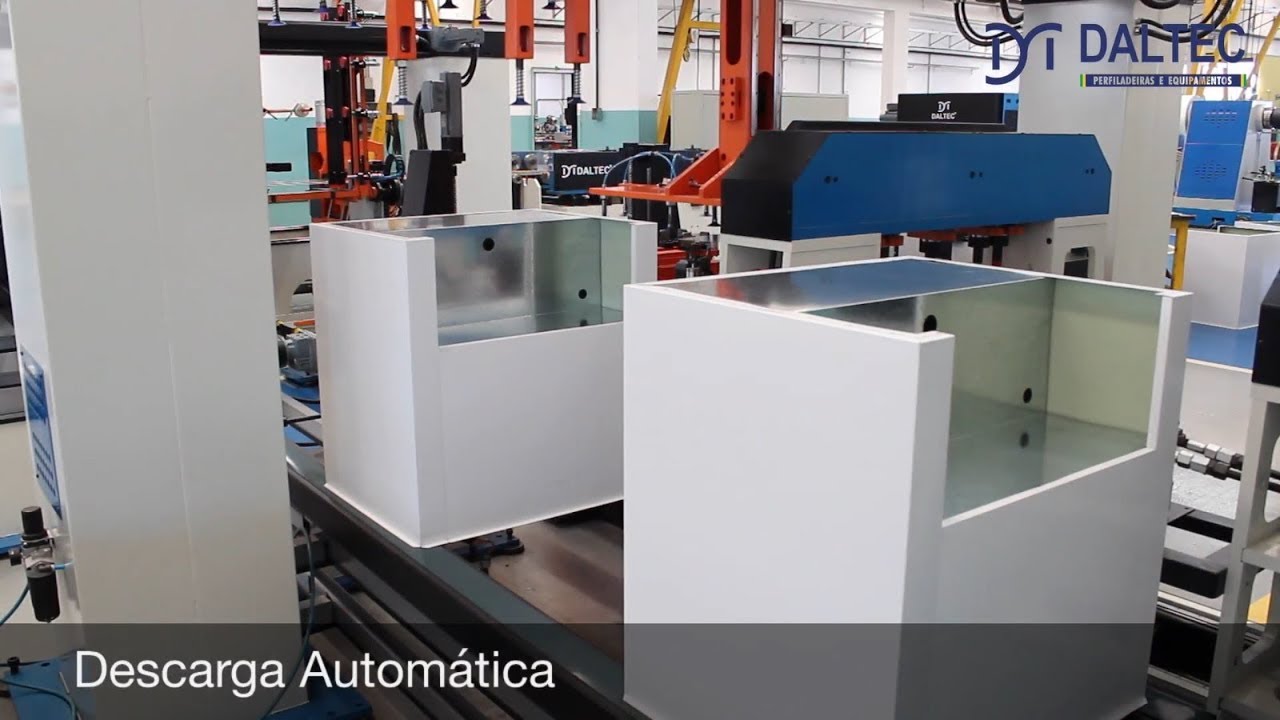

5 Axis Motion Controlled Pipe Wrapping Machines with Automatic Loading and Unloading Manipulator The machine is designed and manufactured for wrapping aluminium evoperator tube automatically to the outer of the thermoform plastic cabinet or aluminium cabinets of refrigerators and freezers. Common used areas for Static refrigerator freezer section, upright freezers thermoforming plastic cabinets, chest freezers aluminium sheet cabinets. Machine structure X, Y, Z, and R servo axis Expander group Aluminium tube coil opener, straightener, feeding, D shape unit, tube cutting unit, tube enlargement unit, conductive paste material dosing unit, tape unit and roller head. Machine process flow According the cabinet dimension set up in PLC system; aluminium tube is fed automatically and operator will fix the tube and tape to the cabinet manually and start the operation that process continue automatically till end of cycle. Finished product is unloaded manually. Systems Works in motion controlled and this ensure very precise wrapping quality around the cabinet by eliminating any deformation on cabinet surface especially at the corners in order to reach required smooth surface. Machine can be used for different dimensions of cabinets. For completely different models; the average mold change set up time is around 15 minutes. For the models in same width; same mold can be used just as changing inserts.Average insert change time is around 5 minutes. The infrastructure of PLC is new generation Siemens motion controlled systems. The required safety systems can be integrated. Prescribing is available on touch screen. Pneumatic components are Festo, safety equipment’s and components are PILLZ, linear systems are INA. http://gem.com.tr/en/applications/eva... For detailed technical infromation, You may contact following adresses Address : Organize Sanayi Bölgesi 14. Cd. No:13 26110 Eskişehir / TURKEY Phone : +90 222 236 21 46 Mobile (English) : +90 544 664 66 26 E-Mail : gem@gem.com.tr Web : www.gem.com.tr
