ISO Metric Projections_ SolidWorks Tutorials_ Example 03_Frustum of Square Pyramid on Square Block

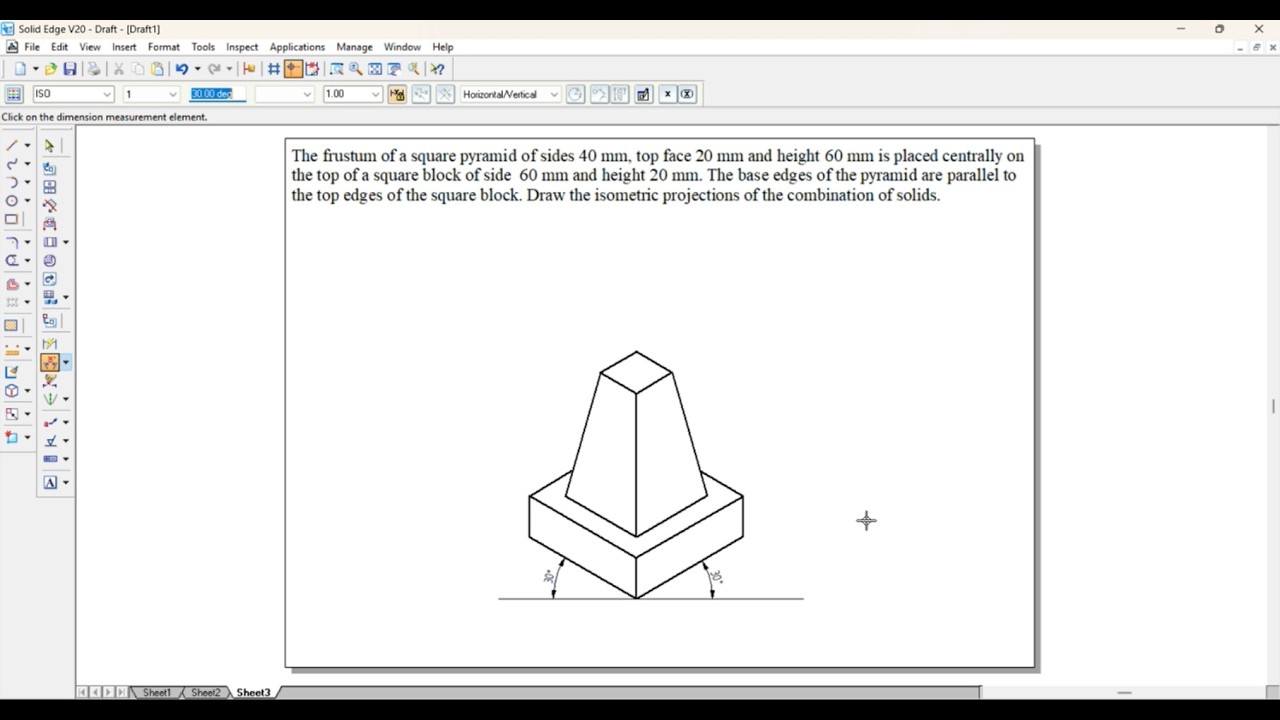

ISO Metric Projections in Engineering Drawing_ SolidWorks Tutorial_Example 03_ Frustum of Square Pyramid in English Question 03: The frustum of a square pyramid of base sides 40 mm, top face 20 mm with height 60 mm is placed centrally on the top of the square block of side 60 mm and height 20 mm. The base edges of the pyramid are parallel to the top edges of the square block. Draw the isometric projections of the combination of solids. Manual Drawing: • ISO Metric Projections in Engineering Draw... Solid Edge Tutorials:    • ISO Metric Projections _ Solid Edge Tutori...   Please watch the video till the end to clear all your doubts. KINDLY SUBSCRIBE TO OUR CHANNEL FOR REGULAR EDUCATIONAL VIDEOS. Happy Learning :-)
