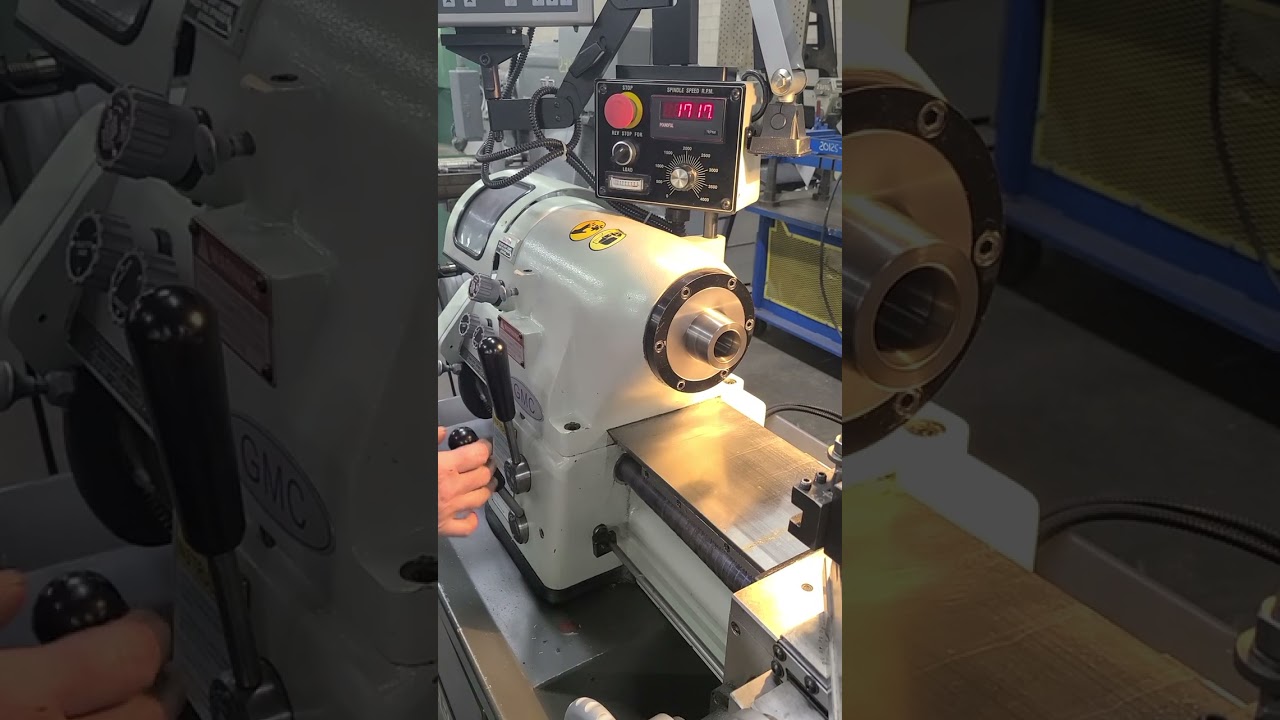

CYCLEMATIC TOOL ROOM LATHE

CYCLEMATIC TOOL ROOM LATHE PRICE: Loaded on Truck, Our Warehouse, York, PA …………… HMC Stock # 24032-P Machine Serial No.: 9810793 Machine Model No.: CTL-618EVS New Date: 2009 Spindle Capacity with Jaw Chucks: 5" (127 mm) Spindle Capacity with Expanding Collets: 3" (76 mm) Spindle Capacity with Round 5C Collets: 1-1/6" (27 mm) Spindle Capacity with Step Chucks: 1-1/16" to 6" (27 to 152.4 mm) Spindle Nose Diameter: 2.189" (55.6 mm) Spindle Nose ID/OD: 5C (10")/4" Taper Variable Spindle Speeds: 0 to 4000 RPM Hole Through Spindle: 1-1/4" (31.75 mm) Distance Between Center: 18" (457 mm) Swing Over Bed: 11" (280 mm) Swing Over Carriage: 9" (228.6 mm) Swing Over Cross Slide: 6" (152.4 mm) Carriage Power Feed Range: 5/16" to 7" (8 to 178 mm) Cross Slide Power Feed Range: 3/16" to 4" (5 to 102 mm) (36) English Threads: 11 to 108 TPI (36) Metric Threads: 1.1 to .675 mm Leadscrew Diameter: 1": to 8 TPI (25.4 mm) Cross Slide Travel: 6" (152.4 mm) Quick Action Compound Slide Travel: 0.1" (2.5 mm) Compound Slide Travel: 3" (76 mm) Tailstock Spindle Diameter: 1.358" (34.5 mm) Tailstock Spindle Taper: #2 MT Tailstock Spindle Travel: 3-3/4" (95 mm) EQUIPPED WITH: Fagor Digital Read Out Quick Change Tool Post Inch/Metric Dials Assorted 5C Collets Inch/Metric Gear Banjo Work Light Steady Rest Follower Rest Manual One Shot Lube Coolant 1/8 HP Coolant Pump Motor, Wired for 3 Phase, 220 Volts 5 HP Main Motor, Wired for 3 Phase 60 Cycle 440 Volts Overall Size: 76" L-R x 36" F-B x 74" High x 2,200 Lbs.
