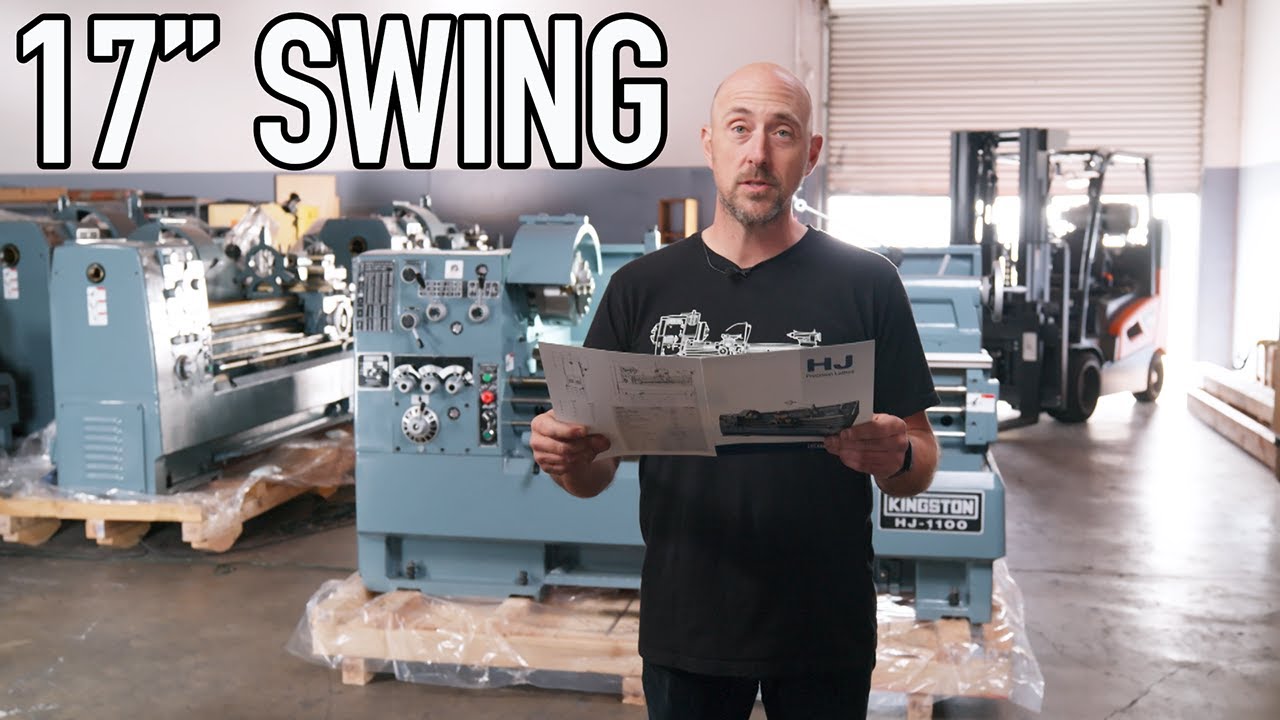

Kingston HJ Series Lathe, Model HJ1100BB Precision Toolroom Lathe / 3" Spindle D-1-8 in 17” X 43”

MACHINERY CONSULTANTS INC BILL WILSON JR. 1390 W. 200 S. Salt Lake City, UT 84104 Ph: 801-531-9500 E mail: mci@machineryconsultants.com website: www.machineryconsultants.com Kingston Machine Mfg. High Accuracy & Rugged Tool Room Lathe 17" Swing X 43" OF Centers distance ~ Model HJ - 1100 - BB ( NEW ) Workhorse, High Accuracy & Rugged / 29 - 1640 RPM / Inch & Metric Threading, foot Brake, E - Stop Button c/w: Chuck Guard Capacity in swing Over Bed 17” Swing Over Cross Slide 10 9/16” Swing in Gap 24” Distance Between Centers 43.5” Width of Bed 11.75" Length in front of face plate 5-7/8” Height of Center from Leg Bottom 42 3/8” Headstock Spindle Bore 3.25” Taper of Spindle Bore & Center M.T. #6 x #4 Type of Spindle Nose D1-8 Number of Spindle Speed 12 - Changes Rpm Range of Spindle Speed 29-1640 RPM Gear Box Number of Feed Changes 16 Feeds per Revolution Longitudinal 0.0012 – 0.034 inch Cross 0.0008 – 0.023 inch Diameter and pitch of lead screw ø1 3/8”, 4 TPI Range of inch threads 2-72 TPI (44) Range of metric pitches 0.2 – 14mm (39 kinds) Tool Slide Maximum Travel of Compound 5-7/8" Maximum Travel of Cross Slide 10-3/4" Tailstock Maximum Travel of Tailstock Quill 5-7/8” Tailstock Quill Diameter 2-3/8”, #4 MT Motor Main Drive Motor 7.5 HP ( 3 phase motor) Motor Voltage: 220/440 Volts (3 Phase) please advise if either 220 volts or 440 volts for Pre-Wire before ship-out Dimension Floor Space 98” x 41” Weight 4,260 lbs STANDARD EQUIPMENT & ACCESSORIES • Main Motor: 7.5 HP, 230V / 460V, 3 Phase, 60 Cycle, Switch & Wiring • 3.25" Spindle Bore • Spindle Nose: D1-8 • 12 Spindle Speeds (29 – 1640 RPM) • Timing Belt For Gear Changes • Hardened & Ground Bed Ways And Cross Slide • Automatic Longitudinal Feed Stop Bar • 4-Way Tool Post Fitted to T-Slotted Compound • Thread Chasing Dial • LED Work Light • 12” 3-Jaw Scroll Chuck • Chuck Guard • Headstock Spindle Center Adaptor: MT#6 to #4 • 4.7” Steady Rest With Roller Jaws • Coolant System With Pump And Piping • Full-Length Splash Guard • Tool Box w/ Necessary Wrenches & Spanners • Instruction Manual & Parts List Bill Jr., Technical Sales Manager, Director of Operations 1390 West 200 South Salt Lake City, Utah 84104 Office Phone 801-531-9500 E Mail for mci@machineryconsultants.com Our website: www.machineryconsultants.com
