TCCYICA Electric Tricycle Installation Instructions

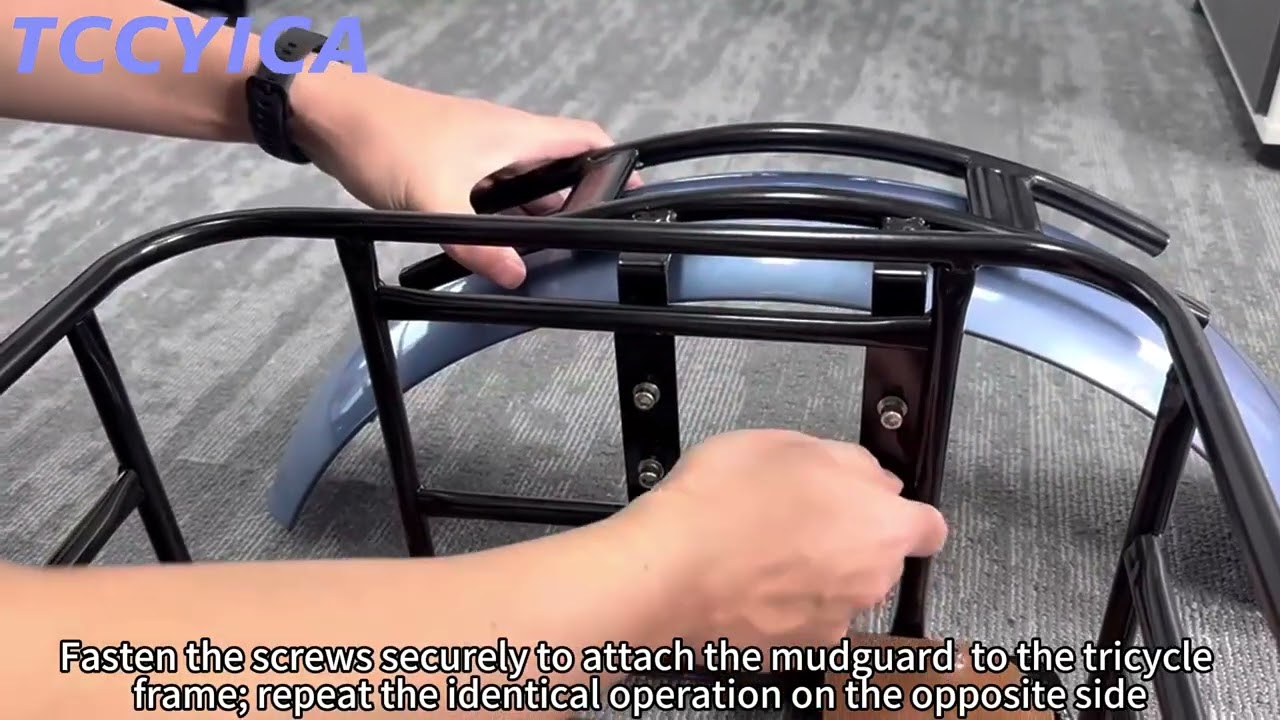

Turn the tricycle frame following the arrow indication to complete the connection. Squeeze and rotate the rotary fastener illustrated herein following the arrow direction manually Subsequently, apply the entire palm to fasten the buckle completely along the arrow direction. Turn and raise the tricycle's front section following the arrow direction to an appropriate position. Fasten the screws securely using a wrench to lock the tricycle's fasten the front section firmly. Place the saddle seat into the pre-drilled holes in a downward direction. Apply force to align the saddle seat properly along the arrow direction by hand. Regulate the saddle seat to the desired height,and then secure the buckle to fix the seat height firmly. Mount the tire, engage the frame with the wheel axle following the arrow direction,and align the brake pad with the brake disc synchronously Engage the fastener with the mounting hole and secure the screw firmly. Perform the same operation on the opposite side. Remove all the fastening screws securing the mudguard to the tricycle frame. Line up the mounting holes in accordance with the illustration,then fit the mudguard into position Fasten the two lower fixing screws of the mudguard securely in the first place. Subsequently, mount the front headlight and fit the screws into the respective mounting positions in accordance with the illustration. Fasten the screws securely using a wrench. Ultimately, secure both the front headlight and the mudguard tightly and reliably Rotate and insert the rearview mirror along the arrow direction to the mounting position. Adjust the rearview mirror by rotation to an optimal viewing position. Fasten the screws securely using a wrench to lock the rearview mirror. Fit the protective cover over the designated component to complete the installation. Remove the fastening screws that secure the mudguard bracket in the first place. Attach the mudguard firmly to the dedicated mudguard bracket in alignment with the pre-drilled mounting holes. Remove the fastening screws which link the mudguard bracket to the tricycle frame in the first place. Fasten the screws securely to attach the mudguard to the tricycle farme;repeat the identical operation on the opposite side. Fit the protective cap onto the end of the wheel axle in a snug and secure manner. Insert the small flexible end pieces into the 8 pre-drilled holes on the mudguard bracket until they are fully seated. Remove the fastening screws designated for the rear rack installation in the first place. Align the pre-drilled mounting holes of the rack （with one wooden board Installed) and position it onto the designated mounting area of the tricycle frame Perform initial hand tightening of the screws to temporarily secure the rack to the tricycle frame and ensure proper alignment of all components. Employ two wrenches for final tightening:secure the lower side of the fastener with one wrench and turn the upper side with the other to fully tighten the screws,ensurIing the rack is stable and free of any wobbling. During the installation of the wooden board,note that the side with the concave indentations shall be oriented upwards. Align the mounting holes of the wooden board with those of the rack, then fully tighten the screws to secure the wooden board firmly in place on the rack. Remove the fastening screws designated for basket installation from the tricycle frame in the first place. Align the mounting holes of the basket with the matching positions, on the tricycle head, then tighten the fastening screw securely to lock the basket in place. Move the battery along the guide slot in the direction specified by the marked arrow until it reaches the correct position. Ultimately, fasten the battery firmly in its designated position in accordance with the method illustrated in the diagram. Please distinguish clearly between left and right.Initially, install the pedals in a temporary position by a manual rotation, in accordance with the method illustrated in the diagram. Subsequently ,employ a wrench to rotate and fasten the pedals completely to the crank arms of the tricycle until they are securely locked in place. Position the rear taillight onto the designated mounting area of the tricycle and align its mounting holes with the corresponding holes on the vehicle, in accordance with the method illustrated in the diagram. Fasten the fastening screws from the rear side using a wrench to securely attach the rear taillight to the tricycle frame. Thank you.
