HomeBrew Descrete Transistor CPU Plays Noughts and Crosses (TIC TAC TOE)

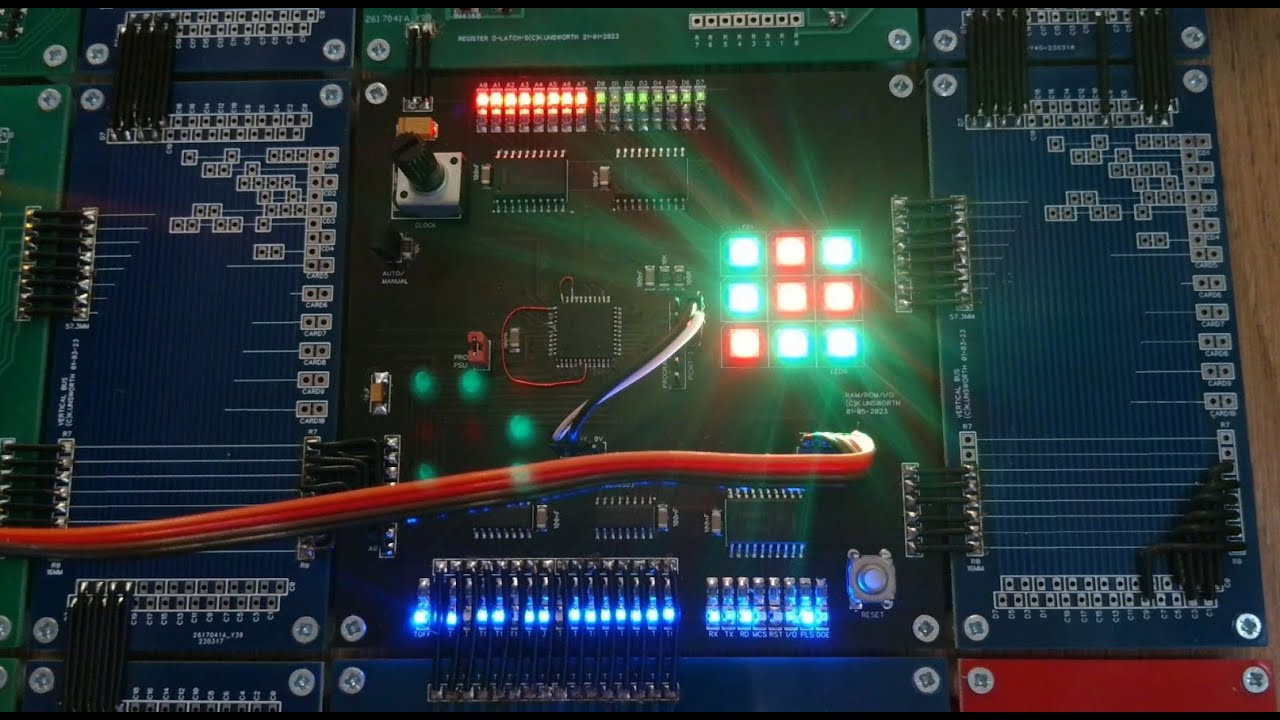

This is the CPU I designed and built over the last couple of years it was inspired by Ben Eater. It is made from around 2700 MOSFETs. I could find people who had designed their own CPUs and I could find people who had built descrete transistor CPUs, but no one that had done both so that is what I have done. I designed the PCBs and had them made by JLCPCB, I then spent hours and hours soldering every thing together. There are around 1500 links between the boards. They are mounted on a MDF laminate back board that folds up in two for storage. The Source files and gerber files etc. can be found here :- https://drive.google.com/drive/folder... http://www.tcuts.co.uk Dont forget to visit    / @letsbuildatransistorcomputer   for his design.
