Honda CR-V Fuse Box Diagram & Location (2002-2006) 🔧

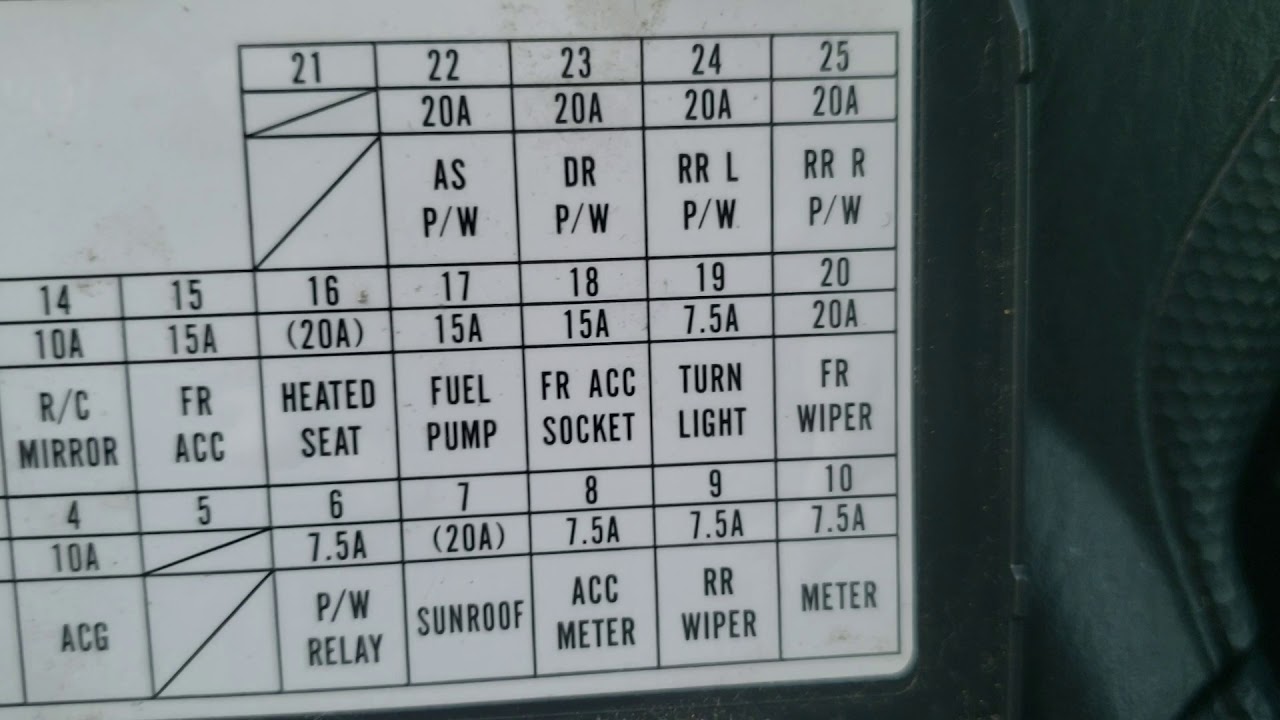

In this video, I’ll show you the fuse box diagram and location for the Honda CR-V (2002-2006 models) & CR-V SE. Whether you're dealing with a blown fuse or need to check an electrical issue, this guide will help you locate the interior and engine bay fuse boxes, understand the fuse layout, and identify the correct fuses for your CR-V. 🔹 Key Topics Covered: ✔️ Interior Fuse Box Location (Dashboard Side Panel) ✔️ Engine Bay Fuse Box Location ✔️ Fuse Diagram & Functions (Which fuse controls what?) 📌 Helpful Tips: ✔ Always use the correct fuse amperage to avoid electrical damage. ✔ Check your owner’s manual for additional details. ✔ If a fuse keeps blowing, there may be an underlying wiring issue. 🔧 Tools Needed: ✔ Fuse puller (or small pliers) ✔ Replacement fuses (check amperage) ✔ Flashlight (for better visibility) 1️⃣ Interior Fuse Box (Under Dashboard) – Common Fuses #1 (10A) – Backup Lights, SRS Unit (Fails if reverse lights don’t work) #4 (7.5A) – Audio System, Interior Lights (Radio/dome light issues? Check this!) #6 (15A) – Cigarette Lighter / 12V Power Outlet (If charger or accessories don’t work) #10 (20A) – Power Windows (If windows stop functioning) #11 (7.5A) – Turn Signals, Hazard Lights (Turn signals not blinking? Check here.) #12 (20A) – Sunroof (if equipped) (SE models may have this) 2️⃣ Engine Bay Fuse Box – Common Fuses #1 (15A) – ECU (Engine Control Unit) (Car won’t start? Check this critical fuse.) #3 (20A) – Radiator Fan (Overheating? Fan not running?) #5 (15A) – Fuel Pump (Engine cranks but won’t start? Could be this fuse.) #8 (20A) – ABS (Anti-Lock Brakes) (ABS warning light on?) #12 (10A) – Alternator, Battery Charge Sensor (Battery/charging issues?) #14 (15A) – Horn (Horn not working?) This fuse box diagram for Honda CR-V & SE cars 2002, 2003, 2004, 2005 and 2006 only. 👍 Found this helpful? Like, Subscribe, and hit the 🔔 Notification Bell so you don’t miss more DIY car repair guides! 💬 Got questions? Drop them in the comments, and I’ll help you out! 📖 Related Videos:    • Honda CR-V Fuse Box Diagram (2012 - 2016)      • Honda CR-V Fuse Box Diagram (2007 - 2011)      • Honda HR-V Fuse Box Diagram & Location (20...      • Nissan X-Trail (T31, 2008-2013) Fuse Box D...   #HondaCRV #FuseBox #CarRepair #DIYAuto #FuseDiagram
