[CO Alarm] BA45F6730 Development Board for CO Alarm BMAN6730DCA

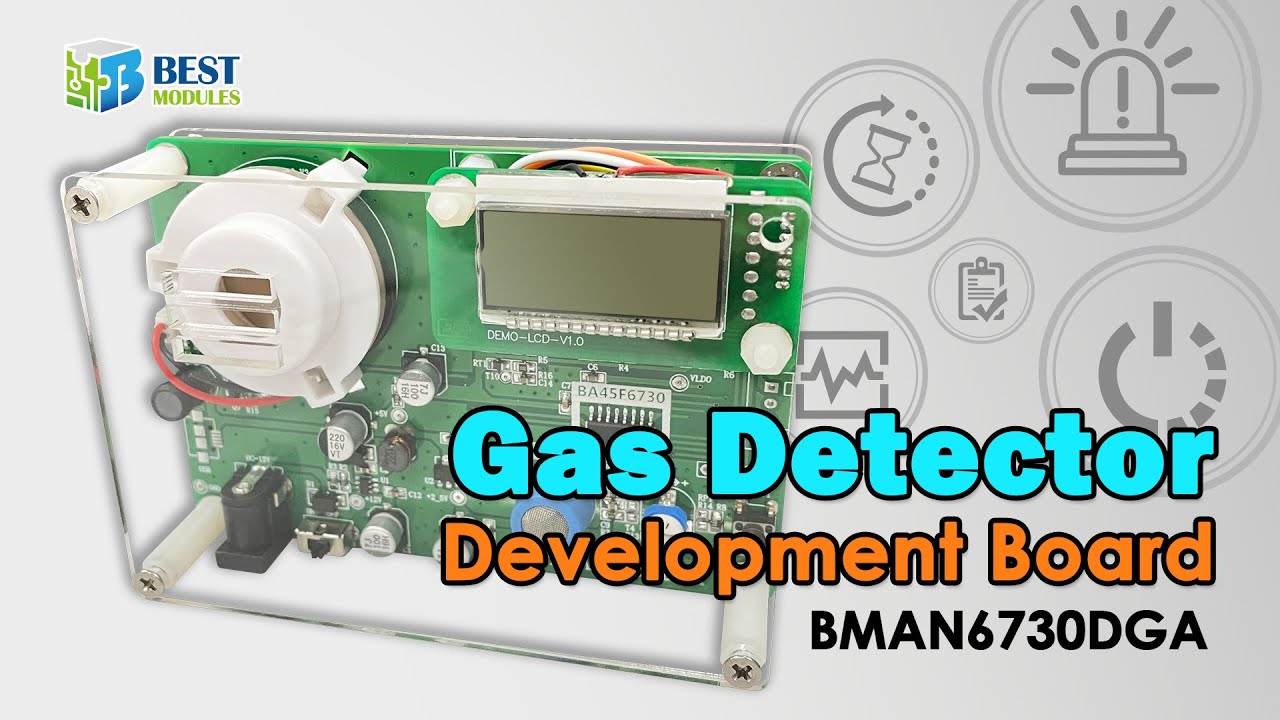

📌BA45F6730 Development Board for CO Alarm BMAN6730DCA 📋More Information: https://www.bestmodulescorp.com/bman6... 00:00 00:05 Opening 00:06 00:10 BA45F6730 Development Board for CO Alarm 00:11 00:17 Development Board Introduction 00:19 00:31 Programming Pins 00:32 00:43 Connect to e-Link 00:45 00:56 Product Modes 00:57 01:00 Demo 01:01 01:15 Warm-up mode 01:16 01:21 Normal mode 01:22 01:30 Test mode 01:32 01:34 www.BestModulesCorp.com ✒Description The BMAN6730DCA is an evaluation board for Holtek 8-bit CO/Gas Detector MCU BA45F6730. The product's function is as a stand-alone carbon monoxide alarm. For users who intend to use BA45F6730 to develop products, this board is suitable for evaluation and demonstration purposes. ✒Features ◆ Power supply : 4.5V DC ◆ Warm-up mode Turn the power switch to ON after power-on. It might take 120 seconds for warm-up. The LCD displays a countdown of 120 seconds and the green LED flashes once each second in the process. It enters the normal mode after warming up. If the board has not been calibrated, the green and yellow LEDs flash once each second in the process. ◆ Normal mode The green LED flashes once every 40 seconds, and the LCD displays nothing. ◆ Low voltage mode When the voltage is lower than 3.6V, the buzzer beeps once every 40 seconds if it is under normal mode. Otherwise, the LCD displays a battery icon. ◆ Alarm mode When the CO concentration is detected to exceed 180ppm, the alarm mode is entered. The buzzer beeps once then stop two second, the red LED flashes once at the same time, and cycles four times. The LCD displays the current CO concentration in the process. If CO concentration is detected to be lower than 40ppm, the alarm mode is lifted automatically. ◆ Test mode Please press the test button to enter test mode. It simulates the alarm mode in this mode. The green and yellow LED are always on, and the LCD displays 0ppm. ◆ Calibration mode Short the BD connector pins on the board after warm-up. The CO concentration for calibration is 128ppm. It might take 120 seconds to be calibrated. The green LED keeps flashing, and LCD displays bd2. If the calibration is successful, the normal mode is entered. Otherwise, the calibration failure mode is entered. ◆ Calibration failure mode If the board has not been calibrated, all of the LEDs light on, and the LCD displays bdE. 🏢 Best modules corp. 🔗NO. 3, Creation Rd. II, Science Park, Hsinchu 30077, Taiwan 🤝service@bestmodulescorp.com 🔍https://www.bestmodulescorp.com/ #COAlarm #EvaluationBoardforCOAlarm #BMAN6730DCA #COGasDetector #Stand-aloneCarbon #COSiren #COSiren #COAlarm
