Broaching/Slotting Tool in Action on a Lathe

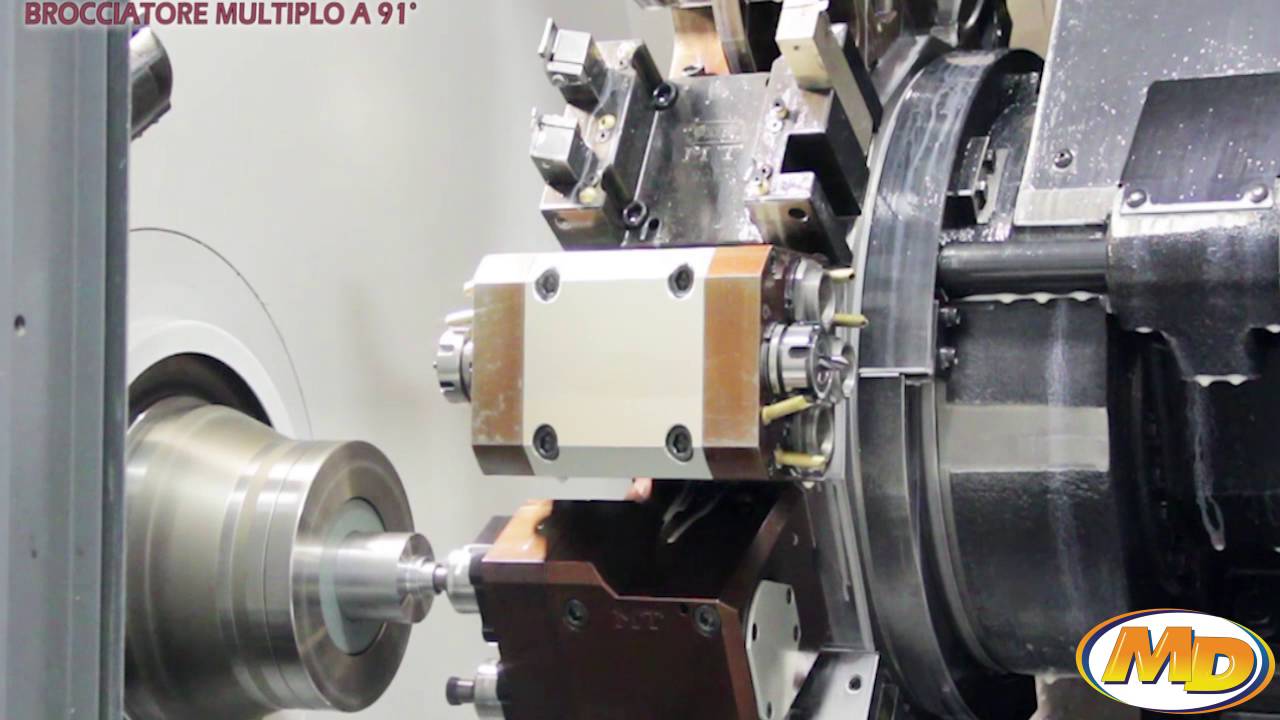

This is a broaching tool that uses the live tool motor to do ID keyways, splines, and slots. With an increased gear ratio and more power - it is possible to machine a multitude of hard material types. The newly designed broaching tool also allow you to make larger keys and brings more value due to its compact size and rigid attributes. The MD Tooling broaching tool allows you to machine keys with widths up to 12mm, make special spline profiles; and doesn't require a Y axis in the machine. Technical Specification of the MD Tooling Driven Broaching Tool: Fixed stroke 50mm or 25mm corresponding to a maximum key lenth of 47mm or 22mm. Working length: 47mm or 22mm Geared-down ratio I=1:4 The more compact and rigid design of the driven broaching tool from MD Tooling can be used on several different manufacturer machines, such as the Mori Seiki NL/NZ lathes, Doosan, Eurotech, Nakamura Tome machines and more. All MD Tooling holders come with a 2-year factory warranty that backs-up the high-quality holders. MD Tooling has live broaching and slotting tool holders for these manufacturers: Mori Seiki - NL/NZ lathes Doosan - BMT55, BMT65 Eurotech (Biglia) Okuma - LB3000/4000/LT2000, VDI40 Nakamura Tome - WT150 / SuperMill Takisawa MD Tooling is constantly adding tools to our inventory, so give us a call to learn which broaching machine manufacturers and model our tools are available for. MD Tooling's broaching tools will help get the job done quickly and safely. More info available at http://www.MDTooling.com
