A system of movable seats, Diaphanous spaces in a multi-use room, Museu de les Aigües

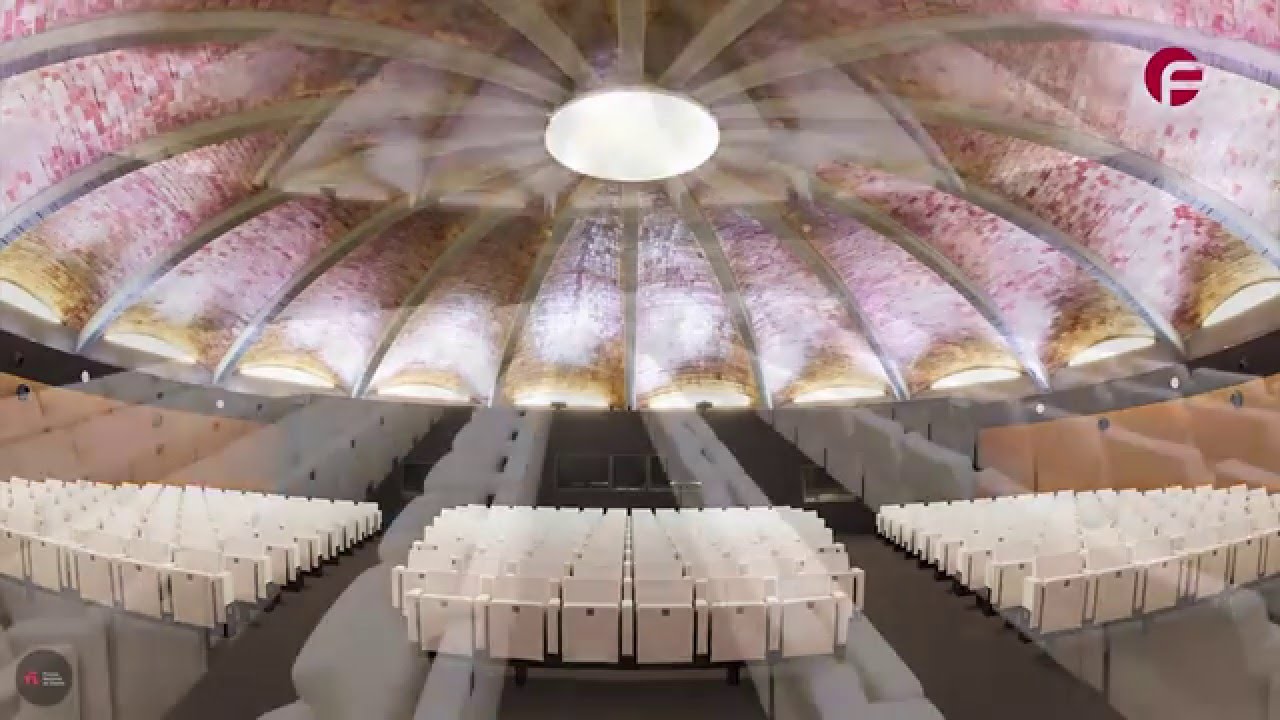

Figueras International Seating. To achieve a multi-use space, the architects responsible for its renovation, Unen, believed it was important to place a system of movable seats, which could be stored under the floor, to use the open room as often as necessary. HOW TO MAKE SPACE PROFITABLE The installed automatic seating system, Mutasub System, allows seating storage in the room’s raised floor at a depth of 45 cm to which the elegant and wide armchair 6032 Flex has been added. Overall, the room seats 290 people. Each of the rows has a different number of seats; thus, there are rows of 7, 8, 10, 12 and 14 seats. This requires the compressed air circuit to allow the opening of the lids and movement of the rows, adjusted for each row’s different weight and length, all closing and opening in synchronisation. The pneumatic circuit is made for raising the lids at a higher than usual weight because the raised floor is adapted for exhibit space standards and can support weights of 500kg/m2. This engineering system is located in a very small space in the same tank.
