8-Bit Breadboard CPU (LCD Display, Port Controller)

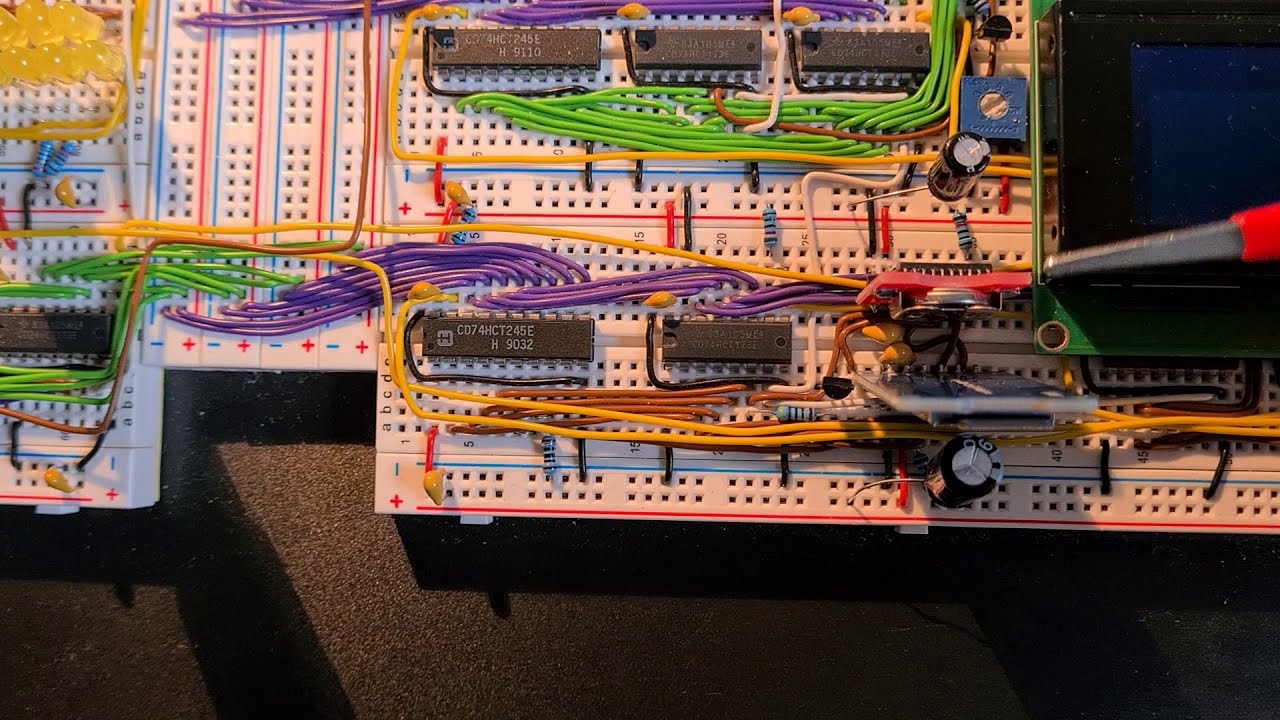

This video is about the LCD display of my 8-Bit Breadboard CPU. I integrated an LCD2004 type but most of the description also applies to the smaller LCD1602 type. Part of this video is the explaination of my port selector which is not only used to connect the LCD display but also other peripherals. My overview video:    • 8-Bit Breadboard CPU (Overview)   GitHub (schematics): https://github.com/DerULF1/8bit-computer ----------------- 0:00 Intro 0:41 LCD 2004 Overview 1:58 LCD 2004 Hardware Interface 2:48 LCD General Bus Protocol 7:48 8-Bit Interface vs. 4-Bit Interface 9:19 My LCD Controller 11:14 LCD Controller Schematic Walk-Through 14:21 LCD Controller Breadboard 15:12 Port CPU Interface 16:59 Port Selector Schematic Walk-Through 18:06 LCD Software Send Byte 19:13 Send Byte Code Walk-Through 20:56 LCD Software Receive Byte 22:09 Receive Byte Code Walk-Through 23:11 LCD Command Format 25:03 LCD Initialization Sequence 27:24 LCD Software Character Output 28:39 Character Output Code Walk-Through 29:49 Outro -----------------
