HeatStaking System with rotary table

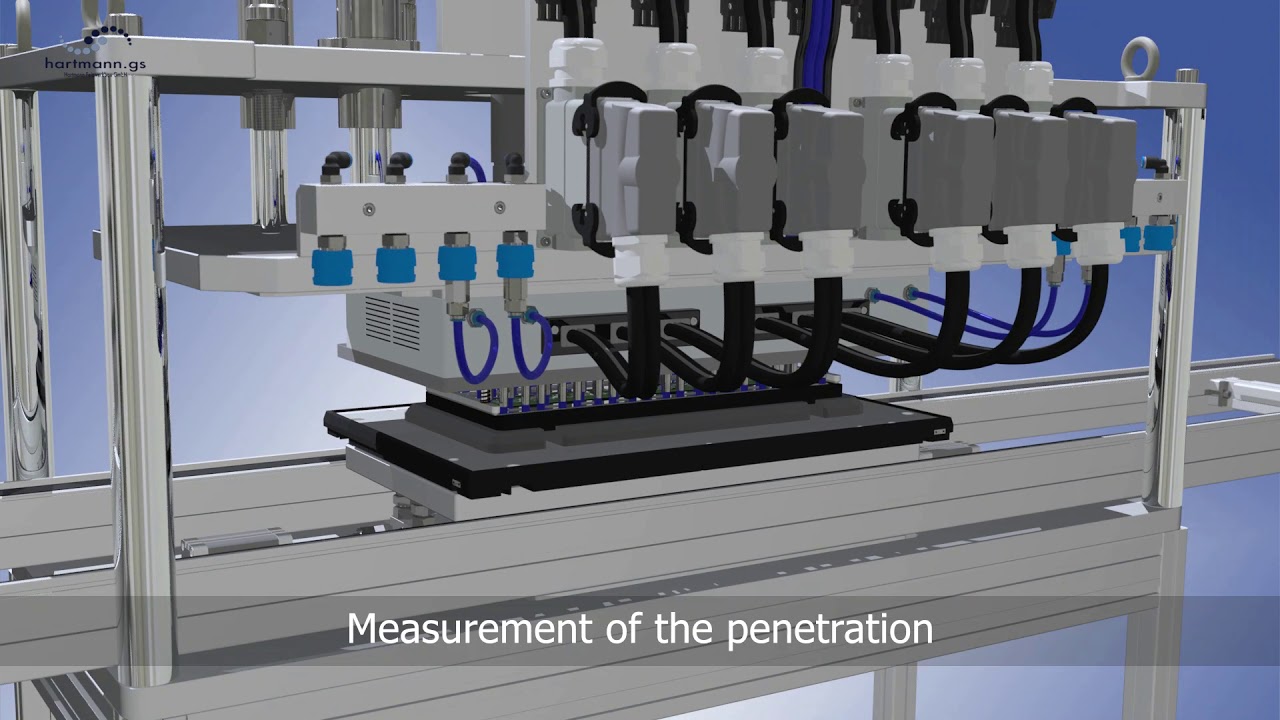

Heat Staking process for fixing a PCBA into a plastic housing. HeatStaking of 20 plastic pins in one working step. The following steps are shown in this video: HeatStaking system with rotary table. Insert the product into the component holder. Rotating the table into the working area. The HeatStaking process starts automatically. Customer-specific, temporarily heated 20-position HeatStaking head. The HeatStaking head moves onto the product. Measurement of the component height. Heating of the thermodes, pressure/force-controlled HeatStaking phase. Active cooling phase of the thermode and the plastic. Measurement of the penetration. The Thermode moves back into its rest position. During the ongoing HeatStaking process, the second component holder was re-equipped and will be processed after rotating into the working area. Remove the HeatStaked component. The result: Perfectly form-fitting, HeatStaked component and visually appealing plastic domes. Maximum process reliability thanks to fivefold monitoring: path, pressure, temperature, force and power measurement. Further information at https://www.hartmann.gs/heatstaking
