Draft Analysis in SOLIDWORKS | Identify draft issues and fix them efficiently – Part 1

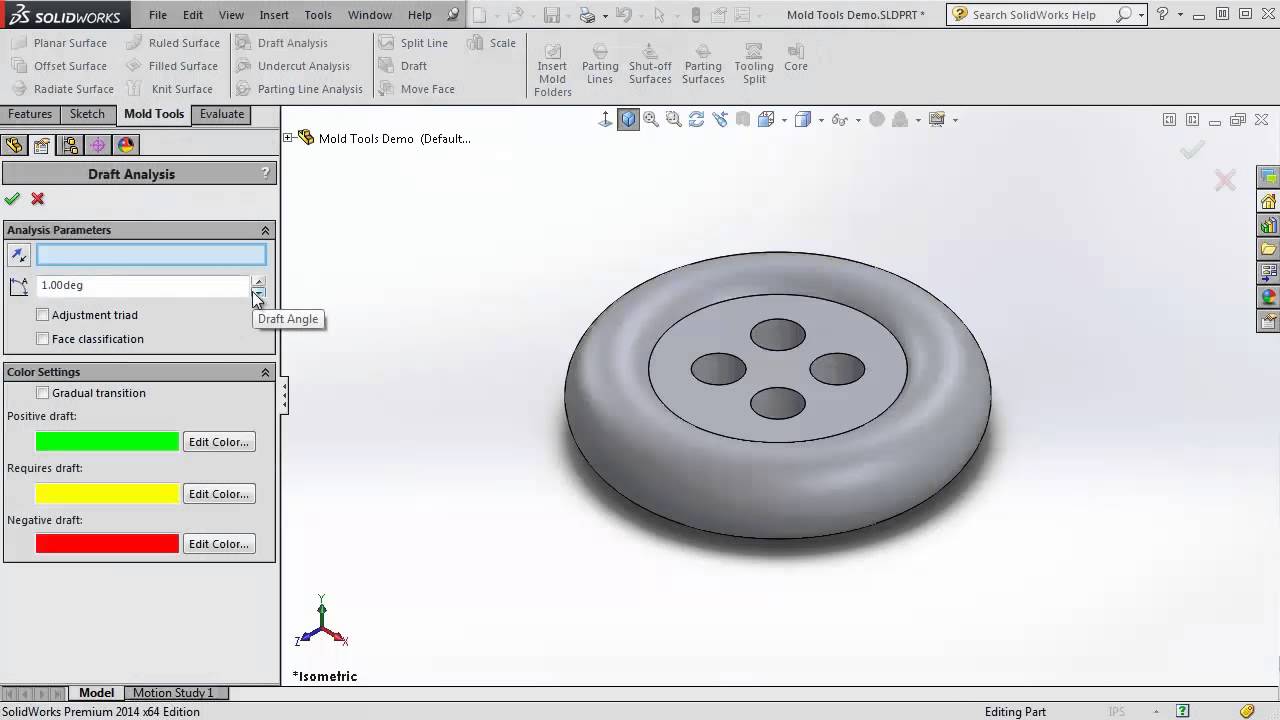

In this tutorial, we’ll walk you through the process of using the Draft Analysis tool in SOLIDWORKS to ensure your plastic mold designs meet the necessary draft angle requirements. This quick and easy guide will help you analyze your models, identify areas that need adjustments, and eliminate costly mold defects — all while enhancing your manufacturing process. Key Takeaways: How to enable and configure the Draft Analysis tool. How to visualize positive, negative, and required draft areas. Best practices for analyzing and adjusting draft angles in SOLIDWORKS. i GET IT by Tata Technologies provides expert-led learning resources designed to empower engineers with the skills needed to excel in various engineering software, including SOLIDWORKS. Stay tuned for more tutorials to sharpen your design and manufacturing capabilities. Learn More: www.myigetit.com Don't forget to like, comment, and subscribe to stay updated on our latest tutorials! #SOLIDWORKS #DraftAnalysis #MoldDesign #EngineeringTutorial #productdesign #designengineer #engineeringdrawing #engineeringstudents #teamcenter #manufacturing #mcad #cadsoftware #cadmodeling #catia #creo #siemens #engineering #engineeringexcellence #engineer #mechanicalengineering #designengineering #tata #tatagroup #tatatechnologies #iGETIT #Mission1Million
