Rapid Attack Portable Monitor ( RAM XD )

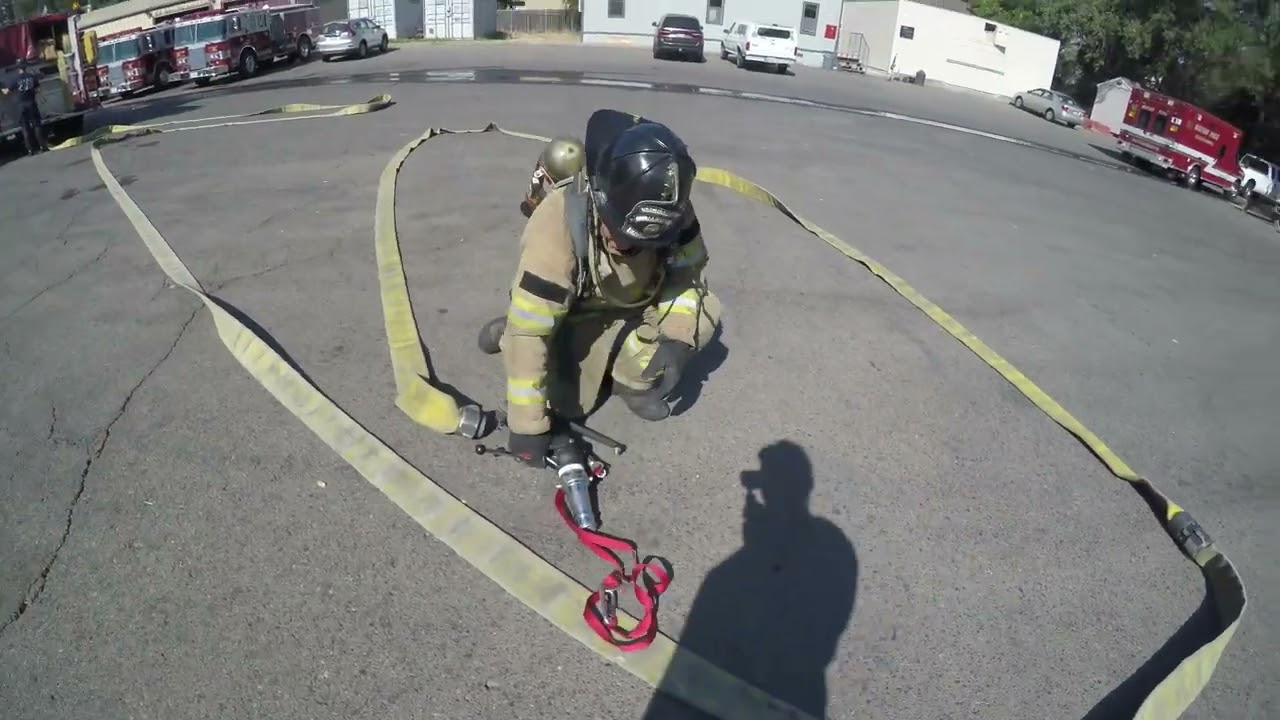

A single firefighter can quickly deploy the RAM XD™ Rapid Attack Portable Monitor to flow up to 500 GPM (1900 LPM) fast, ideal for quick attack, high-rise, and industrial applications! Lightweight and compact, the RAM XD can lower to 14 degrees above horizontal, making it easy to flow into overhead doors, traditional-size man doors, or storefronts. Its angled waterway shape and four foldout legs help to harness nozzle reaction, making an extremely stable and safe design. It delivers the best stream quality and reaches only 75 psi (5 BAR) nozzle pressure. The lock pin holds the valve in a closed position, preventing accidental opening while moving the unit on a charged hose line. A safety strap is attached, along with a storage pouch. . 8296 R.A.M. Key Features: Lightweight, compact monitor easily deployed by single firefighter Up-down travel range: Vertical +14 degrees to +51 degrees (manned) +35 degrees to plus 51 degrees (unmanned) Left-Right travel 20 degrees each way (40 degrees total) Only 9 psi (0.6 BAR) friction loss at 500 gpm (1900 LPM) 2.5″ female swivel inlet x 2.5″ male outlet . RAM XD Nozzles & Accessories: 3896 R.A.N. Nozzle (Rapid Attack Nozzle) Rated for 500 gpm @ 75 psi (1900 LPM @ 5 BAR) Built in stream shaper for incredible reach and stream quality Hard coated aluminum finish 2.5″ female swivel inlet . 3895 Selectable Flow R.A.N. Nozzle (Rapid Attack Nozzle) Selectable flow rates: 500 gpm (1900 LPM), 350 gpm (1330), and 250 (950 LPM) gpm at 75 psi (5 BAR) Built in stream shaper for incredible reach and stream quality Hard coated aluminum finish 2.5″ female swivel inlet . 181-A Deluge Tip 1-3/8″ Discharge Size Rated for 500 gpm @ 80 psi (1900 LPM @ 5.5 BAR) Hard coated aluminum finish 2.5″ female inlet . ST-197A Triple Stacked Tip Discharges sizes of 1″ / 1-1/4″ / 1-1/2″ Rated for 265 gpm / 413 gpm / 596 gpm @ 80 psi (1000 LPM / 1560 LPM / 2250 LPM @ 5.5 BAR) Hard coated aluminum finish 2.5″ female inlet . 282-A Mini Stream Shaper Compact design Internal vanes help reduce turbulence improving stream reach and quality Hard coated aluminum finish 2.5″ female inlet x 2.5″ male outlet . 8296-MB Mounting Bracket Constructed of rugged aluminum Durable rubber straps used for positive securing Suitable for use inside or outside apparatus Large locking levers easy to manipulate . Oscillating R.A.N. Nozzle (Rapid Attack Nozzle) Rated for 500 gpm @ 75 psi (1900 LPM @ 5 BAR) Water powered adjustable oscillation Left-Right travel 20 degrees each way (40 degrees total) Built in stream shaper for incredible reach and stream quality 2.5″ female swivel inlet . HF-350A / HF-500A Hydrofoam Nozzle Rated for 350 gpm (1330 LPM) or 500 gpm @ 100 psi (1900 LPM @ 7 BAR) Cast aluminum self educting foam nozzle design supplied with pick up tube Pick up rates: ½%, 1%, 3%, 6% (HF-350A) ½%, 1%, 3%, (HF-500A) 2.5″ female swivel inlet . Please get in touch with us for more information and a price list. +441463564014 info@sfrmltd.com
