HOW TO USE RETEKESS TD156 RESTAURANT PAGER

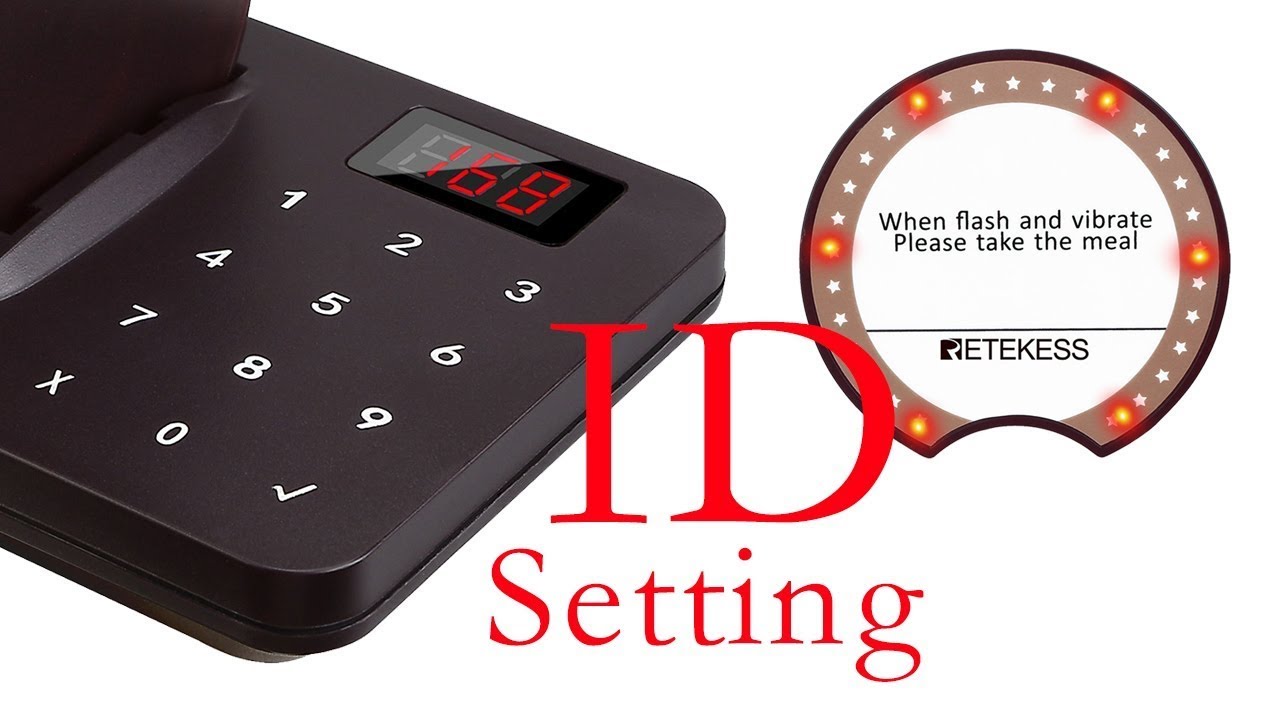

Introduce To Function Interface 1. To set the Duration of the Vibration/Buzzer/LED Flash (F0) After you access F0 function interface, input two-digit number “00” or “05-99”. The number stands for the duration in seconds of the Vibration/Buzzer/LED Flash. The number cannot be set to “01-04” because the length of the time is too short. Minimum time is 5 seconds. When the setting is 00, it means there is no limit on the length of time. When the Vibration/Buzzer/LED Flash function is turned off, it will not switch off their current setting and still follow the procedures from F2 to F4. 2. Setting ID for Coaster Pager (F1) After the access to F1 function interface, input two-digit ID (Not input “99”) for your Pager and press CALL button. At the moment, the keypad display blinks. Place the Pager to an area approximately 10cm right above infrared communication device of the keypad. If there are Buzzer and LED Flash from the Pager, it means that you finally make it. (Also, you can set it up in any time after you take the Pager off the charging tray.) Notice: After the change of any parameter in the setting of the keypad, it is necessary to reset a new ID number if you want to apply the new setting to the Pager. 3. Setting LED Flash Mode for Pager (F2) After the access to F2 function interface, the display shows the current LED Flash mode and you can select your desired mode: 0: OFF; 1: SLOW; 2: NEUTRAL; 3: FAST. When you input the number and press ENTER button, the keypad chirps at the same time, meaning it is done. 4. Setting Buzzer Announcement Mode (F3) After the access to F3 function interface, the display shows the current announcement mode and you can select your desired mode: 0: OFF; 1: SLOW; 2: NEUTRAL; 3: FAST. When you input the expected number and press ENTER button, the keypad chirps at the same time, meaning it is done. 5. Setting vibration Mode (F4) After the access to F4 function interface, the display shows the current vibration mode and you can select your desired mode: 0: OFF; 1: SLOW; 2: NEUTRAL; 3: FAST. When you input the expected number and press ENTER button, the keypad chirps at the same time, meaning it is done. 6. Setting Alarm Time on Overstepping (F5) After the access to F5 function interface, the display shows the current alarm time after overstepping and you can select your desired time. When the Pager is out of transmission range of keypad for a certain length of time, it will trigger an alarm. The pager shows "99” with vibrating and blinking. The time can be set to 0-30 minutes (0 means the alarm is off. And the other number stands for the time, after which the alarm begins to go off. ) 7. Setting Service Countdown (F6) After the access to F6 function interface, the display shows the current service count- down and you can select your desired countdown (0-99 minutes). 0 is to turn off the function, while the other number means that the Pager will remind the guest of collec- ting meals after an interval of countdown when it receives messages from the keypad. After the reminder of countdown, it is only when the Pager is placed on the charging tray connected to power that notification is closed. When it is sending the notification, the Pager is constantly vibrating and blinking and the ID of disc will be showed in the display. 8. Setting Channel Value (F7) After the access to F7 function interface, the display shows the current channel and you can select your desired channel (Channel 1-99, each number stands for a channel). When you input the expected number and press ENTER button, the keypad chirps at the same time, meaning it is done. Notice: It is necessary to set up a new ID for after you change the channel for the coaster Pager. 9. Setting Keypad Password (F8) After the access to F8 function interface, the display shows "0.0.0.0.”. To set up the password for the keypad, input four-digit number and press ENTER button. When the keypad chirps at the same time, meaning it is done. ("2580” is the default password for the keypad, which can unlock the keypad in any situation. Notice: The code can be set to "0000”. ) 10. Setting Frequency (F9) After the access to F9 function interface, the display shows the current frequency and you can select your desired frequency (Channel 01-31, each number stands for a frequency). When you input the expected number and press ENTER button, the keypad chirps at the same time, meaning it is done. Notice: It is necessary to set up a new ID for all discs after the frequency is changed for the coaster beeper.
