Basics of PLC timers | Types of PLC timer | PLC programming | PLC PROGRAMMING TUTORIAL FOR BEGINNERS

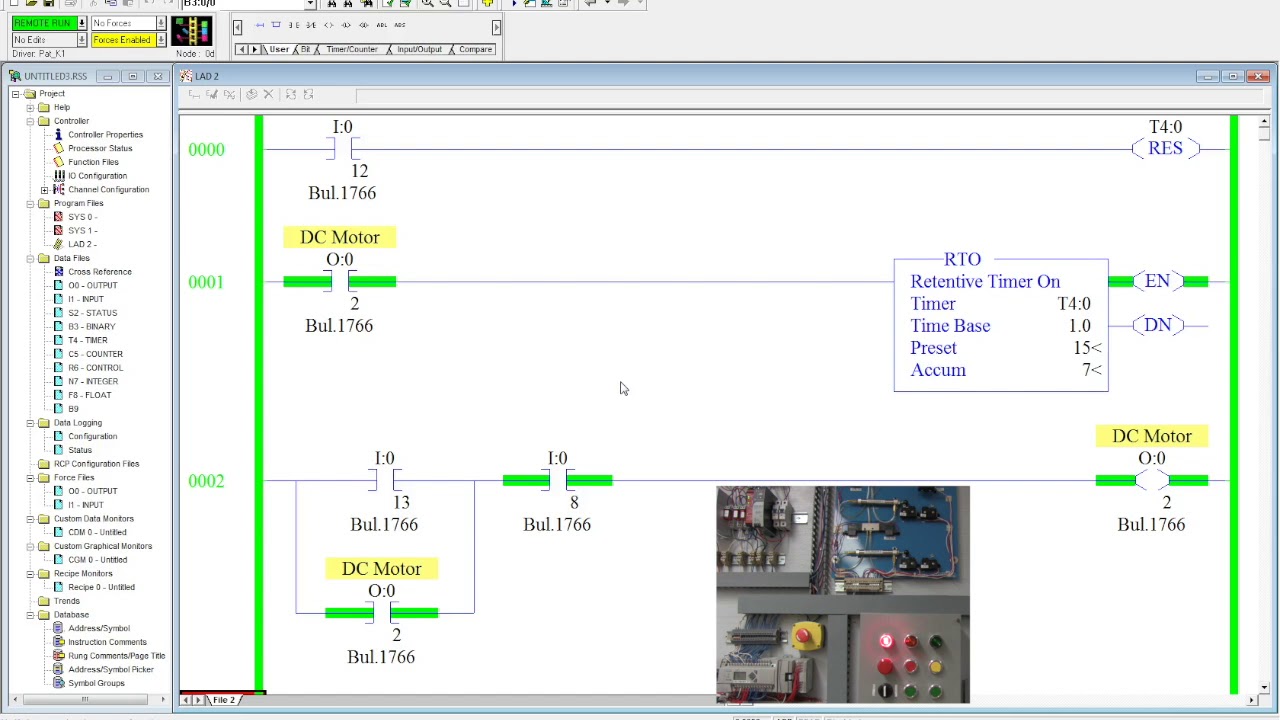

PLC timers are instructions that provide the same functions as on-delay and off-delay mechanical and electronic timing relays. A PLC timer provides a preset delay to the control actions. In general, there are three types of PLC timer delays, ON-delay timer, OFF-delay timer and retentive timer on. The terms represented in the timer block in the PLC are a Preset value which means the delay period of the timer, an Accumulated value which is the current delay of the timer. A timer begins the counting on time-based intervals and continues until the accumulated value equals the preset value. When the accumulated value equals the preset time the output will be energized. Then the timer sets the output. TON timer or ON delay timer An ON delay timer is used where we need a time delay before the time delay before an instruction becomes true. A representation TON timer is shown above, which contains, Timer number: The timer file name Time base: which is shown in seconds, Preset value: Numeric valve set as the delay required to the timer. Accumulated value: The values are counting is displayed from zero. Value becomes zero whenever the timer is reset The timer starts operating when the rung condition becomes true. The timer delay starts counting when the rung condition starts to accumulate. When the Preset value becomes equal to the accumulated value, the output is made true. The timed output becomes true sometime after the timer rung becomes true; hence, the timer is said to have an on-delay. The length of the delay can be adjusted by setting the preset value. TOFF timer or OFF delay timer: A TOFF timer will keep the output energized for a preset time after the rung signal has gone false. The TOFF timer will have all the contents as in the TON timer, with the similar function. Our Latest PLC-SCADA Video Collection RSLogix 500 User Instruction | PLC User Instruction | PLC Programming :-    • RSLogix 500 User Instruction | PLC User In...   Forward-Reverse Connection of Same Motor | PLC Programming :-    • Forward-Reverse Connection of Same Motor |...   TON Instruction | Time on Delay | PLC Programming :-    • TON Instruction | Time on Delay | PLC Prog...   TOF Instruction | TOF(Time off Delay) Timer | PLC Programming :-    • TOF Instruction | TOF(Time off Delay) Time...   Introduction to PLC | Basics & Example of PLC | PLC - SCADA PART 1 :-    • Introduction to PLC | Basics & Example of ...   Introduction to Automation | Types & Application of Automation | PLC - SCADA PART 2 :-    • Introduction to Automation | Types & Appli...   PLC to PC Communication with Ethernet | Profinet Protocol | PLC - SCADA PART 3 :-    • PLC to PC Communication with Ethernet | Pr...   PLC Panel Demo & Designing | PLC control panel components |:-    • PLC Panel Demo & Designing | PLC control p...   Fundamental of ladder logic | Electrical ladder Diagram :-    • Fundamental of ladder logic | Electrical l...   Fundamental of Ladder Logic programming :-    • Fundamental of Ladder Logic programming | ...   Basic Logic Gates | PLC ladder diagram example  :-    • Basic Logic Gates | PLC ladder diagram exa...   Motor start:stop logic with ladder logic | PLC Programming  :-    • Motor start:stop logic with ladder logic |...   Stair Case Logic | Stairs BULB On:Off | PLC programming  :-    • Stair Case Logic | Stairs BULB On:Off | PL...   Basics of PLC timers | Types of PLC timer :-    • Basics of PLC timers | Types of PLC timer ...   Timer On and Off Delays Example | PLC Programming Examples :-    • Timer On and Off Delays Example | PLC Prog...   PLC ladder logic programming eg | Timer ON/OFF delay eg:-    • PLC ladder logic programming eg | Timer ON...   Sequential delay example using timer | PLC ladder logic :-    • Sequential delay example using timer | PLC...   Automatic door System using Timer in PLC :-    • Automatic door System using Timer in PLC |...   Traffic light Control example using timer in PLC :-    • Traffic light Control example using timer ...   Share, Support, Subscribe!!! Subscribe: http://bit.ly/wscubechannel Google Reviews : https://goo.gl/LxpEsU Facebook :   / wscubetech.india   Twitter :   / wscube   Linkedin :   / wscube-tech   Google + : https://plus.google.com/+wscubetechjo... Youtube :    / wscubetechjodhpur   Website : http://wscubetech.com
