Top Case Keyboard & Battery Replacement | M1 Macbook Air 2020 Laptop Step by step

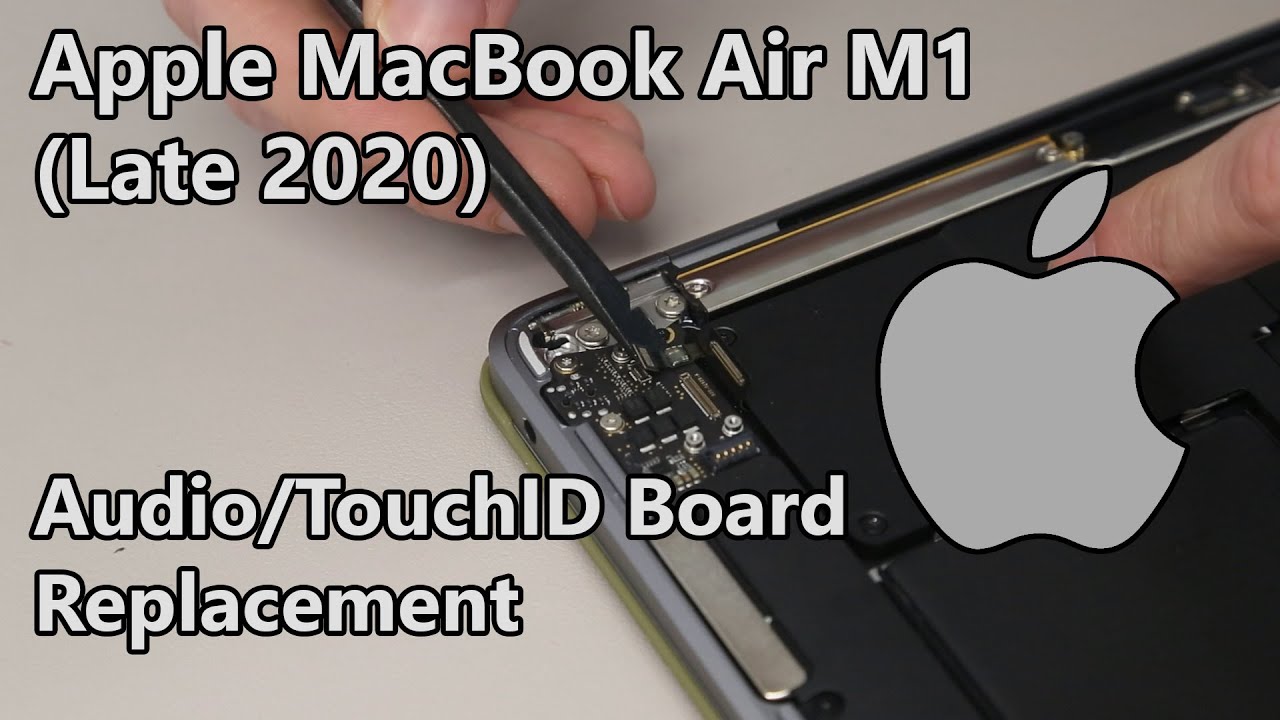

Join us for this macbook air repair. Take a look inside at all the components, learn about the process of taking these devices apart, some of the technology, and don't forget to subscribe for more! Ship us your device for repairs! 👉👉https://tekdep.com/repair/ Visit Our Website To Find All Parts & Tools 👉👉 https://www.TEKDEP.com 00:00 – Introduction Welcome to our MacBook Air M1 2020 top case replacement tutorial. Tools and parts linked below, including mail-in repair options. 00:33 – Removing the Bottom Case Flip the MacBook over and remove 10 pentalobe screws. Then, detach the bottom cover and disconnect the battery to ensure safety. 01:26 – Removing the LCD Hinges Using a T8 screwdriver, remove the six hinge screws to detach the LCD. This unit had severe liquid damage on the keyboard. 02:05 – Detaching Wi-Fi Antenna and LCD Switch to T5 to remove Wi-Fi module screws, then T3 to remove brackets securing the LCD and antenna connectors. 03:02 – Disconnecting Display and Antenna Cables Use a spudger to disconnect the LCD and Wi-Fi cables. Continue removing retention brackets and screws for the audio board. 03:54 – Disconnecting Touch ID and Audio Board Unplug Touch ID, audio board connector, and left speaker. Remove T5 screws securing the audio board. 04:39 – Removing the Logic Board Disconnect USB-C ports, speaker, keyboard backlight, and trackpad cable. Then remove the logic board and audio board. 05:44 – Removing Trackpad and Flex Cable Detach trackpad screws with a T5, unplug the cable, and peel it carefully from the battery. Then remove the trackpad and Touch ID. 06:43 – Assessing Liquid Damage Examine the trackpad and Touch ID for corrosion. The trackpad is damaged and needs replacement. 07:51 – Removing Wi-Fi Vent and LCD Wi-Fi vent module is glued in. Pry it carefully to release it. Then, detach the LCD assembly from the top case. 08:34 – Final Disassembly Steps Remove USB-C ports. Our replacement top case comes with preinstalled battery, speakers, and keyboard/trackpad daughter board. 09:09 – Installing New Top Case Mount LCD onto new top case and secure it with T8 screws to prevent screen damage during reassembly. 10:15 – Reinstalling USB-C Ports and Trackpad Secure USB-C ports. Insert new trackpad and align the Flex cable before fastening it down with screws. 11:51 – Reinstalling Touch ID Install Touch ID with 6 T3 screws. Use a cross pattern for even pressure. 12:50 – Installing Audio Board Inspect the board, reinstall it, and reconnect Touch ID and speaker cables. 13:36 – Reinstalling Logic Board Inspect the logic board. Reinstall and loosely secure screws before plugging in connectors. We offer advanced data recovery if needed. 15:01 – Reconnecting All Flex Cables Reconnect audio board, trackpad, USB-C ports, speakers, and backlight cables. 15:51 – Installing Wi-Fi Vent Module Ensure correct cable routing and screw the module in with four long T5s and two short black T5s. 16:44 – Final Connections and Brackets Reconnect LCD and Wi-Fi antennas. Secure retention brackets for trackpad, ports, Touch ID, and LCD. 18:31 – Power Test and Final Assembly Reconnect the battery, test with a charger, and once functionality is confirmed, reattach the bottom case. Instagram:   / tekdep   Facebook:   / tekdep.store   Twitter:   / tekdepc   Important Safety & Liability Disclaimer, TEKDEP™ / tekdep.com and the ownership assumes no liability for property damage or injury incurred as a result of any of the information contained in this website and all videos, blogs & pictures. TEKDEP™ recommends safe practices when working with electronics, batteries, or any other tools or equipment seen or implied in this video. Due to factors beyond the control of TekDep, no information contained in this website shall create any express or implied warranty or guarantee of any particular result. Any injury, damage or loss that may result from improper use of the tools, equipment, or the information contained in this website or Tekdep videos, blogs & social media is the sole responsibility of the user and not Tekdep. Only attempt your own repairs if you can accept personal responsibility for the results, whether they are good or bad and do your research before attempting any disassembly or repair, make sure you understand the risk you're taking.
