How I Make a Preamp-Out on my AB763 Deluxe Reverb Using a Switchcraft 114bx

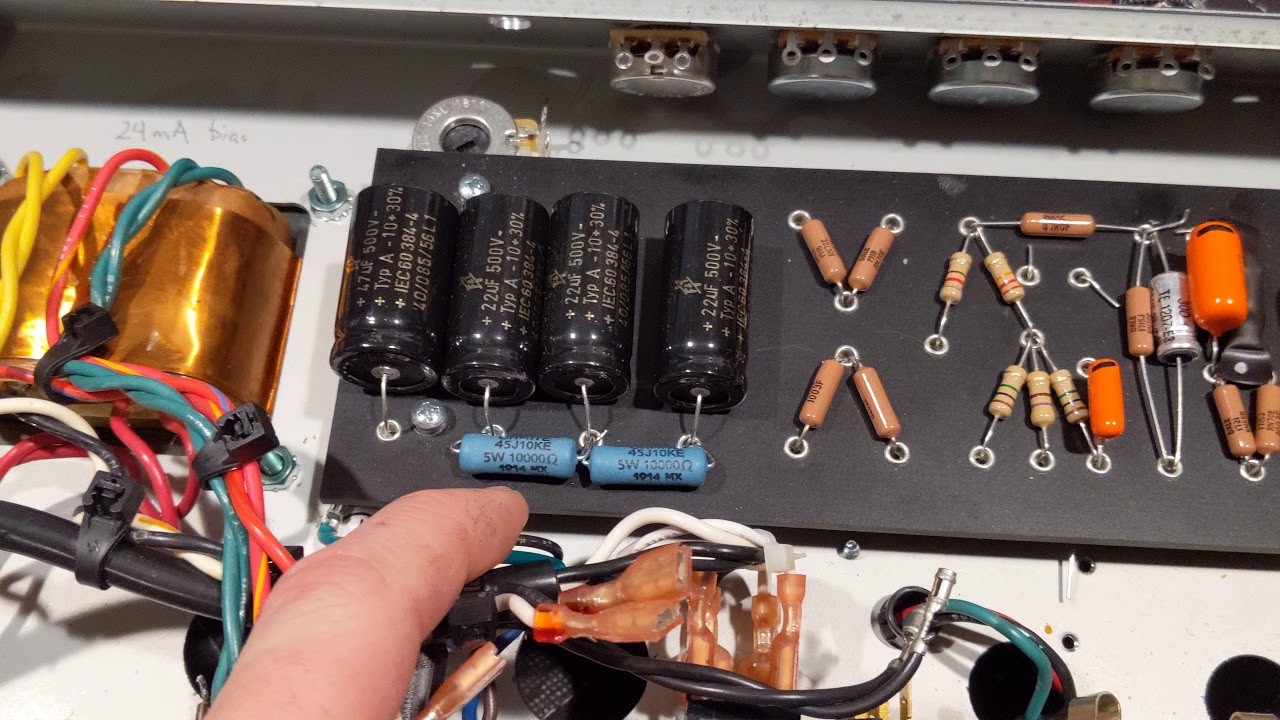

In-depth explanation how I utilize a Switchcraft 114BX to separate and safely tap into the preamp section of a Fender Ab763 for running into another amp or anything else you can come up with. My scheme grounds the signal going to the power amp so the combo speaker isn't heard when piping the signal to a high wattage power amp. PDF of my layout and DIYLC files can be found https://github.com/colganr/fender-del... List of tasteful modifications that I'm implementing that allows me to maintain an honest '65 vibrato channel circuit, but with additional tricks. I learned a lot of these tricks from comments on my YouTube channel as well as from Rob Robinette's website. NOR channel tone stack will be a Fender Custom Shop Dual Professional stack Polyester Orange Drop capacitors - (Original '65 used polyester, the DRRI uses polypropylene blahh) Metal film resistors anywhere that's going to ground as well as RN70 plate load resistors Mogami coax internal wiring for sensitive signal areas Silver Mica caps replace all-ceramic caps Move the power supply from the dog house to inside the amplifier NOR channel added reverb Wirewound power supply resistors for the lowest thermal noise floor VIB/NOR channel with push/pull volume pots for bright cap Mid pots added in place of Input 2 on both channels Alembic style preamp out so I can run the preamp into another power amp (like my SSS) 😎 Jerry Garcia style mod Vibrato disconnect switch like SRV's Vibroverb 50KRA with switch https://www.tedweber.com/wp503ras Virtual Tip Jar: https://paypal.me/thetonegeek www.TheToneGeek.com #ab763 #jerrygarcia #deluxereverb
