Import and Trace a Picture in a SOLIDWORKS Sketch - Tech Tip

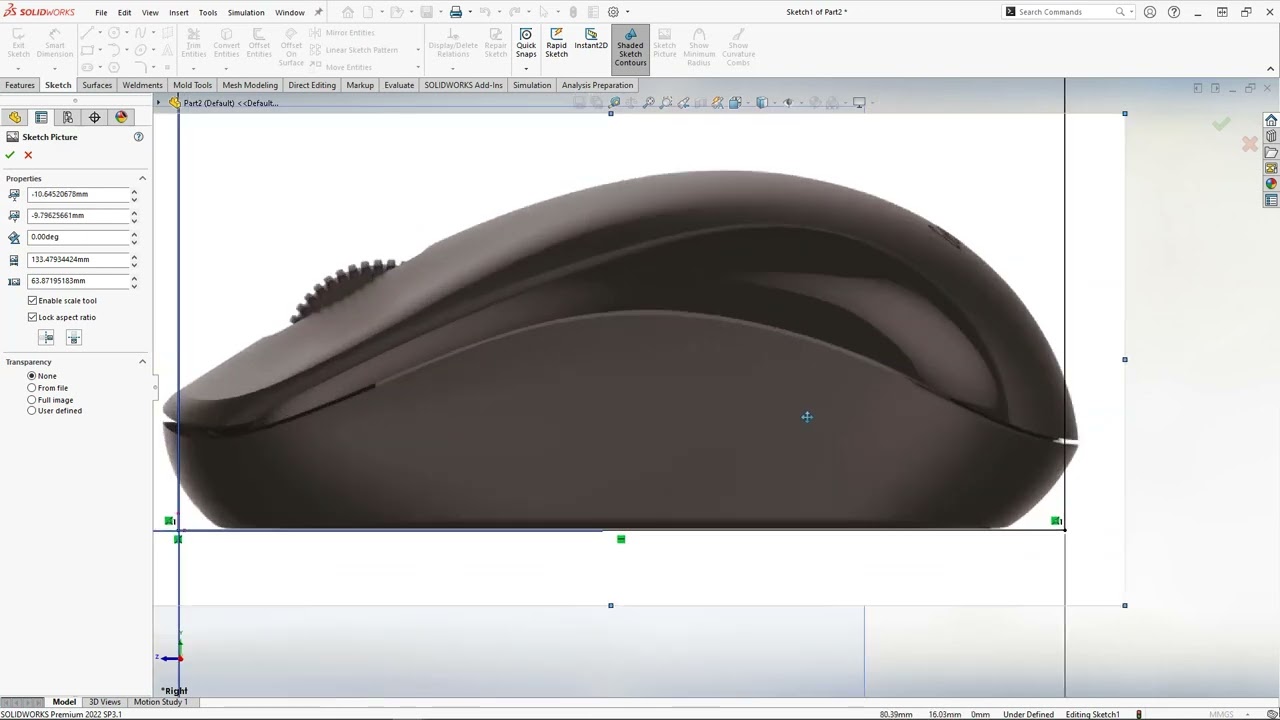

Learn more helpful SOLIDWORKS tips and get help from the experts at https://www.mlc-cad.com/ Import pictures into a sketch and quickly scale them to the correct size to make tracing or drawing over existing geometry fast and easy. Background colors or alpha channels can be hidden to show only the object of interest. High-resolution images provide the best results, but any image can be used as a guide. The scale tool creates a reference line that can be located on the image and sized to give the image a realistic scale. Learn more about MLC CAD Systems training solutions here: 💥https://www.mlc-cad.com/training Let us do the heavy lifting for you: 💥https://www.mlc-cad.com/services/ SOLIDWORKS Implementation Services, Data Migration, CAD Servers, CAM Post Process Services, Hosting Solutions, & more! See what upcoming events are in your area: 💥https://www.mlc-cad.com/mlc-events/ This tech tip was taken from the webinar "Powerful Overlooked Tools in SOLIDWORKS" Full Webinar:    • 7 Powerful Overlooked SOLIDWORKS Tools   Advanced Selection:    • Advanced Selection and Selection Sets - SO...   Annotation Styles:    • Save and Re-use Annotation Formatting with...   Sketch Pictures:    • Import and Trace a Picture in a SOLIDWORKS...   Fit Spline:    • Continuous Curves from Sketch Entities wit...   Project and Composite Curve:    • Project Curve and Composite Curve - SOLIDW...   Modify Sketch:    • Modify Sketch - SOLIDWORKS Tech Tip   FilletXpert:    • How to Use the FilletXpert - SOLIDWORKS Te...
