Multispan Multi Function Meter: MFM 13 Product Guide

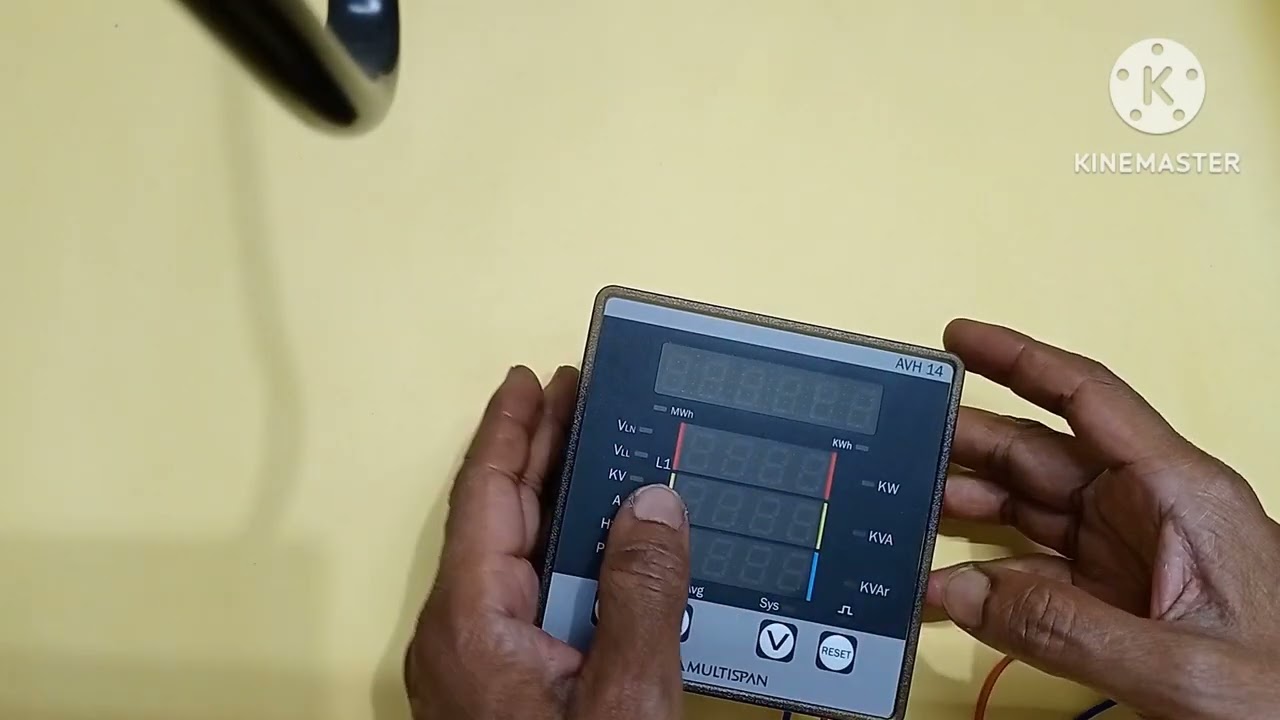

This video is a product guide for the Multispan MFM 13 Multi-Function Meter, detailing its connection, specifications, and parameter settings. Since the original YouTube description was not available, I have provided a detailed summary with time-stamped chapters and relevant tags/hashtags, as requested. Video Summary and Chapter Timestamps [00:01]Introduction to MFM 13 Multi-Function Meter [00:09]Auxiliary Supply and Voltage Connections (Line/Neutral, R-Y-B Phase connections, System Neutral). [00:47]CT Secondary Wiring Connections (S1/S2 for R-Phase, Y-Phase, and B-Phase). [01:03]Pulse Output Function (Use in HMI/PLC for KWh increment monitoring). [01:15]Barcode for Calibration Certificate Download [01:25]Voltage, PT, and CT Range Specifications (Line-to-Line/Line-to-Neutral Volts, Primary/Secondary PT, Primary/Secondary CT up to 6000A). [02:04]Meter Power-Up and Initial Display [02:22]Basic Parameter Setting (Password 10) (Includes setting CT/PT ratios and network type) [02:41]Network Selection (3-Phase 4-Wire, Single Phase, 3-Phase 3-Wire). [02:53]CT Primary Ratio Setup. [03:09]CT Secondary Ratio Setup (By 1 or By 5). [03:15]PT Primary Ratio Setup. [03:31]Basic Mode vs. Advanced Mode Selection. [03:52]Resetting Energy Values (Password 15) (Option to reset all or individual energy parameters like KWh, Apparent Energy, and Reactive Energy). [04:56]Load Hours & Pulse Selection Setting (Password 25) (Configuring parameters for load monitoring and pulse output). [05:15]Load Hours/No Load Hours Setup and Load Percentage Threshold. [05:43]RPM Enable/Disable and Motor Pole Setting. [05:56]Pulse Timing Setup. [06:08]Pulse Mode Selection (Auto/Manual) and KWh Increment per Pulse Setup. [06:47]Changing Display Pages (Viewing Voltage, Amperes, Frequency). [06:59]Direct Access to Power Parameters (Active Power (KW), Apparent Power, Reactive Power, Energy Units). [07:35]Direct Access to V-A-F and Power Factor (PF) Display [08:01]Conclusion #MultispanMFM13, #MultiFunctionMeter, #MFM13, #WiringGuide, #ParameterSettings, #ElectricalMeter, #ProductGuide, #EnergyMeter, #CTPT, #LoadHours, #MultispanSupport, #ElectricalPanel, #IndustrialAutomation, #MeterSetup, #ElectricianTools
