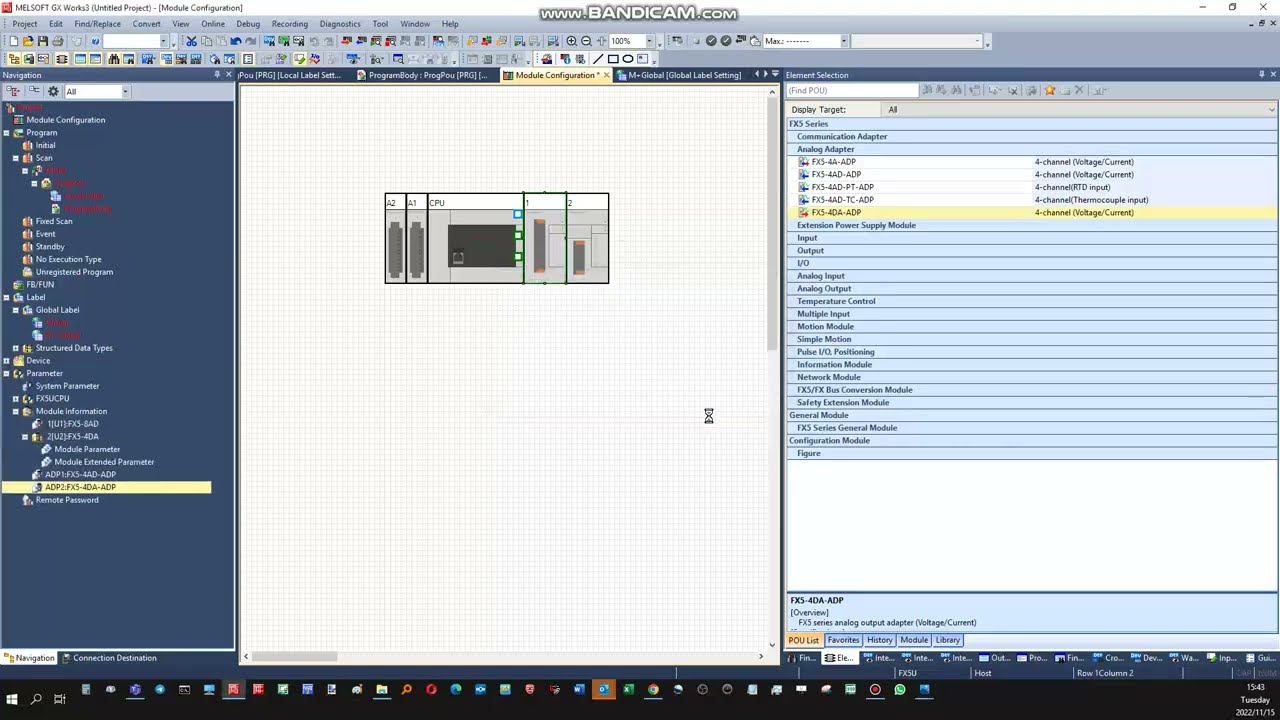

GX Works3 Melsec iQ F Analog Signals Part2 Special Devices and Buffer Memory

Some key basic points are required to be known prior to the successful utilization of the Analog signal (continuous, real-time) inputs. In this specific article, we are looking at the two built-in AI IO facilities. The First key point is that these inputs are designed for a 0-10Vdc signal spectrum range only. Signal spectrums outside of this range or type (mA) are required to be converted first – via an external signal converter. Secondly, the Analog-digital resolution PLC range is from 0 to 4000. (also known as the digital resolution). The digital resolution represents the physical analog input signal in a linear fashion and thus is linearly scalable in order to attain the desired instantaneous engineering value. And third, is the device register address allocation – for user access to the digital resolution. -which is further utilized in the PLC program (such as for scaling and alarming). for more information : https://www.mymitsubishisupport.co.za...
