Replacing the optical lens in a Stanton C.324 Turntable Part 1

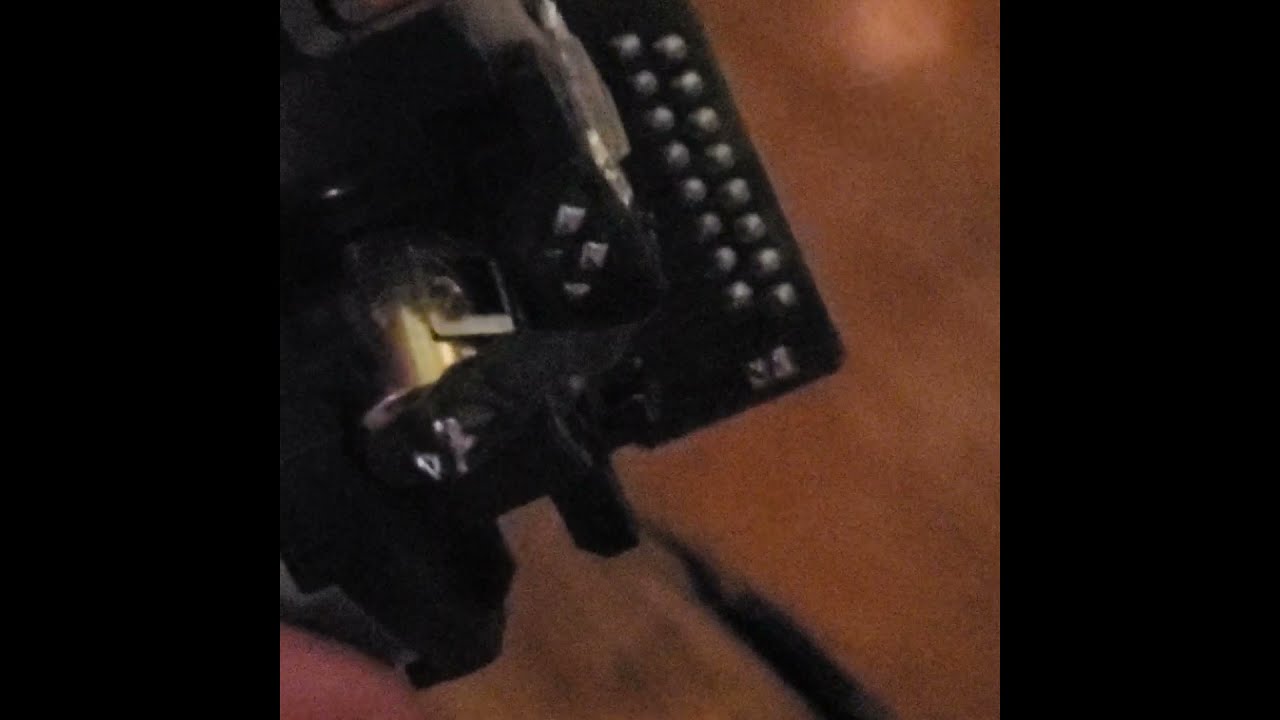

Replacing the Optical Lens in the Stanton C.324 Turntable These instructions will assure that you replace the Optical Lens correctly within your Stanton C.324 turntable. Follow the steps closely and thoroughly. You will need: 3.5, and 2.5 millimeter Phillips heads / Screwdrivers 7/32 – 15/64 Wrench Remove (Represented as “R”) R: 4 screws from the 4 footprints on the bottom of the turntable using 3.5 mm Philips head. R: 10 screws from the back panel using 2.5 mm Phillips head. R: 3 screws directly next to the “Power Panel” using 3.5 mm Phillips head. Pull apart housing to view a black wire that’s connected to the back plate. R: 1 screw holding black wire to back plate using 2.5 mm Phillips head. Flip housing over to expose the CD Drive R: 3 connecting wires from CD Drive that connect to the parallel panel. R: 4 screws holding CD Drive in place using 2.5 mm Phillips head, you will need to use the 7/32 wrench to leverage nuts on the outward side of the back panel. R: CD Drive from housing. R: Two wires connecting the Optical Lens plate to the CD Drive R: 4 screws holding in Optical Lens plate using 2.5 mm Phillips head. Replace (Represented as “RP”) RP: Optical Lens plate to the CD Drive. RP: 4 screws holding in Optical Lens plate using 2.5 mm Phillips head. RP: Two wires connecting the Optical Lens plate to the CD Drive RP: CD Drive to housing. RP: 4 screws holding CD Drive in place using 2.5 mm Phillips head, you will need to use the 7/32 wrench to leverage nuts on the outward side of the back panel. RP: 3 connecting wires to CD Drive that connect to the parallel panel. RP: 1 screw holding black wire to back plate using 2.5 mm Phillips head. Connect front and back housing RP: 3 screws directly next to the “Power Panel” using 3.5 mm Phillips head. RP: 10 screws to the back panel using 2.5 mm Phillips head. RP: 4 screws to the 4 footprints on the bottom of the turntable using 3.5 mm Philips head. Thus concludes the replacement of the Optical Lens within the Stanton C.324 turntable. For further help, visit youtube.com for visual tutorial: Part One:    • Replacing the optical lens in a Stanton C....   Part Two:    • Видео   I created this video with the YouTube Video Editor (   / editor  )
