Solid Edge Tutorials #37 | How to use Helix command (Helix Protrusion & Helix Cutout)

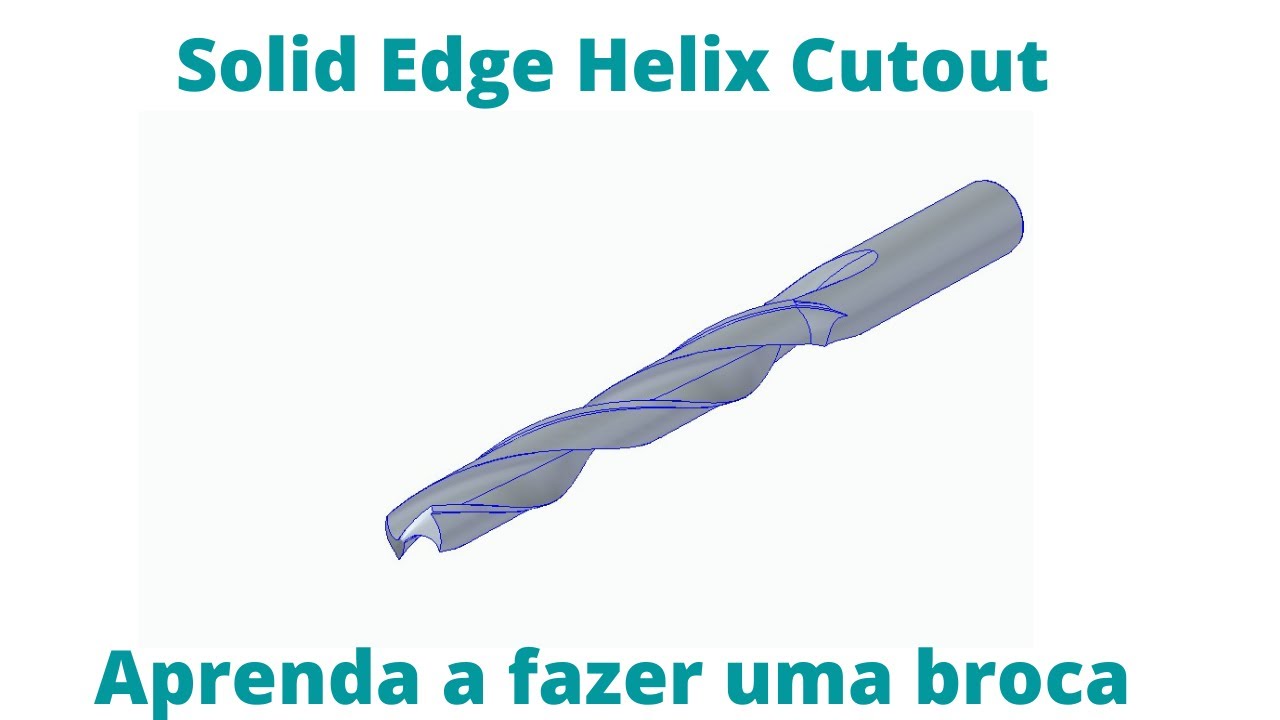

You can construct helical features with a cross section that is parallel to the helix axis or perpendicular to the helix axis. The steps for the two options are slightly different. With the Parallel option, the command bar guides you through the following workflow: Axis & Cross Section Step—Define the plane or sketch for the helix axis and cross section. Within this step you can define the axis and cross section sketch. Draw Axis and Cross Section Step—This step is automatically activated when you define the reference plane for the helix. When editing a helix, you can select this step to edit the helix axis and cross section profile. Start End Step—Define start end of the helix axis. Parameters Step—Define the parameters for the helical path. Extent Step—Define the depth of the feature or the distance to extend the profile to construct the feature. With the Perpendicular option, the command bar guides you through the following workflow: Axis Plane or Sketch Step—Define the plane or sketch for the helix axis. Draw Axis Step—This step is automatically activated when you define the reference plane for the helix axis. When editing a helix, you can select this step to edit the helix axis. Cross Section Step—Define the plane or sketch for the helix cross section. Draw Cross Section Step—This step is automatically activated when you define the reference plane for the helix cross section. When editing a helix, you can select this step to edit the helix cross section. Parameters Step—Define the parameters for the helical path. Extent Step—Define the depth of the feature or the distance to extend the profile to construct the feature. For both options, when you have finished defining the path, cross section, parameters, and extent of the helix, the last step is to preview and finish the feature. 🔜Please SUBSCRIBE to update more new tutorials: https://www.youtube.com/c/CADCAMLearn... FOR MORE TUTORIALS 🔸 Full Solid Edge Design Tutorials:    • Solid Edge Design Tutorials   🔸 Full Solid Edge Assembly Tutorials:    • Full Solid Edge Assembly Tutorials   🔸 Full Solid Edge Sheet Metal Tutorials:    • Solid Edge Sheet Metal   🔸 Full Solid Edge Simulation Tutorials:    • Solid Edge Simulation (FEA) tutorials   🔸 Full of Mechanical Mechanism Assembly & Motion Simulation:    • Full of Mechanism Assembly & Motion Animat...   🔸 Full of Mechanical Mechanism Animation:    • Mechanical Mechanism Animation playlist   🔸 Full NX Modeling Tutorials:    • Siemens NX Modeling tutorials   🔸 Full NX CAM Tutorials:    • Full NX CAM Tutorials   🔸 ProgeCAD Tutorials:    • Mix progeCAD video tutorials   ------------------------------------------------------------------------------------------- 🏠 4CTECH VIET NAM TECHNOLOGY COMPANY LIMITED 🏗 Consulting and Providing CAD CAM software solutions in Vietnam ☎ Contact us: Phone: + 84 968 023 855 | Email: sales@4ctech.vn 📡 Website: www.4ctech.vn * www.4ctech.com.vn ------------------------------------------------------------------------------------------- #HelixCommand #SolidEdgeTraining #SolidEdgeTutorials
