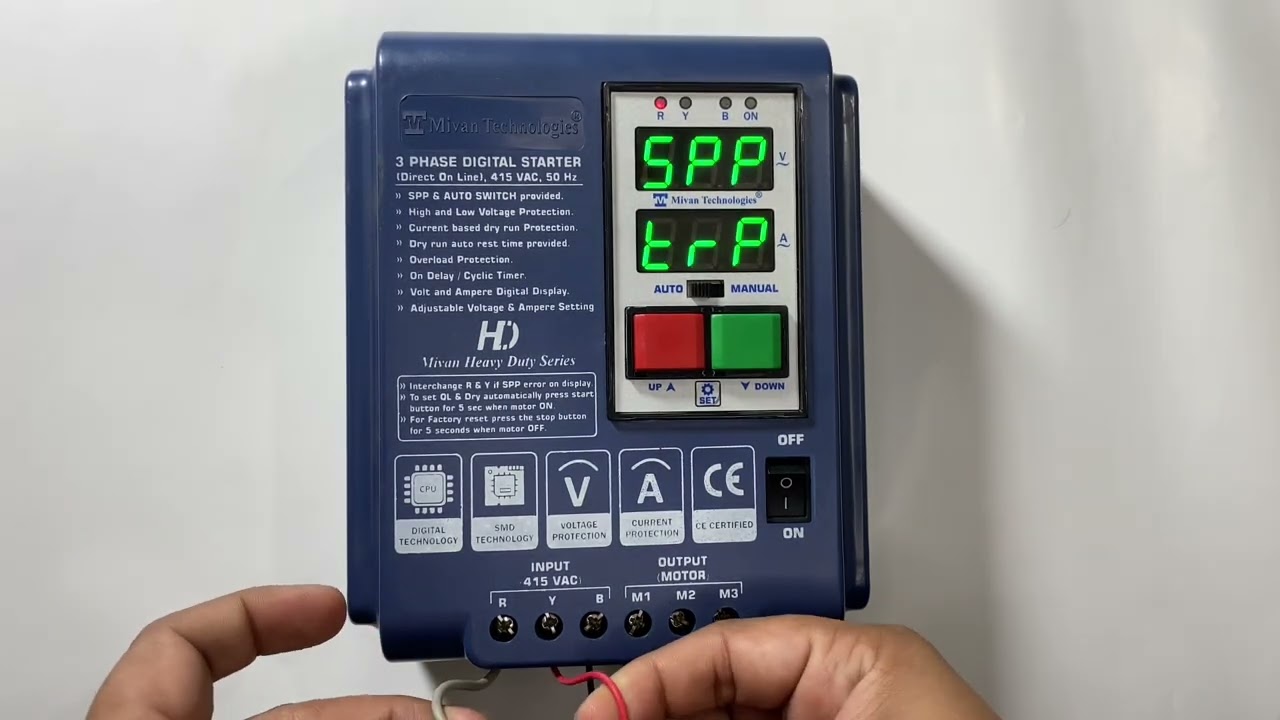

How to test and program DP301S HD digital DOL Motor starter from Mivan Technologies

click on link to buy https://www.mivan.co.in/product/1297 to book it online. Warranty : 2 Year Manufacturer. Warranty Service : Repair or Replacement. Package Contain : 1 Digital Starter 1 user manual 1 Warranty card of 2 years warranty 4 Screw and Hole plugs 1 Drill template Product Descriptions : Digital DOL motor starter for 3 phase motor and submersible pump Auto Bypass Switch provided. (In Auto mode motor automatically start in 45 seconds without pressing start button and in manual mode motor start by pressing start and stop button) Relay rating : 40 A 3 pole Input : R (Phase), Y (Phase), B (Phase) (Supply - 415 VAC) Output : R (Phase), Y (Phase), B (Phase) (motor or pump connections) Auto Switch Provided Auto switch timer provided (when power goes and comes it will start with preset time,) timer adjustable Auto Bypass Switch provided. (In Auto mode motor automatically start when power goes and comes and in manual mode motor start by pressing start and stop button) SPP provided It protect motor from phase failure. In 3 phase motor. Out of 3 phase if any phase failed then motor run in 2 phase and motor winding gets burn. It protect motor from phase interchange. Out of 3 phase if any phase changed, then motor rotate reverse in this case motor winding gets burn It protect motor from voltage different between 3 phase, Voltage between 3 phase must be same Micro controller based design Digital Volt and ampere meter are provided to see system voltage and load current accordingly. Two seperate display for volt and amp. high voltage protection, low voltage protection, Adjustable voltage limit (High and low both voltage protection limit adjustable) overload protection Adjustable overload from 0 to 30 A Current based dry run protection provided Adjustable dry run current from 0 to 30 A Voltage and Current calibration facility Short circuit protection protection bypass facility Cyclic timer provided with bypass facility (adjusatble from 0 second to 999 min) If user want start and stop the motor on perticuler time then user can set the on and off time of cyclic timer Delay off timer provided with bypass facility (adjusatble from 0 second to 999 min) If user want to stop the motor after certain time then they can set the delay off timer. in this timing mode user can start the motor by pressing start button and it will auto stop based on preset delay off time. On delay timer and off delay time provided (adjusatble from 0 second to 999 min) If user want to start the motor after certian time then they can use this timer. Auto switch provided with bypass facility (When power goes and comes it will start the unit automatically) Auto switch timer adjusatble from 0 second to 999 second Input Voltage : 415 VAC Output Voltage : 415 VAC High accuracy in over load and dry run current Auto and bypass mode available User can bypass all the protection from setting Isolated supply provided Error messages shows on display RESET button provided to reset unit Start and stop button provided to start and stop motor Set button provided to set the current voltage and timer. Reset button provided to reset the unit Factory reset facility in case of incorrect value entered. Motor side current unbalance protection provided Phase to Phase Current differents are adjustable Phase to Phase Voltage differents are adjustable Voltage and Current calibration facility Suitable for motor up to 10 HP High quality ABS Enclosure
