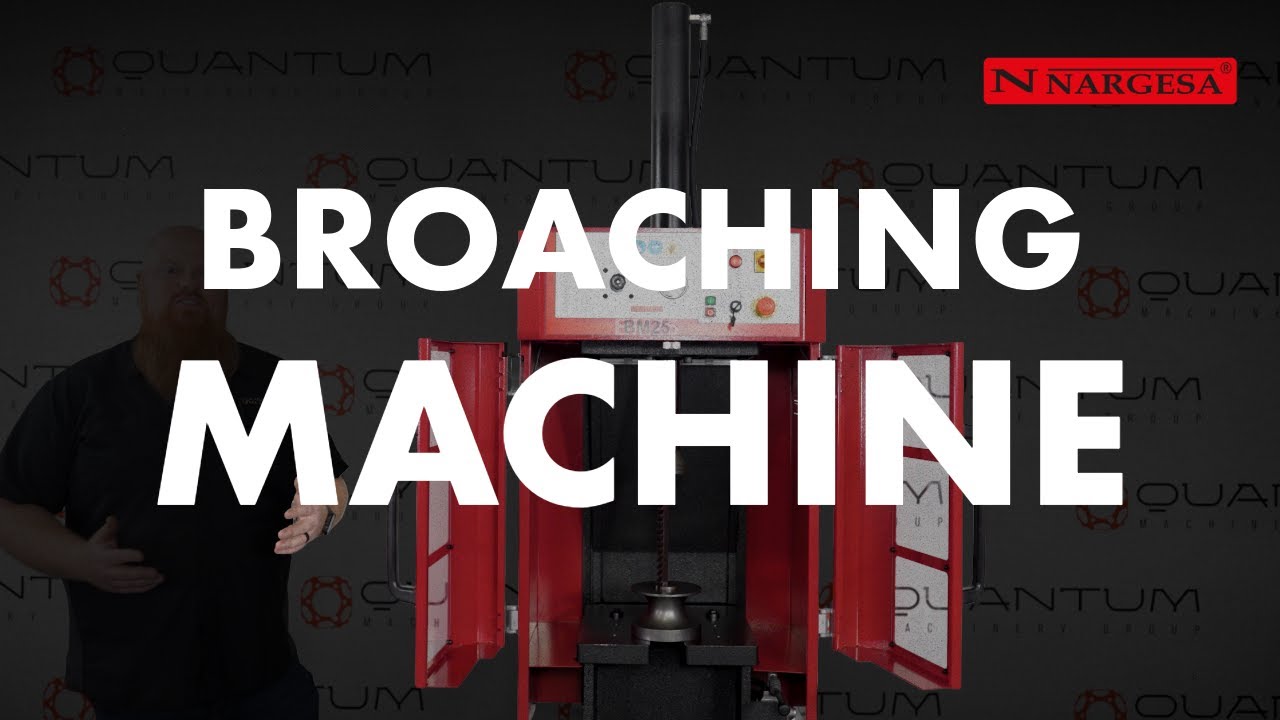

The NARGESA BM25 VERTICAL BROACHING MACHINE (Stocked in the USA by Quantum Machinery Group)

To view all of the specs on the Nargesa BM25 Broaching Machine, please click on the following URL: https://www.quantummachinerygroup.com... In this audiovisual, we show step by step the operation and adjustment of this mortising machine, kinds of broaches of different sizes, shapes and materials, broaching times... all by some simple and practical examples. We keep on with the constant evolution of all the industrial machinery that we manufacture and providing our customer with all the tools so that he can get the best profit and productivity out of his machine for many years. The Hydraulic Broaching machines BM25 NARGESA is a machine to make notches or key-ways in all kind of pieces: sprockets, pulleys, gears, bearings... SPECS/CHARACTERISTICS OF THE NARGESA BM25 BROACHING MACHINE: Motor power: 2.2 Kw / 3 Hp. 3-phased tension: 230 Volt or 480 Volt Hydraulic power: 10 Tons Max. broaching capacity: 0.98" (25 mm) Working speed: 0.94"/s. (24 mm/s.) Return speed: 2.125"/s. (54 mm/s.) Pump Flow: 7.5 liters. Capacity of Hydraulic Tank: 25 liters Shank displacement: 23.6" (600 mm) Goosneck: 11.8" (300 mm) Max. piece diameter: 23.6" (600 mm) (For different sizes, please ask the manufacturer​) Bench Dimensions: 16.5" x 16.5" (420 mm x 420 mm) Hydraulic Broaching machine BM25 NARGESA has been fabricated in a welded and mechanized steel mono-block. It's a machine useful for making notches and key-ways in all kinds of pieces: sprockets, pulleys, gears... It is also used like a press to unbolt oxidated parts, assembling and dismantling bearings... The Vertical Broaching machine BM25, has been thought for small medium productions, it is characterized by its great versatility, reliability, easy use, fast setting up and effectiveness: Versatility: It’s used for making small and big pieces. All kinds of broaching and different tolerances. 2 mm key-ways from 2 up to 25mm or 1” inch. It is also used like a press to unbolt oxidated parts, assembling and dismantling bearings... Reliability: Because of its use, the key-way is always made with the required tolerance and parallelism. Easy use: Anyone can make a key-way, there's no need to be a skillful operative. Fast setting up: The preparation time of the machine before making a broaching operation is approximately 1 min. Effectiveness: The machine can be moved easily next to a lathe or machining center. While those machines work, the same operative can make the broaching operation. Structure Mechanized single-block bench Lower bench palatalized to move the machine easily to the working site or storage. LED front lightning. Manual operation for a better broaching control. Low noise level which improves the working quality of the operator. Front poly-carbonate protection that allows to see the broaching process. Front opening with safety hinges. Tooling supplied as standard for the positioning of the parts. This tool is adjusted and fixed to the work bench in the exact position so that the broaching piece is placed easily and quickly in its correct position. There is no need to hold the piece. Hydraulic oil CEPSA HYDRAULIC HM 68 Control panel The control panel is very intuitive and easy to use. It includes the conversion chart from pressure to tons. Broaching pressure regulator with pressure manometer. Safety The Broaching machine BM25 incorporates all safety devices according to CE regulations. Our Machinery Website: https://www.quantummachinerygroup.com Our Welding Table Website: https://weldingtablesandfixtures.com Quantum Machinery Group is a Leading U.S. Supplier of Metalworking Machinery/Equipment and Welding Tables. NEW Machines and Welding Tables are IN STOCK and readily available for immediate shipment. Call or email our Quantum Machinery Sales Engineers Today for your Next Machinery Purchase!! - (909)476-8007 | Sales@QuantumMachinery.com Quantum Machinery Group specializes in, offers, and stocks: • Welding Tables and Fixtures • Roll Benders / Angle Rolls • Plate Benders / Slip Rolls • Press Brakes • Cold Saws • Band Saws • Tube and Plate Laser Cutting Systems • Ornamental Working Machinery • Rotary Benders • Iron Workers • Shears • Cutting Lines • End Formers • Twisting/Scrolling Bending Machines • Horizontal Press Brakes • Broaching Machines • End-Wrought Iron Machines • Gas Forges • Iron Embossing Machines • Welding Positioners • And more!! Visit us online at - www.QuantumMachineryGroup.com or come visit us at our Showroom, located at: 10270 Birtcher Drive Mira Loma, California 91752 Our Machinery Website: http://www.QuantumMachineryGroup.com Our Welding Table Website: https://weldingtablesandfixtures.com Our Twitter:   / quantummachines   Our Instagram:   / quantummachinerygroup   Our Google+: http://www.Plus.Google.com/+Quantumma... Our Facebook:   / quantummachinery
