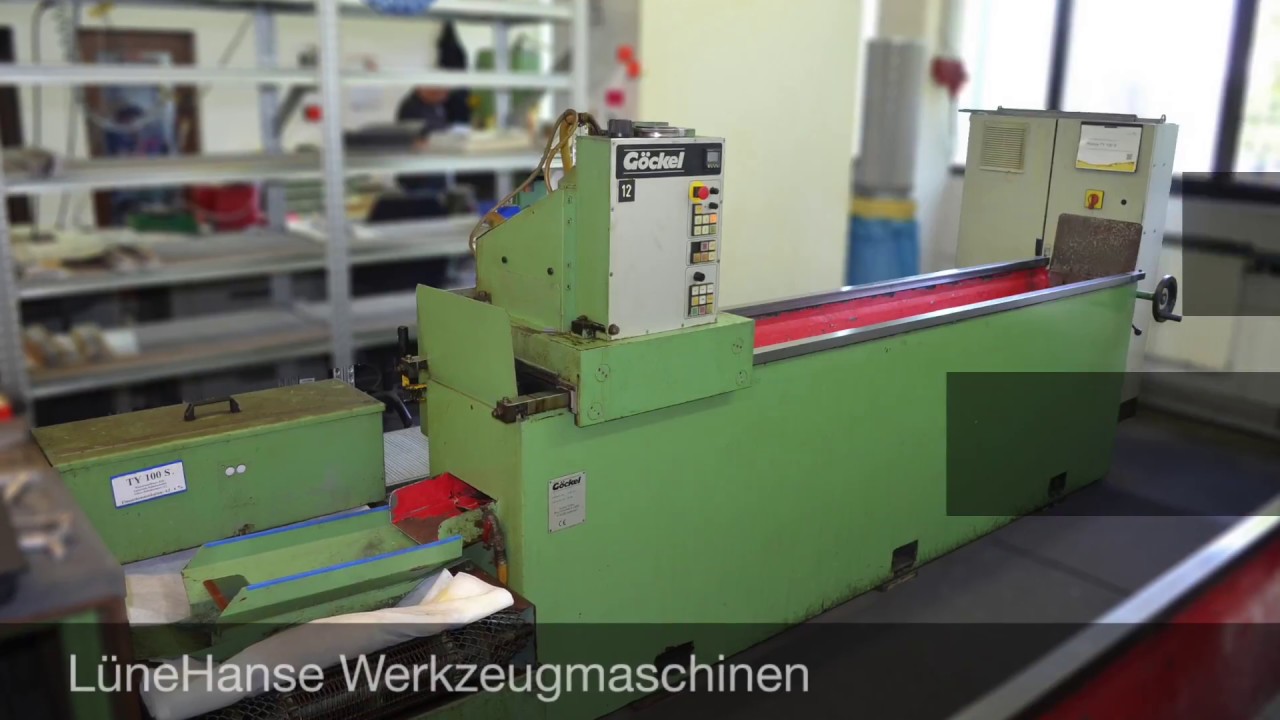

GÖCKEL G55elT Knife Grinder

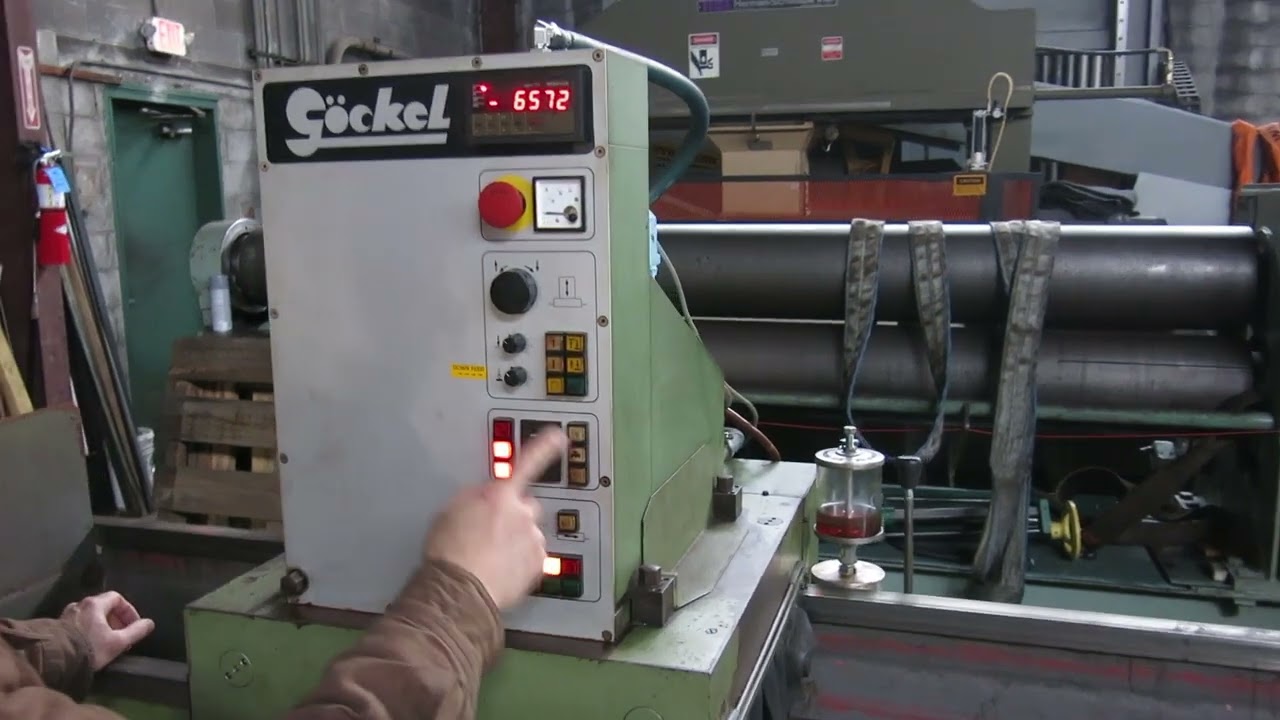

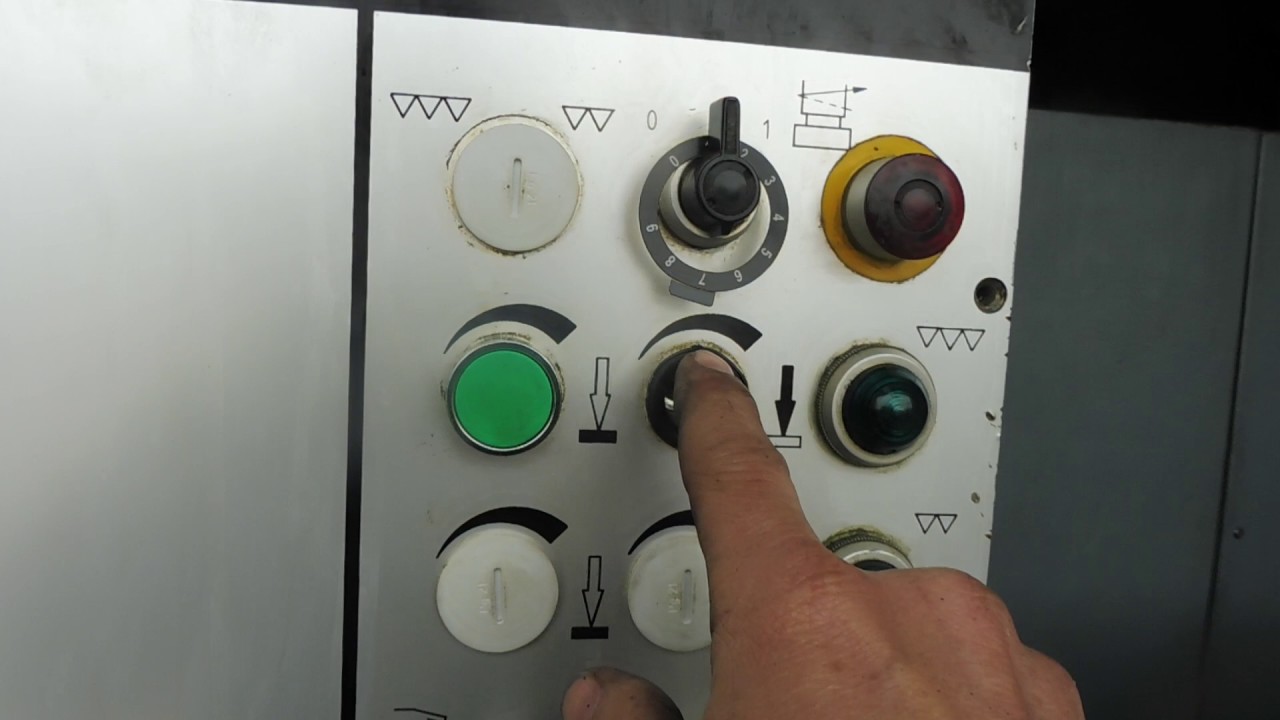

Grinding and superfinishing attachments for grinding and polishing straight knives of all kinds. Grinding motor capacity 7.5 - 15 kW (10 - 20 HP) Grinding lengths 1000 - 7000 mm Grinding head up to 300 mm diameter Grinding widths up to 275 mm Machine bed, welded construction in cell design. Guideways, hardened and ground way bands or hardened and ground solid ways. Machine table, sturdy construction as fixed chuck (PL) or electromagnetic-rotating-chuck (el) or electromagnetic-double-chucks (eID) with adjustment and clamping device. Grinding carriage, cast iron construction with anti-liftrolls, support guiding system with tapered gibs. Impulse downfeed via play free ball screw system, digital AC-Servo drive, NC operator panel, rapid positioning. Grinding motor with strong hollow shaft and high precision bearings, tilt-able for cross and radial grinding. Grinding tool, ring wheels, segmental heads, diamond and CBN wheels. Traverse drive, variable adjustable via digital AC - Servo drive, helical toothed rack + pinion system. Coolant water through the hollow motorshaft and from the sides, filtration cleaning. Electric cabinet, separately installed. All data can be changed based to the individual requirements. .............................. Find out more Camco Cutting Tools Int'l pty. ltd. sales@camcointl.com +61 (0)3 8336 1500
