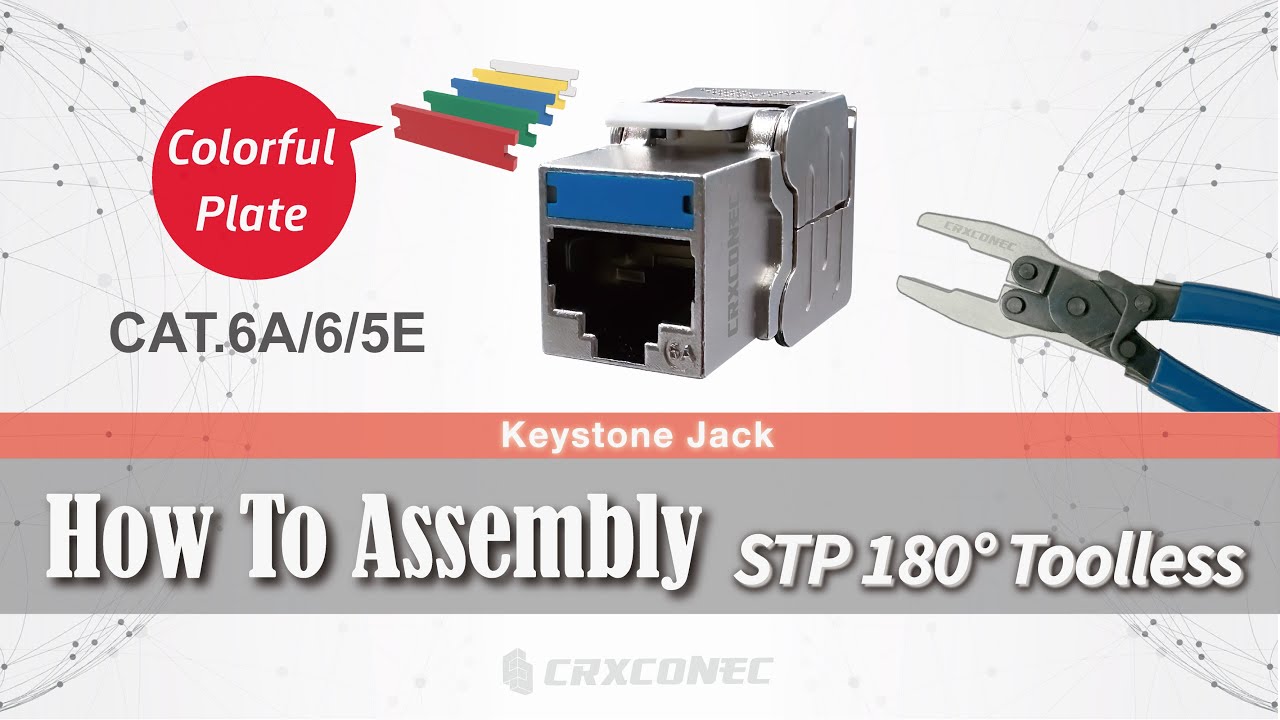

How to Assemble the Cat6A STP Multi-Entry RJ45 Keystone Jack with Rear Cable (180 degree) Entry

#Cat6A #RJ45 #KeystoneJack #STP #crxconec In this video, you’ll learn how to assemble the Cat6A STP Multi-Entry RJ45 Keystone Jack using the rear cable entry method—perfect for high-density, shielded, and PoE++ structured cabling environments. We'll show you step by step how to insert the cable into the IDC cap, starting by aligning the wires according to the T568A or T568B wiring scheme. Next, you'll firmly press each wire into the IDC slots to ensure a solid connection. Then, use a pressing tool to complete the termination quickly and accurately. Lastly, close the foolproof IDC cap to lock the wires in place and finish the assembly securely. This assembly method is ideal for installers seeking reliable, high-performance RJ45 keystone jack terminations in tight or rear-access applications. 📌 Don’t forget to like, share, and subscribe for more structured cabling tips and CRXCONEC product tutorials! #StructuredCabling #PoE #Networking #HighDensityCabling Video Time Codes: 00:05 Introduction 00:10 Required Tools 00:14 Step 1 Remove Jacket 00:19 Step 2 Brush the braid down and slightly open the foil 00:31 Step 3 peel off aluminum foil layer 00:39 Step 4 Put cap in and install the wires 01:23 Step 5 cut off excess wires 01:29 Step 6 Put on the IDC cap 01:35 Step 7 Organize the braid 01:47 Step 8 Use the pressing tool to compress it 01:54 Step 9 use cable tie to fix it and cut off the excess braid Product detail： Cat6A STP Multi-Entry RJ45 Keystone Jack with Shutter https://www.crxconec.com/en/product/C... ．Website：https://www.crxconec.com ．LinkedIn：  / crxconec   Catch us up on E-mail, Feel free to get more information ．annie@crxconec.com
