FIDIA MACHINE - GTF Q 35 Y2G 01

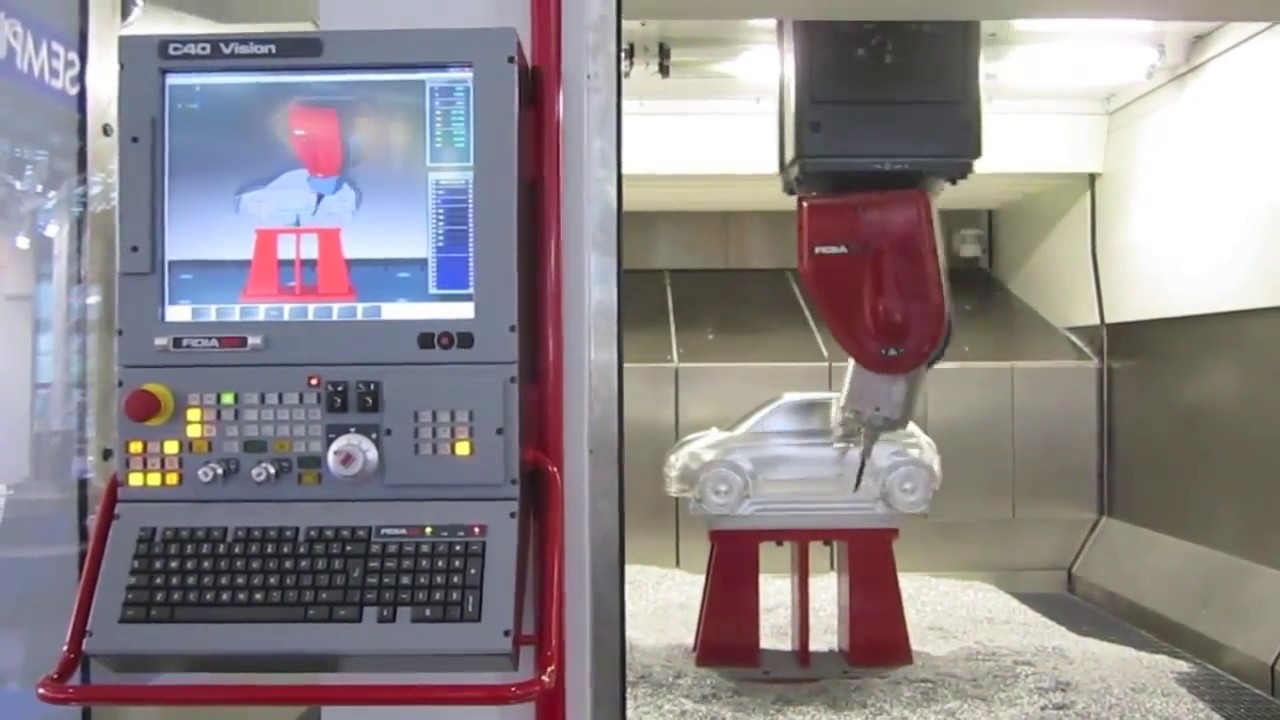

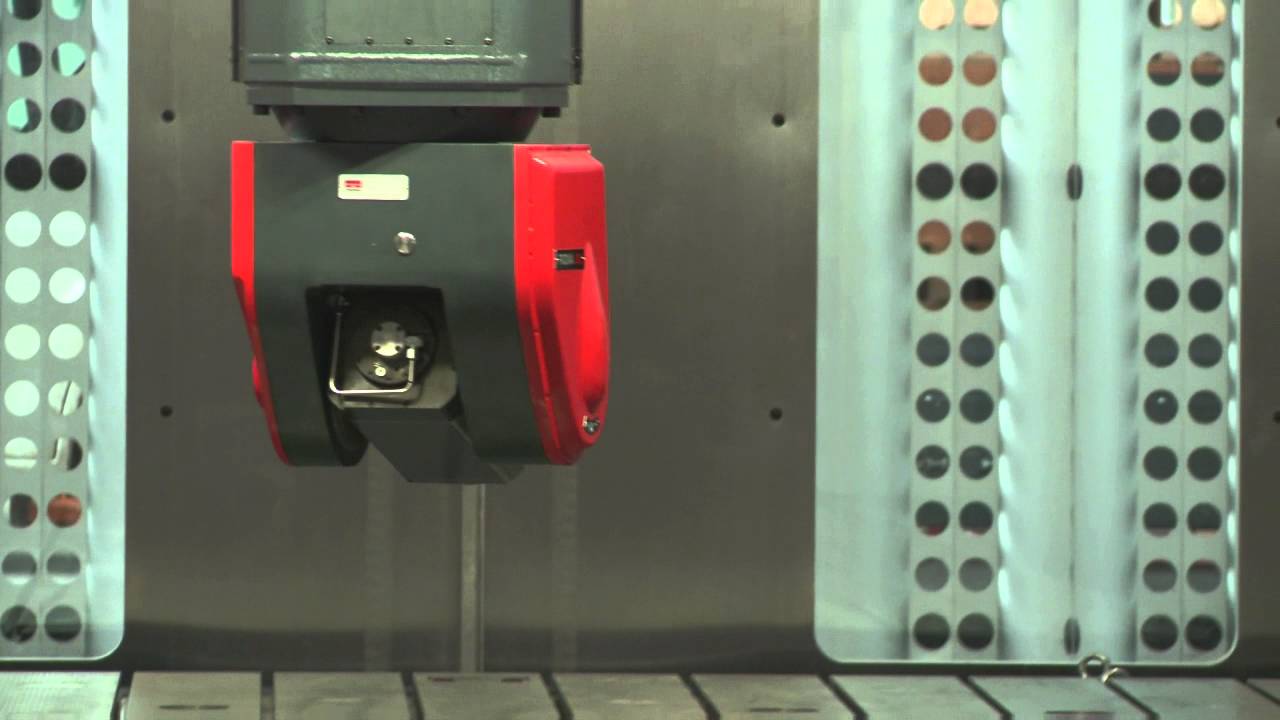

The new upper Gantry GTF line is characterized by great robustness. Thanks to its modular structure, and taking advantage from a combination of components conveniently selected according to weight, stiffness and cost requirements, the GTF range becomes an ideal solution to fulfill all customer's demand. Performances The harmonious sizing of its structures in accordance with the thermo-symmetry concept, perfectly matches with the extremely dynamic linear axes. In this way, speed and power are enhanced to grant the best performance. The vertical axis integrates the versatile FIDIA continuous bi-rotary head capable of high speed removal rate for 3+2- and 5-interpolated axis machining. The FIDIA integrated technology system, including both drives,numerical control and optical scales, offers the most complete and performing equipment, granting the customer with both quality and reliability of one-single-source supplier. Applications GT machines offer a full range of models with modular work envelope. The main applications are for the machining of large plastic injection moulds, automotive stamping dies as well as structural components for the Aerospace Industry. Tailored equipping systems The GTF machine is so versatile that can be easily adapted to both the machining of different kind of materials, and the environmental and logistical conditions of workshop. Customized chip onveyors, dust removal and filtering systems, in addition to machine protections, front panel units, and chilling systems have been developed accordingly. Continuous bi-rotary head Series GTF machine tools are provided with continuous, powerful, compact birotary heads. A and C axes can machine both through- high dynamics - continuous interpolation, and through the positioning mode, with the operator interactive command. In case of high volume removal operations, the axes can be stiffly clamped by means of powerful hydraulic brakes. Fidia head, equipped with a built-in spindle driven through asynchronous motor, is provided with servomechanisms (automatic backlash recovery), and it is able to perform 0.001° resolutionpositioning for any type of machining: both 5-axis roughing and finishing operations. Its compact structure eases the tool access to the most critical surfaces.
