QUICK worktop connector - Italiana Ferramenta

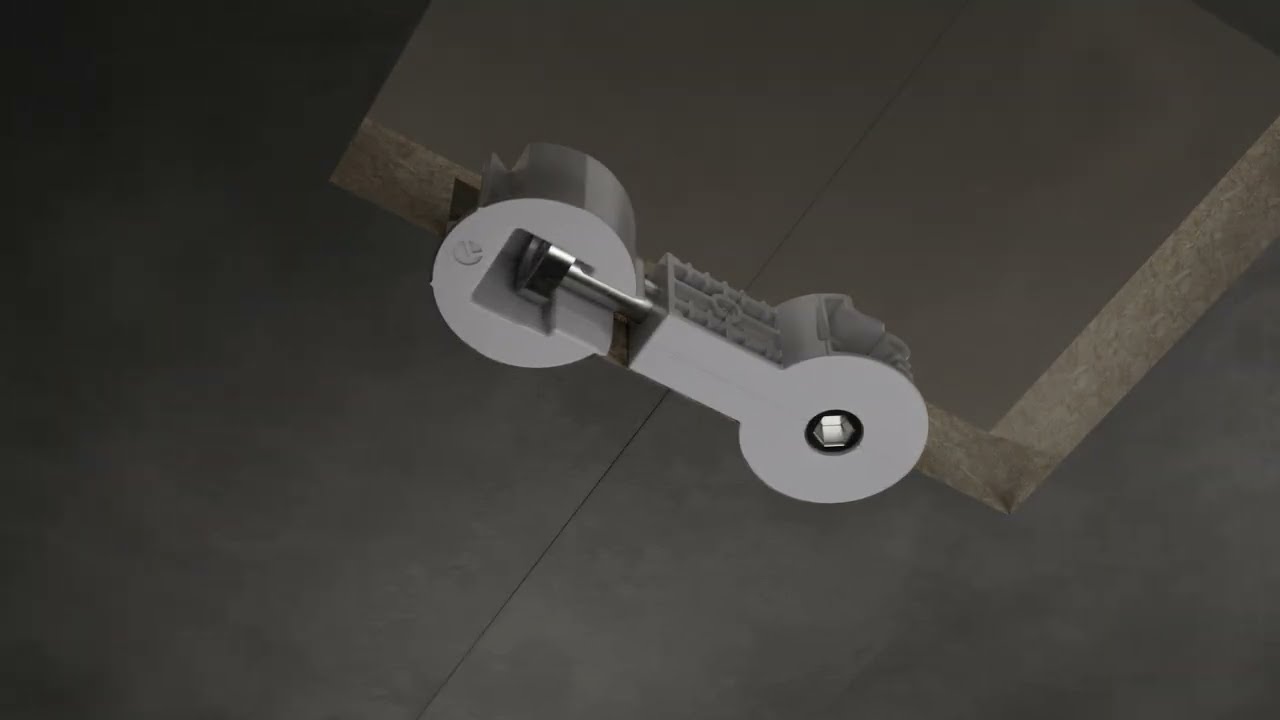

QUICK Ø30 has been conceived to join two worktops or panels together. It consists of two parts: main body with tightening dowel M8x50 or M8x150 round cap to suit the dowel head. The installation is fast and simple as the two parts don't fall when placed in position. The fastening becomes easier by using an S6mm allen wrench, or even better, a cordless driver-drill. It is suitable for worktops and panels minimum 25mm thick. The tightening is 12mm. Engineering plastic, steel and zinc alloy. In accordance with the regulation: UNI 9429/89. Tested in accordance with CATAS procedures. QUICK Ø35 has been conceived to join two worktops or panels together. It consists of two parts: main body with tightening dowel M8x64 or M8x150 round cap to suit the dowel head. The installation is fast and simple as the two parts don't fall when placed in position. The fastening becomes easier by using an S6mm allen wrench, or even better, a cordless driver-drill. It is suitable for worktops and panels minimum 25mm thick. The tightening is 6mm. Engineering plastic, steel and zinc alloy. In accordance with the regulation: UNI 9429/89. Tested in accordance with CATAS procedures.
