4 SALE - BIANCO MOD CNC - AUTOMATIC BANDSAW MACHINE FOR CUTTING METAL WWW.KARAS.CZ

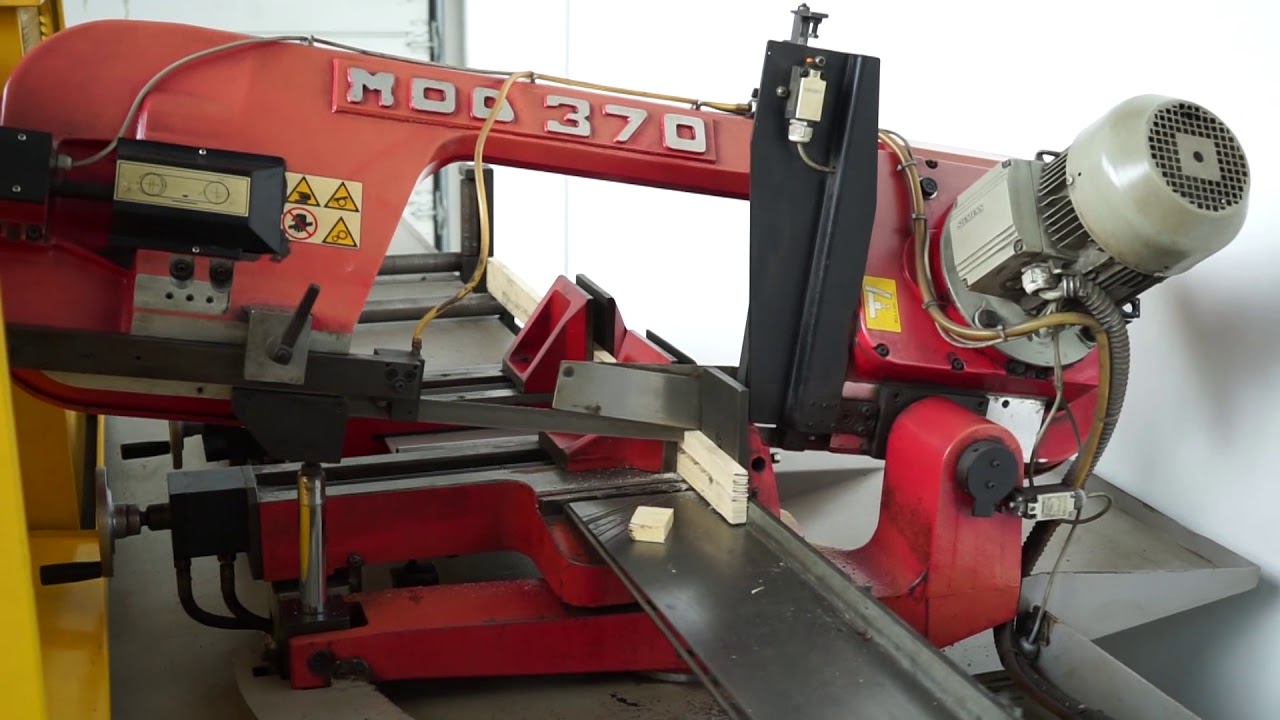

Stroje - machines: +420 603 303 157, karas@karas.cz Pilové pásy - bandsaw blades: +420 605 277 628, prodej5@karas.cz Servis, náhradní díly – Repairs, spare parts: +420 739 633 063, info@karas.cz Automatic bandsaw 370 A CUTTING CAPACITY MM 90° mm 280 240 330x240 45° mm 225 215 230x140 60° mm 140 140 140x130 Blade 3120x27x0.9 Automatic band saw machine with cutting capacities up to 60° right Automatic band saw machine with bow, vice movement and material feeding at hydraulic control. Automatic fast up/down bow movement controlled by feeler pin. Downfeed with infinitesimal adjustment. Manual setting of the cutting length trough mechanical handle, quantity of pieces to be cut and all machine functions are operated and controlled by PLC. Mechanical blade tensioning controlled by limit switch. The machine is equipped with perimetrical safety protection, double safety button for cycle start-up and low voltage electrical system according to EC rules. WE SUGGEST YOU NOT TO FEED FULL MATERIAL BIGGER THAN 150 mm Ø WHILE THE MACHINE IS OPERATING IN AUTOMATIC MODE. FEATURES Cutting capacities up to 60° right Manual setting of the cutting length trough mechanical handle Quantity of pieces to be cut and all machine functions operated and controlled by PLC Reducer unit with hardened and ground gears Mechanical blade tensioning controlled by limit switch Carriage stroke 800 mm STANDARD ACCESSORIES Discharge tray Powered cleaning brush
