Volume Bermuda "Hot For Teacher" Frame Build @ Harvester Bikes

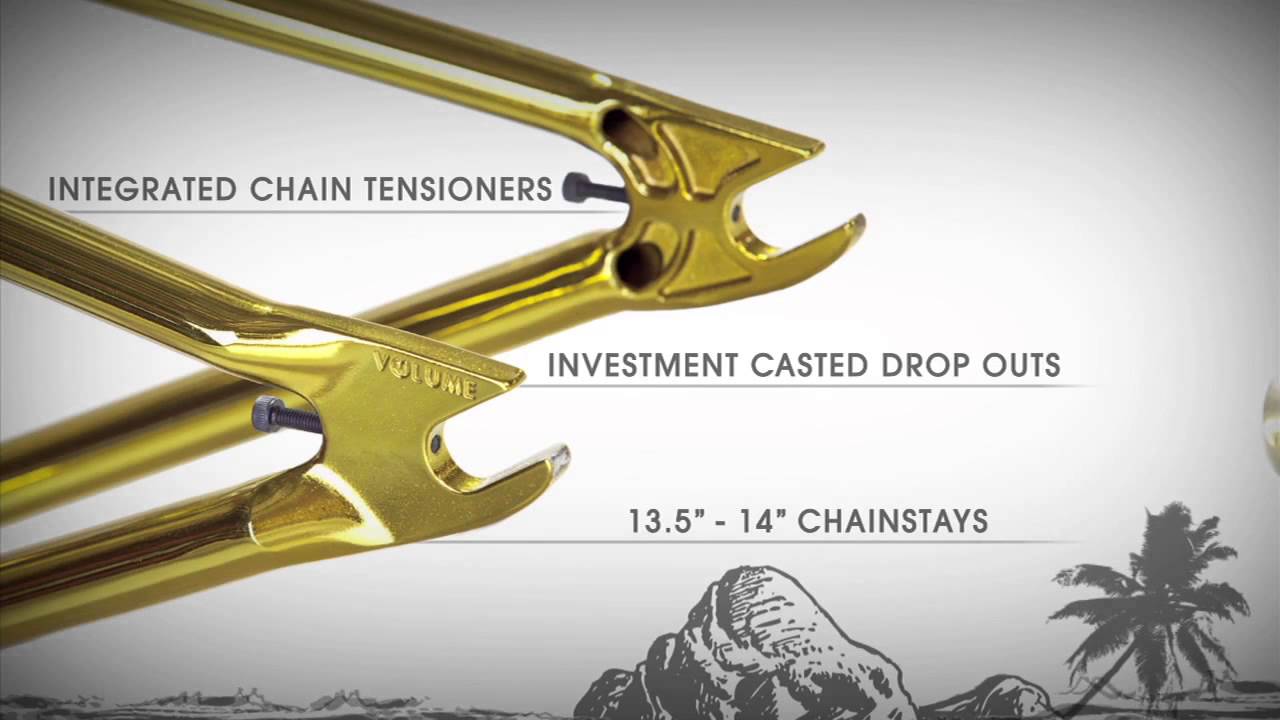

Features full 4130 CRMO heat treated tubing, removable seatstay brake mounts, and a double butted front triangle with embossed top anchor gusset, a double diamond rear end, 13.5” (slammed) chainstay, and a 75º head tube. SIZES: 20.75” & 21” // WEIGHT: 5 lbs 2 oz Top Tube: 20.75″ Chainstay: 13.5″ BB height: 11.7″ Seat Tube height: 9″ Head Tube Angle: 75° Seat Tube Angle: 71° Seat Post: 25.4 Headtube: Integrated (45°X45° Campy Spec) Brake Mounts: Removable Seatstay Mounts Dropouts: Heat Treated, 7mm thick Investment casted. Now clears hub guards and pegs of all sizes. 14mm slots Gyro Tabs: Thread-On Weight: 5 lbs 1 oz All new Bermuda V2 now with S bend chainstays for even more tire clearance and new front triangle gussets. Other main features include an investment casted 7mm drop outs with an integrated chain adjuster and clearance for pegs and hubguards even when wheel is completely slammed. Full 4130 heat-treated CRMO tubing with double butted front triangle tubes with top and bottom gussets for added strength.
