Best Suzuki DRZ 400 Luggage Cargo Rack (also for Kawasaki KLX 400)

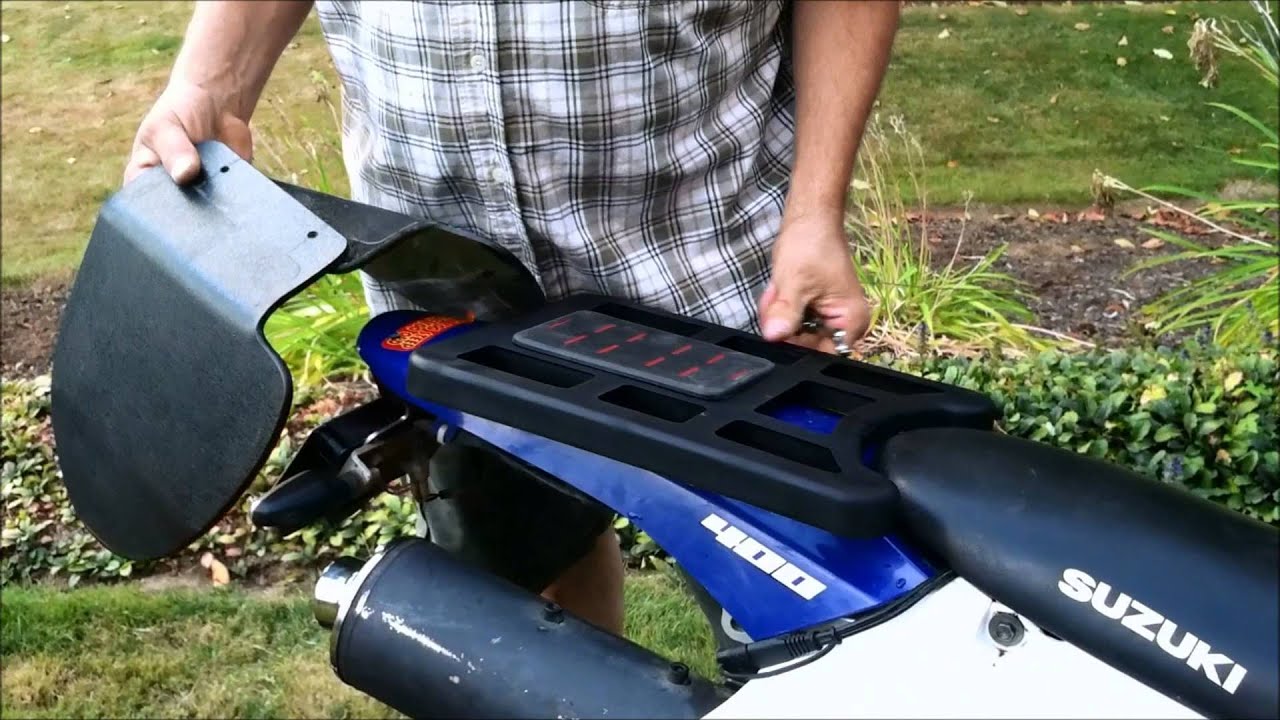

TO BUY: http://www.ImmixRacing.com - Installation instructions for the http://www.ImmixRacing.com luggage cargo rack for the Suzuki DRZ 400 SM S motorcycle. This rack is also compatible with the Kawasaki KLX 400. Following is a transcript of the video: ImmixRacing.com Suzuki DRZ 400 Luggage Rack Installation and Kawasaki KLX 400 What You Will Need: -10mm Socket -10mm Wrench -4mm Allen -Supplied Hardware for installation STEP 1: Remove the Seat Bolts First thing you want to do is remove the bolts from the Suzuki DRZ 400 seat, on either side. STEP 2: Remove Fender Bolts Second step is to remove these bolts with a 10mm Socket. It's 10mm underneath, too. When removing the fender bolts on the Suzuki DRZ 400, you want to keep these washers in place for the Suzuki DRZ 400 luggage rack to sit on. STEP 3: Slide Suzuki DRZ 400 Luggage Rack Under Seat Once you have the bolts removed from the seat and fender, you want to lift the seat up and slide the Suzuki DRZ 400 Luggage Rack in. And slide the seat back down with the rack in place. STEP 4: Install Flathead Allen Bolt Take the flathead allen bolt and make sure the holes of the Suzuki DRZ 400 luggage cargo rack are lined up. Cinch the bolts snug but not too tight. Do the same on the other side, once again, snug but not too tight. You want the rack loose enough so you can mount it on the rear fender of the Suzuki DRZ 400. STEP 5: Bolt Suzuki DRZ 400 Luggage Cargo Rack to the Sub-Frame under the Fender Take the 2 button cap bolts and slide 1 washer on both of them. Take the spacer and slide it underneath. Slide the bolt in and take the nylon locking nut underneath the fender with a 10mm wrench. You can actually hand start tightening the bolt to the nut to get it going. With the wrench and allen, tighten up the Suzuki DRZ 400 Luggage Rack to the fender. As you can see I got both sides started with the spacers lined up before I tightened everything down. STEP 6: Tighten All Mounting Points Once you've tightened the fender bolts on the Suzuki DRZ 400, you can tighten the seat bolts up all the way, getting them nice and snug. Especially so they don't rattle loose while you are out on the trail, carrying your luggage and cargo. Step 7: Enjoy Your New Cargo Rack! Features and Benefits of the Suzuki DRZ 400 Luggage Rack (also compatible with Kawasaki KLX 400) -Protects the rear taillight assembly -Tabs and holes to mount factory tool bag -Slotted accessory mounting holes -Versatile Platform and fender protection for your Suzuki DRZ 400 S/SM -Flat mounting platform and smooth welds -Large 9.5"x14" Platform -Easy installation: Less than 30 minutes -Includes all mounting hardware -Incredibly Light! Less than 5lbs. -Durable Powdercoat Finish -Innovative Slotted Accessory Mounting Holes Buy your very own custom Suzuki DRZ 400 Luggage Rack Now at www.ImmixRacing.com
