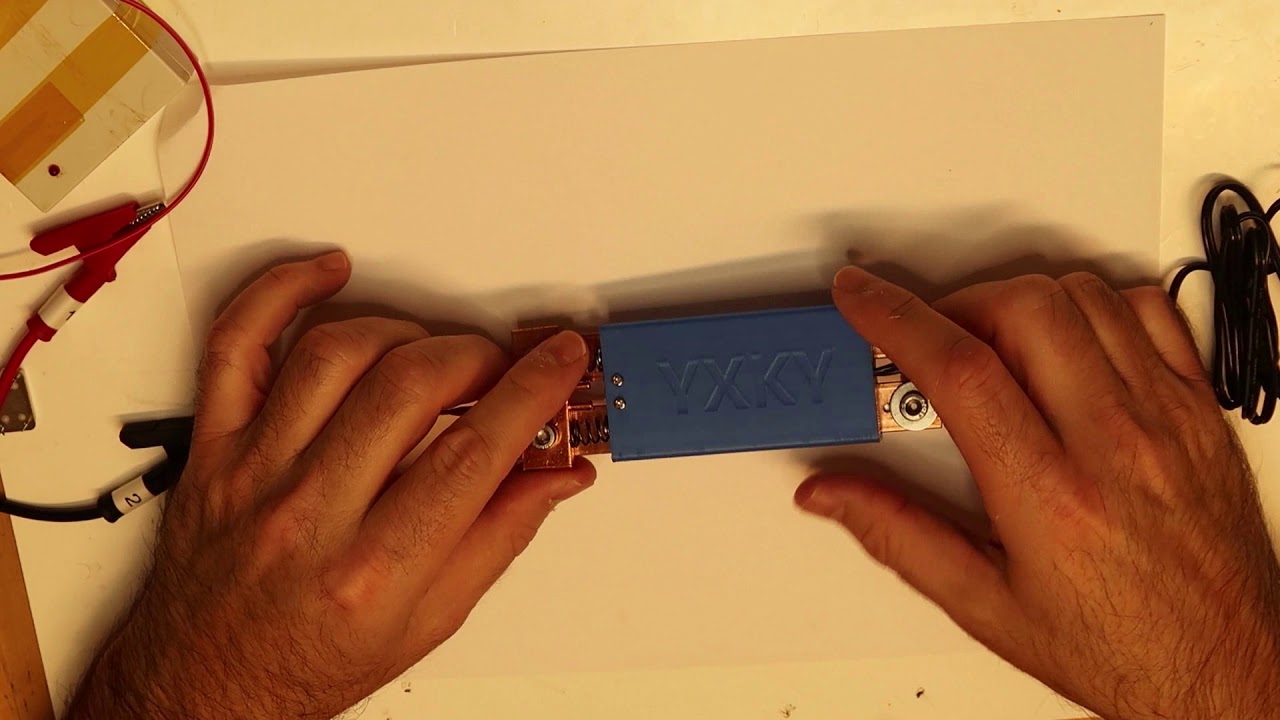

Here is my previous video on simpler version of spot welding machine for 18650 lithium ion batteries and i have explained in the video that why it fails so must watch it too.    • DIY 12V Battery Spot Welder FAIL | Why Thi...   Hello, In this video, i will show you the performance of a Chinese spot welding machine which is suitable for lithium ion and similar batteries. This circuit is very cheap and easily available on many online stores. The circuit is very easy to assemble and can be powered on using any 12 volts battery. This circuit allows you to select from five different configurations depending upon the thickness of the nickel strip you will be using. If you have further questions you can put it in the comment box and i will be happy to reply. Features: *1. The welding process is based on the principle of high current and high temperature, rapidly melting part of the nickel sheet, and cooling. *2. High speed single chip design, intelligent program, real-time display of battery voltage and high visibility of spots welding strength. *3. Adopts 8pcs MOS tubes, the peaks current is up to 2400A, support 0.1-0.2mm nickel welding sheets and the welding points are more solid and beautiful. *4. High-precise power output design with 99 gears output power is adjustable for more accurate welding, and is suitable for continuous welding of thousands of points on nickel sheet and nickel-plate sheet. *5. With the 3 bit digital-tube real-time gear display function, which not only can display the current gear, but also can detects the battery voltage, and enhances the pleasure of the spots welding. *6. When in standby, the digital tube will alternately display the gear and the supplying voltage once every second. When the display reads: d + two digits, means it is under gear display; when the display reads: three digits, such as 12.6, means that the voltage of the power supply is: 12.6V voltage. *7. Three working modes design, you can switch between general power mode, strengthen power mode and super strong power mode. *8. Two spots welding delay times are adjustable design, you can set 0s or 1s delay time according to the working demands. *9. It is both spots-welder and voltmeter, built-in 12-bit high-precise ADC, the voltage measurement accuracy is up to 0.01 voltage, with 8-24V test ranges, automatic voltage display when connected to the power supply. *10. Flexible spots welding pen, 12AWG wire consists of multiple strands of high-temperature wire with high torsional resistance and more sensitive operation. *11. Thick pure copper welding pen design with alumina copper spots welding needles to ensure high current passing capacity and durability. *12. The cold pressing process can make large contact areas with pure copper joints to reduce internal resistance. You can choose one of the following sources as your working power source: 1. Lead acid Battery: 2*20Ah electro mobile battery, 36-405H new car starts battery. 2. Model Battery: 3S 4000mah 35C, 3S 5000mah 25C, 3S 8000mah 20C. 3. Car Starting Supplies: 11.5-14.8V 36-60AH, the internal resistance should ＞ 2.5 milliohm and ＜7 milliohm. 4. Self-assembling Battery: 11.5-14.8V, total internal resistance ＜7 milliohm. Description: *1. Name: Spots Welding Machine Set *2. Material: printed circuit board *3. Working voltage: 8-24V *4. Working current: ＜20mAh *5. Peaks welding current: 2400A max *6. Standby power consumption: ＜0.5mAh *7. Welding thickness: 0.1-0.2mm *8. Limit temperature: 175℃ *9. Item size: 89 * 54mm / 3.50 * 2.13in *10. Item weight: 100g / 3.53ounce Packing List: 1 * Control Board 2 * Input Cable 1 Pair * Welding Pen 2 * Heat Shrink Tubing 4 * Screw Set 1 * 5m Nickel Sheet If you have enjoyed this video, then please subscribe to my channel where i will be uploading more interesting videos related to electronics and Radio link. Also watch my other interesting videos on YouTube: 1. 18650 Li-ion Battery Capacity tester for lithium ion batteries using ZB2L3 Module | 4k video | HW586    • How to make lithium ion battery capacity t...   2. Spot Welding Machine for 18650 lithium ion cell using 12v Battery Failed | DIY | Homemade    • DIY 12V Battery Spot Welder FAIL | Why Thi...   3. How to make a 20 Amp LM2596 DC-DC Buck Converter | Step down Converter | MOSFET |    • How to Increase Output Power of LM2596 Buc...   4. How to make 12v Auto Cut Off Battery Charger | Power Supply | Charge Controller | Boost Converter    • DIY 12V Auto Cutoff Battery Charger Using ...   Spot welder Spot welding Spot welder machine Spot welding machine 12v battery High current High voltage High power 18650 battery lithium ion battery 18650 lithium ion battery li-ion battery
