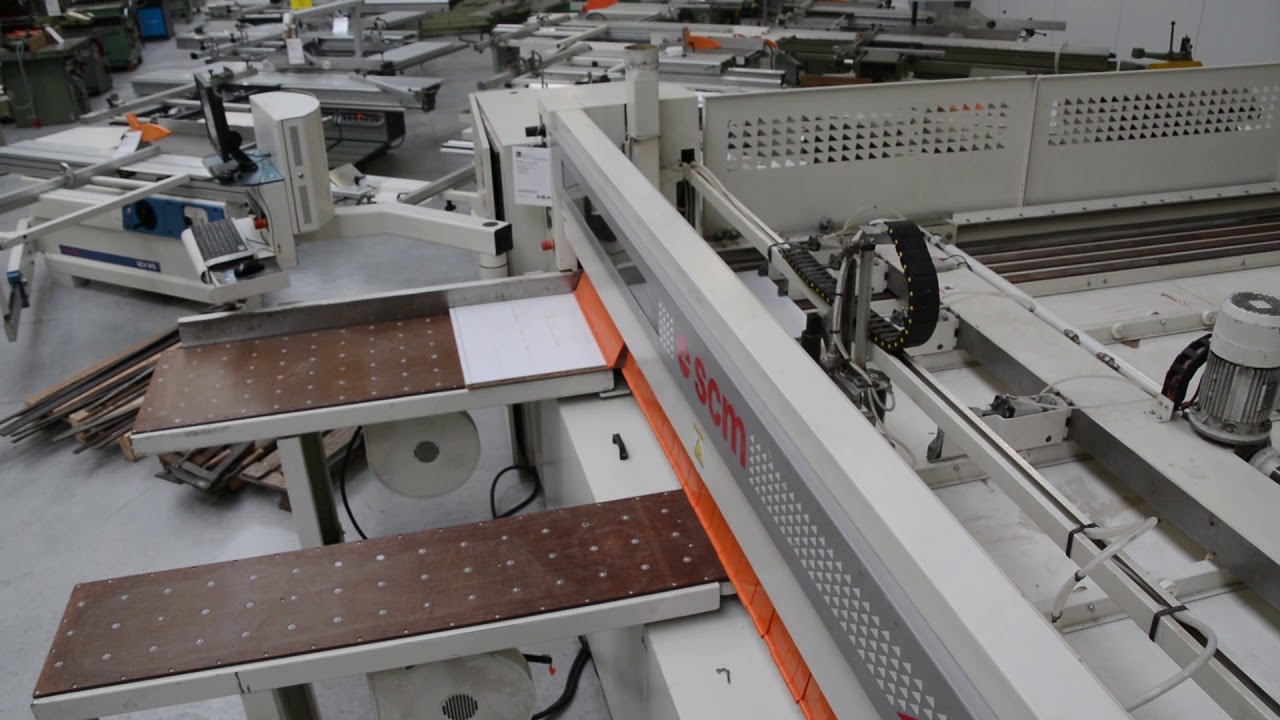

SCMI SIGMA 107 IMPACT FRONT LOAD AUTOMATIC PANEL SAW

SCMI SIGMA 107 IMPACT FRONT LOAD, AUTOMATIC PANEL SAW https://www.exfactoryauctions.com/Det... Specifications: 149.6" (3,800 mm) Max. rip cut cap., 4.2" (107 mm) saw blade projection using a 380 mm dia. blade 12 HP (9 kW) main saw motor, 4,400 RPM main blade speed, 2 HP (1.5 kW) scoring motor, 7,650 RPM score blade speed. Saw Carriage: Variable saw carriage speed from 20 - 98 FPM (6 - 30 MPM), return speed of 98 FPM (30 MPM); Automatic saw carriage lubrication, balanced on hardened cylindrical guides, external score saw adjustment, THK guides for vertical saw movement. Pusher Fence: Programmable rear fence with rack & pinion movement, 124 FPM (38 MPM) forward speed, 124 FPM (38 MPM) return speed; (8) Material gripper clamps, grippers fit into a slotted pressure beam for positive material control during the final cut Operator & Machine Control: PC Front-end with SCM "WinCUT" real-time operation software with onboard optimizer; 64 MB RAM, 15" color super VGA monitor, on-screen diagnostics & production reports (2) Serial ports & (1) parallel port, spacing available for networking cards. Complete with: Rear support rails with rollers; (1) front Bakelite-coated air table 79" x 20" (2,007 x 508 mm) & (2) Bakelite-coated air tables 59" x 20" (1,499 x 508 mm) Automatic crosscut side aligner out to 72.7" (1,848 mm), plastic safety sectors & emergency bar surround cutting area, service kit & manuals, triple dust collector outlet. Note, the air compressor is not included.
