Amplifier Clip Indicator With Active, Protect, Signal and Power LEDs

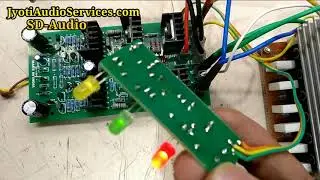

Friends, in this video lets make a Clip, signal, active, protect and power indicator board suitable for amplifier front panel I got the circuit from internet and the link is given below. The circuit has clip signal and power LEDs. But the LEDs for active and protect should be connected from the speaker protection circuit. According to the circuit the positive supply rail of the main power supply of the amplifier board is to be connected to the Indicator board. Also the ground and the speaker lines are to be connected. So Short circuit and damage to the amplifier board may occur if You make wrong connections. Always double check the connections and make sure they are right. You can also add series resistors (1k) in the supply and speaker lines for protection. PDF download link : https://drive.google.com/drive/folder... Connection diagram and circuit : https://drive.google.com/drive/folder...
