RF Remote Control Car using HT 12 Encoder/Decoder IC

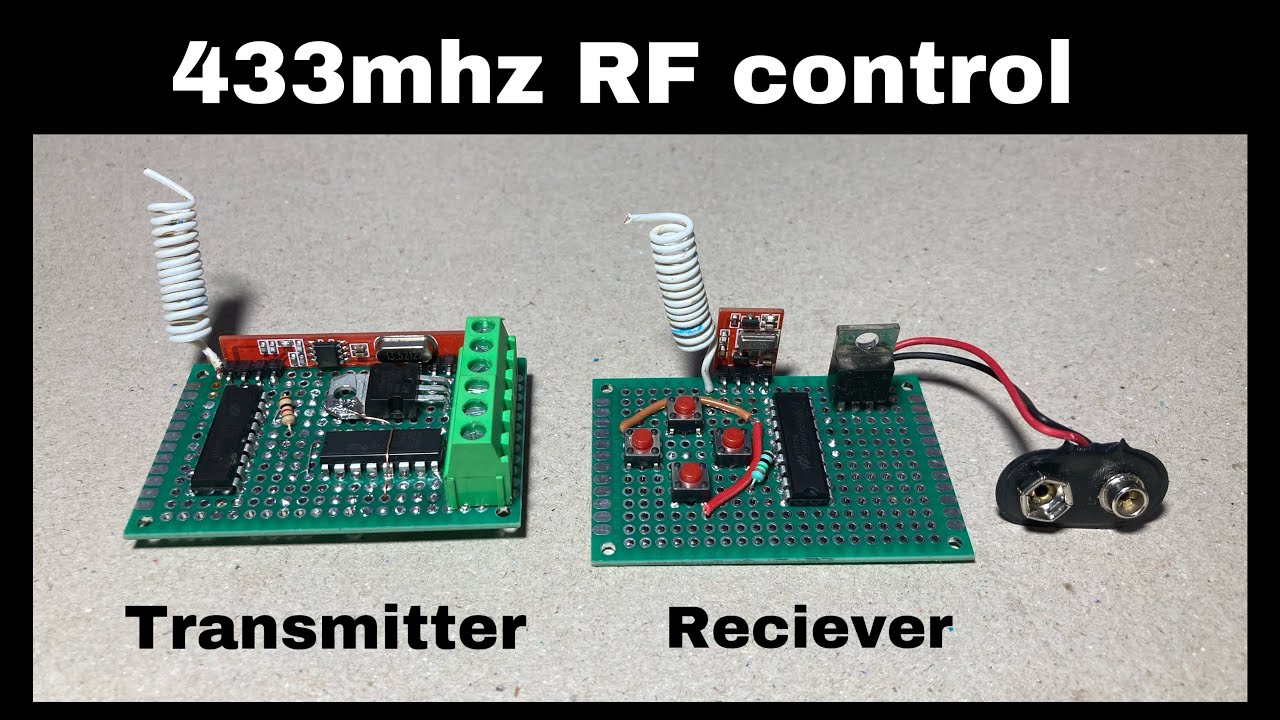

Final result - at the END OF VIDEO. 14:22 This is a project based on the concept of Embedded Systems. One encoder and one decoder IC are communicating with each other using Radio Frequency Module (Tx & Rx) in frequency of 433 Mhz. Although its only "Simplex" (One directional) communication but the project car purely works only on the concept of encoding and decoding. WORKING:- The Encoder (HT12 E) IC generates 12 bits of parallel data signal and transmits it serially with the help of RF Tx. Module. Then the RF Rx. Module receives the serial data and the decoder IC (HT12 D) decodes the data and acts according to received data. 4 data bits are sent at a time along with 8 Address data bits. These address bits are required to recognize the original Receiving Decoder ckt. So, the data bits are received only when the addres pin data is matched. This way the same freq. data will not interfere with others unless the address bits are same. For every data bit any one of the motor spins in a particular direction. Hence giving combination of data bits makes the car move in desired direction. Some observation Readings : 1:11 Upgrades : 11:33 Final result: 14:18 lol moment: 15:43 (Gayi😨) Motivation & Inspiration : Deepak Dhyani sir. Project reference :    • How To Make Simple RF Remote Control For R...   For short project reels, follow on Instagram :   / ramesh_bnthl33   #projects #rfmodule #electronics #diy #engineer #engineering #encoder #decoder #circuit
