TOS VARNSDORF WH63

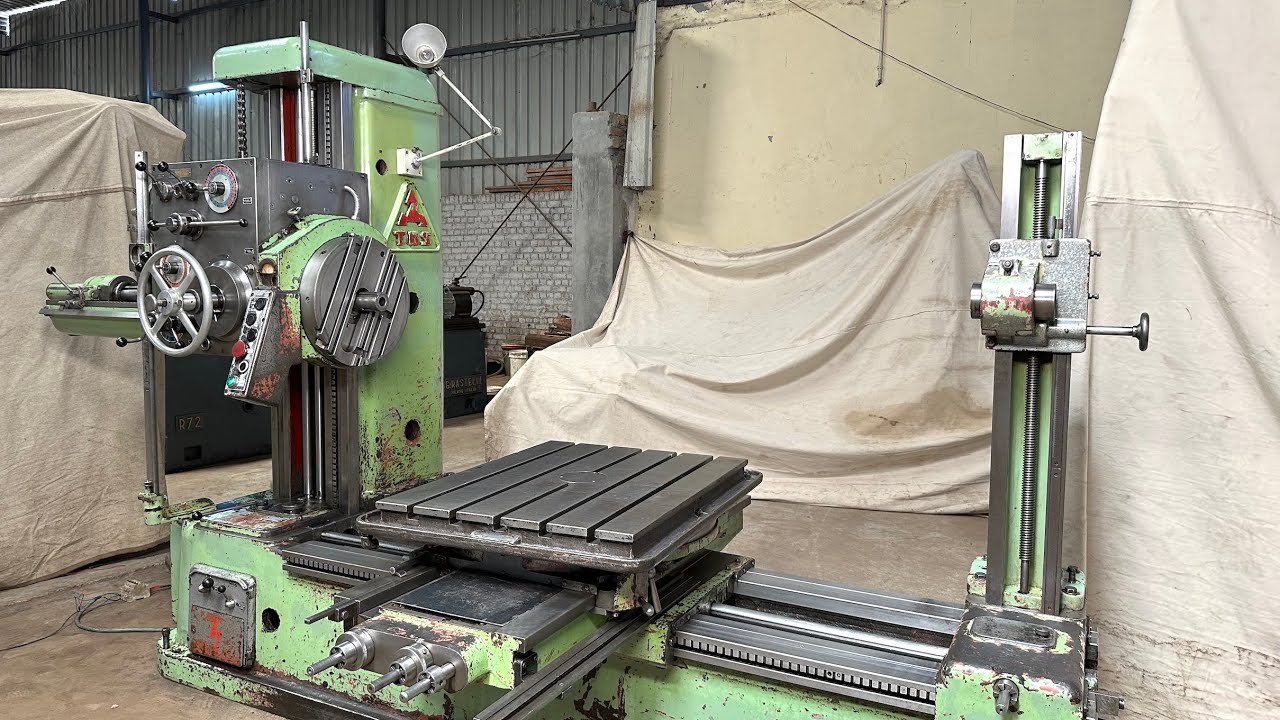

1 piece used Horizontal- table type boring machine in avery good condition Make: TOS VARNSDORF Model: WH63/80 Year of manufacturing: 1976 Machine- No: 512566 Technical Datan: Diameter of the spindle: 63 mm Range of speeds: 18- 1.800 U/min Nose taper: MK4 Measuring system: Optical Travels: X- Axis (Table): 1.000 mm Y- Axis (Table): 1.000 mm Z- Axis (Spindle head): 710 mm W- Axis (Spindel): 500 mm Rotary table: 800- 890 mm Capacity of the rotary table: 2.000 kg Capacity of the motor: 7,3 kW Power supply: 380 V Dimensions of the table (LxWxH): 4.200 x 2.200 x 2.430 mm Equipped with: Tailstock Face plate Several tools and holders Machine- Documentation
