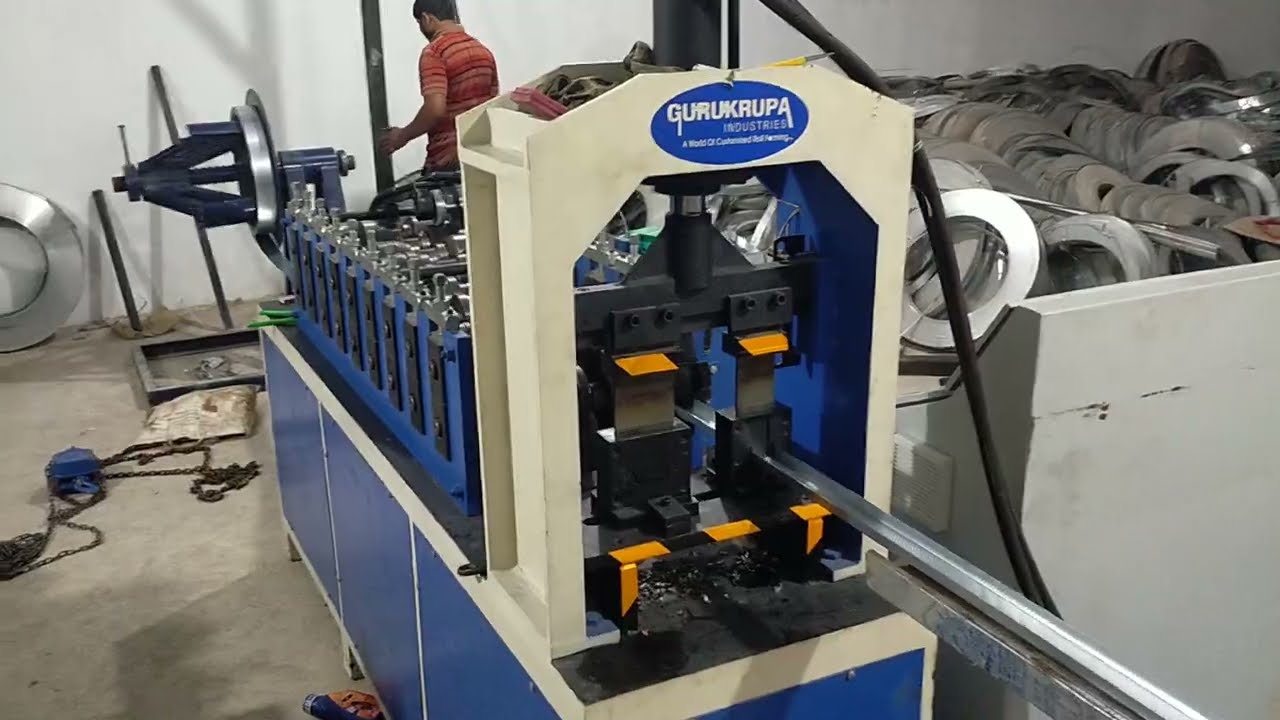

Pop Channel Patti Machine - Pop Bottom Patti Roll Forming Machine

Web- http://www.rollforming-machine.net/ Pop Channel Patti Machine, Pop Bottom Patti Roll Forming Machine, Pop Intersection Roll Forming Machine, Pop Section Making Machine, Pop False Ceiling Channel Roll Forming Machine, Ceiling Section Roll Forming Machine, Gypsum Channel Roll Forming Machine, Pop Bottom Patti Roll Forming Machine, Pop Channel Roll Forming Machine. Manufacturer of Pop Channel Roll Forming Machine, Pop Section Making Machine, Pop Channel Machine, Pop Bottom Patti Machine, Pop Ultra Section Roll Forming Machine, Gypsum Channel Roll Forming Machine, Gypsum Perimeter Roll Forming Machine, Gypsum Ultra Channel Roll Forming Machine, Gypsum Ceiling Section Making Machine, False Ceiling Roll Forming Machine, Ceiling Channel Roll Forming Machine, Ceiling Channel Making Machine, False Ceiling Machine, Furring Channel Making Machine, Pop Cross Section Roll Forming Machine, Pop Inter section Roll Forming Machine. D coiler 200 Kg cap. Entry Gate with C) Roll Forming Machine with 8 stations, 1 Gear Boxes & 5 H.P. electrical Control Panel semi auto Cutting Unit (Hydro.) Technical Specifications Maximum sheet width that can be formed : 500 mm Maximum sheet thickness in CRCA Strips that can be formed : 0.5 mm Horizontal distance between shafts : 165mm Number of forming stations : 8 nos. Total HP for Line : 7 Speed of the machine : 10 -14 mt / mint Size of machine : 1600 x 1200 x 1100 mm Mandrel Uncoiler Coil weight : 200 KG Max Coil width : 200 MM Coil bore : 450 MM min, 510 MM max dia. Mandrel movement : Manually adjusted Back Tension : Manually adjusted Entry Gate Entry gate will be provided for movement of sheet to roll former. Main Base the main base is MS fabricated structure and adequately ribbed to minimize the distortion. It is accurately machined on top and bottom surfaces the threaded holes are made on the bed for positioning the stands. Mill stands (Station) The stands are mounted on the bed of the machine the line alignment can be easily done due to guide ways arranged on the bed of the machine. Each forming head consists of a fixed housing and sliding type out board housing. The mill stands will be arranged to locate shafts mounted on taper bearings. For the top shafts the bearings are housed in the cartridge type bearing blocks. The bottom shaft bearings are located in the bored machined in the housings. The bottom arbors are fixed in position whereas the top arbors along with cartridge blocks could be raised or lowered in vertical guides machined in housings.
