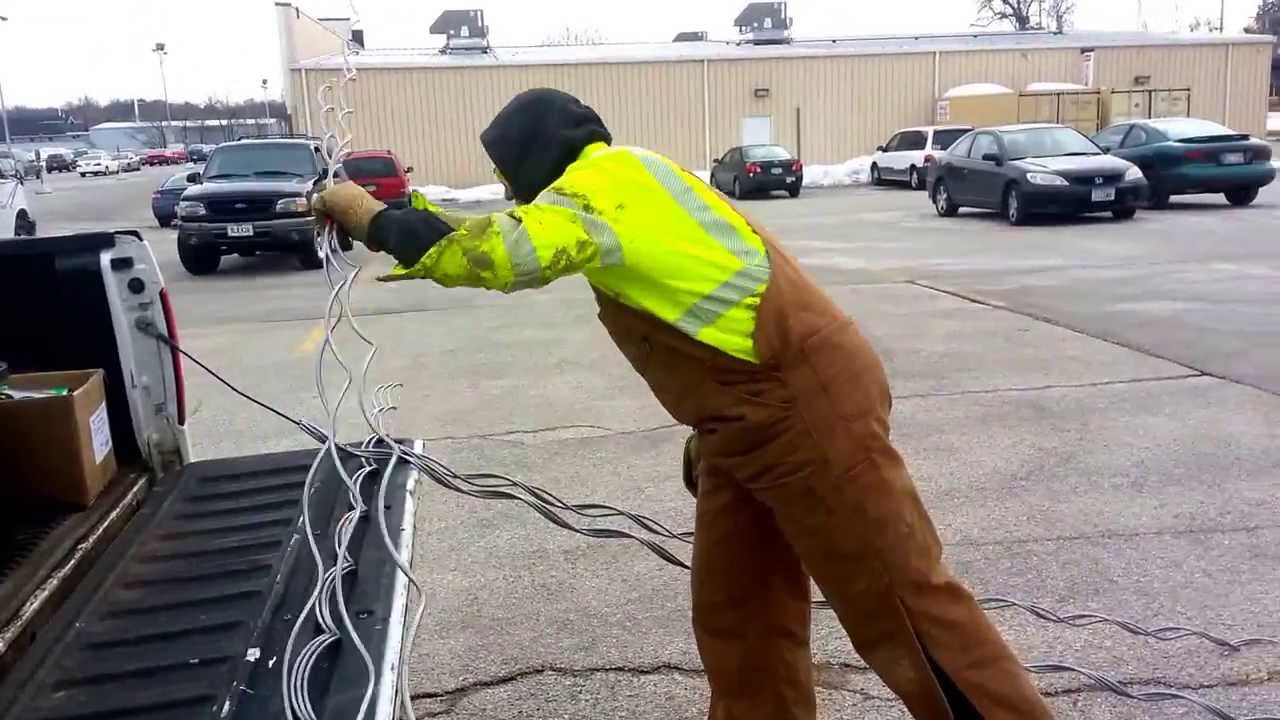

THERMOLIGN® Suspension - Installation Overview

The THERMOLIGN Suspension is specifically designed for applications on aluminum based high temperature conductors that will be operated at continuous temperatures ABOVE 200° C • Multi-layer design for maximum mechanical performance and maximum heat dissipation • Minimal heat transferred to mating hardware and insulators • Cushioned insert surrounding conductor for superior protection against wind and ice induced loadings at support structures • No detrimental heat transfer to the Cushioned insert • Thermal Rating (Continuous) 250°C • Available with PARROT-BILL Rod ends for EHV (345 KV and above) applications. • Vertical Strength: 25,000# (111kN) unless otherwise noted. • Slip Load: Approximately 20% of the conductor RBS initially (expected to increase after time in service). • Line Angle: Maximum of 30° for single suspension up to 60° for double suspension with yoke plate.
